Bicycle Indicator
The electronic turn signal unit for a bicycle described here is made of cheap parts and is a good alternative to many versions you can buy in stores. It has a completely different way of…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Bicycle Indicator is a electronics project. The electronic turn signal unit for a bicycle described here is made of cheap parts and is a good alternative to many versions you can buy in stores. It has a completely different way of…
- Source pages
- 312-314
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
T1, T2, T3, T4 - transistor stages identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1, T2, T3, T4 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2, LED3, LED4, LED5, LED6 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2, LED3, LED4, LED5, LED6 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Bicycle Indicator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

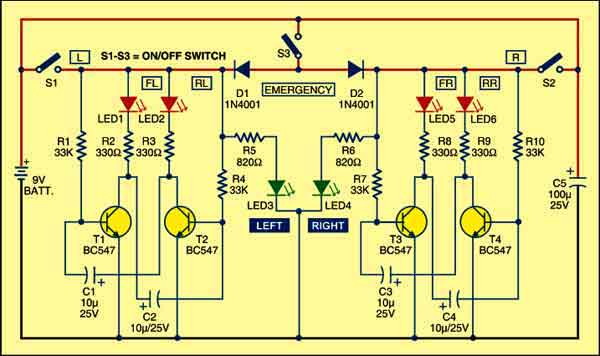

Project build noteThe electronic turn signal unit for a bicycle described here is made of cheap parts and is a good alternative to many versions you can buy in stores. It has a completely different way of working and is easy to use. The circuit runs on a 9V PP3 (alkaline- type) battery and is made up of four low-power transistors and a few passive components that make up two independent free-running oscillators. Both square-wave oscillators (one built around T1 and T2 and the other around T3 and T4) drive four red LEDs (LED1 and LED2, and LED5 and LED6) that blink to show which way to turn.
More steady-glow LEDs (LED3 and LED4) are added to show if the device is working. Circuit operation How the circuit works is easy to understand. When switch S1 is turned on, the battery's DC power is sent to the oscillator circuit, which is made up of transistors T1 and T2. Now, the oscillator on the left side starts to oscillate, and the front left (FL) and rear left (RL) lights start to blink at a rate set by timing capacitors C1 and C2. The amount of current that LEDs can use is limited by resistors R2 and R3 (LED1 and LED2). At the same time, the green LED (LED3) begins to light up to show the status of the current direction. When switch S2 is turned on, the same thing happens in the next oscillator circuit, which is made up of transistors T3 and T4. The front right (FR) and rear right (RR) indicators start blinking, and the green LED (LED4) lights up to show the direction. Switch S3 is used to show that there is an emergency. When it is in the "on" position, diodes D1 and D2 give power to both oscillators. So, LED1 through LED6 all start working at the same time. In this state, all of the LED’s flash, except for LED3 and LED4, which stay lit.
Construction & testing

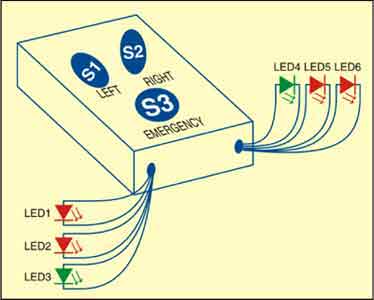

Project build noteAfter putting the circuit together on a general-purpose printed circuit board (PCB), put it in a box like the one in Fig. 2 and put it on the handlebar of the bike, preferably in the middle. Connect switch S1 on the left side of the master unit, switch S2 on the right side, and emergency switch S3 in the middle. Now, put this master unit on top of the handle bar and use flexible wires to connect it to the other parts. Fig. 2: Suggested enclosure of the master unit Connect the front indicators (LED1 and LED5) to the left and right sides of the handle. The rear indicators (LED2 and LED6) can be mounted in the bicycle's carrier frame. You can use the symbol to show which way to go.
