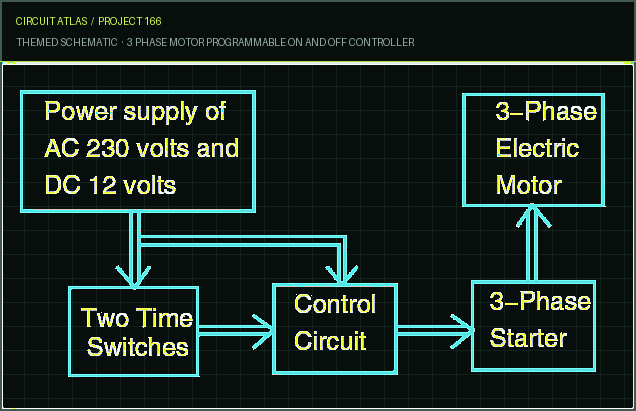

Project build noteWith a programmable time, switch, you can make a 3-phase motor controller that automatically turns on and off. In this case, you can only set up to eight-time durations. The system has two programmable time switches that can be used to set when the motor will start and stop, as well as two control circuits that are connected to the start and stop switches of the 3-phase motor's starter. Fig. 1 shows a block diagram of the system. Fig. 1: Block diagram of the 3-phase motor programmable controller Let's say that both time switches are set to the same time. So, if 8 a.m. is set as the start time for timer1 ON mode, 8.01 a.m. will be set as the start time for timer1 OFF mode in the start time switch. And if the stop time is set to, say, 9 AM for the timer2 ON mode, then the stop time switch will be set to 9.01 AM for the timer2 OFF mode. When it's 8 a.m., the start time switch connects the primary of transformer X1 to 230V AC. The power supply's output is connected to IC1's reset pin 4. R4 and C3 are parts that turn on by themselves. The monostable's output at pin 3 is high for a time period of 1.1R5C4, which is almost five seconds. 3 phase motor programmable controller circuit

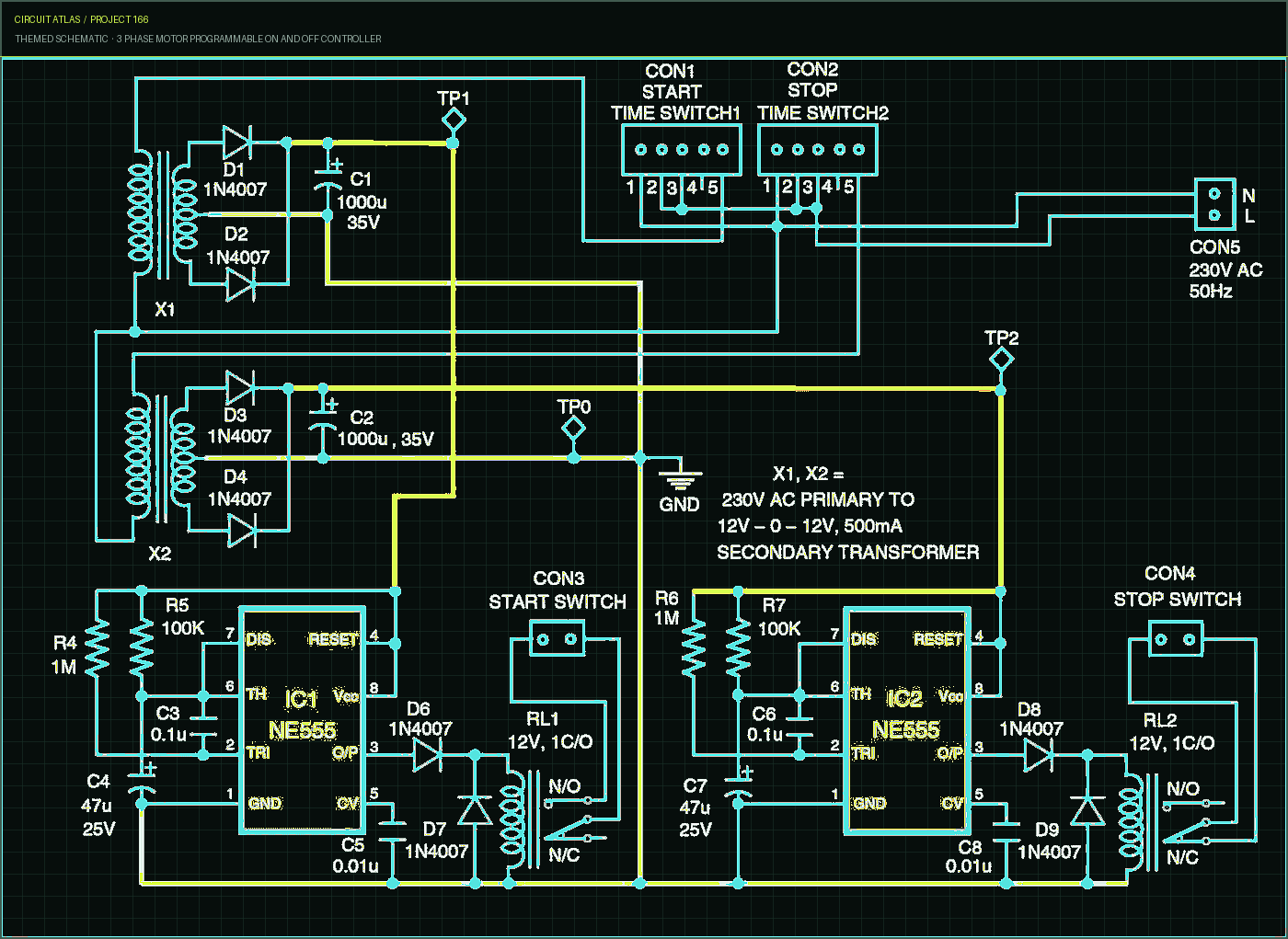

Fig. 2: Circuit diagram of the 3-phase motor programmable controller As long as pin 3 of IC1 is high, relay RL1 is on for five seconds. This shorts the start switch, which lets the 3-phase supply to the motor go for longer. This is almost the same as pressing the 3-phase motor starter's start switch for five seconds. When it's 9 AM, the second time switch (stop switch) sends 230V AC to the primary of transformer X2 from the secondary. Again, 12V DC is sent to the second monostable circuit with relay RL2 by using a full-wave rectifier and filter circuit. The 3-phase motor's stop switch is connected in series with the relay's normally-closed (N/C) terminal. So, the relay stops the motor by breaking the circuit. This is an example of a time span from 8 a.m. to 9 a.m. So, the 3-phase electric motor can be set to turn on and off at one of up to eight different times. There is a way to choose which days of the week the controller will work. It can be set to work Monday through Friday, Monday through Saturday, all seven days of the week, or just one day of the week. This system can be used for many things, like turning on a water pump in a multi-story commercial building only five or six days a week to fill tanks on the roof. It can also be helpful for farmers, factories, or train stations that use 3-phase motors.
Circuit operation As shown in Fig. 2, two power supply circuits are built around transformers X1 and X2 and the other parts that go with them. The setup gives 12V DC to two control circuits built around two monostable 555 timers, IC1 and IC2. Two TM-619-2 time switches made by Frontier are used in this system. These use 230V AC at 50Hz to work. Each switch has a 16A contact single changeover relay built in. It has an LCD screen with buttons like CLOCK, TIMER, DAY, HOUR, MIN, and MANUAL. With these buttons, you can set a real-time clock and program different time lengths. The time switch is a digital device that can be programmed. It has a digital real-time clock and can be set for up to eight different time periods. The times can be for one day, every other day, Monday through Friday, Monday through Saturday, or Monday through Sunday.
