Fridge Door Alarm Circuit using 555 and LDR
The purpose of the circuit can be gleaned from its very designation. If the door of the refrigerator is left open for an extended period of time, this circuit will sound the alarm. The te…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Fridge Door Alarm Circuit using 555 and LDR is a electronics project. The purpose of the circuit can be gleaned from its very designation. If the door of the refrigerator is left open for an extended period of time, this circuit will sound the alarm. The te…
- Source pages
- 314-317
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
timer IC - two of them
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for timer IC - two of them; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
Putting the wires together
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Putting the wires together; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
PASSIVE LEARNING VIEW1N4007 - diode
A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.
What it does hereIts exact value and tolerance determine how the surrounding stage behaves.
Buy / compare this part ↗Advantages
- Simple and dependable
- Low cost
- Easy to measure before installation
Limitations
- A wrong value can stop or damage the circuit
- Ratings must not be exceeded
- Polarized parts require correct orientation
Handling
- Measure unclear values
- Observe capacitor polarity
- Avoid overheating leads while soldering
Specifications to verify
- Use the exact model, value, package, and rating listed for 1N4007 - diode; similar-looking parts are not always interchangeable.
- Confirm value, tolerance, power or voltage rating, polarity, and package size.
What's this?Image, role, pros, cons, handling & specifications
PASSIVE LEARNING VIEW1N4001 - diode
A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.
What it does hereIts exact value and tolerance determine how the surrounding stage behaves.
Buy / compare this part ↗Advantages
- Simple and dependable
- Low cost
- Easy to measure before installation
Limitations
- A wrong value can stop or damage the circuit
- Ratings must not be exceeded
- Polarized parts require correct orientation
Handling
- Measure unclear values
- Observe capacitor polarity
- Avoid overheating leads while soldering
Specifications to verify
- Use the exact model, value, package, and rating listed for 1N4001 - diode; similar-looking parts are not always interchangeable.
- Confirm value, tolerance, power or voltage rating, polarity, and package size.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Fridge Door Alarm Circuit using 555 and LDR: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteThe purpose of the circuit can be gleaned from its very designation. If the door of the refrigerator is left open for an extended period of time, this circuit will sound the alarm. The temperature inside the cabin will rise if the door to the refrigerator is left open for an extended period of time. The thermostat will detect the increase in temperature and work to bring down the interior temperature of the cabin. The temperature of the system will be kept as stable as possible by it at all times. As a result of the compressor having to operate continually in order to remove the heat from the cabin, the power consumption of the receptacle will grow. Additionally, continued
use under these conditions would shorten the life of the compressor, and it would most likely fail to perform properly. As a result, this Fridge Door Alarm Circuit is an excellent option that is designed to notify to the user that the door has been left open for an extended period of time. Additionally, we have the ability to specify a variety of pre-set times after which the auditory notification must be provided. This is accomplished through the utilization of the adaptable 555 timer IC operating in the astable multivibrator mode in conjunction with LDR. After a predetermined amount of time, the buzzers will begin to sound an alarm. This is because the LDR detects when the door of the refrigerator is opened as soon as we do, which causes the 555 timers to begin the countdown.
Required Components
Project build note555 timer IC - two of them 5mm LDR – 1No. Buzzer – 1No. Diode (1N4007 or 1N4001) – 1No. Capacitor, 47uF(Electrolytic) – 1No. Capacitor, 0.1uF(Ceramic) – 1No. Resistors (10k Ὠ - 1; 470k Ὠ -1; 150k Ὠ -2; 100 Ὠ -1) Breadboard Putting the wires together

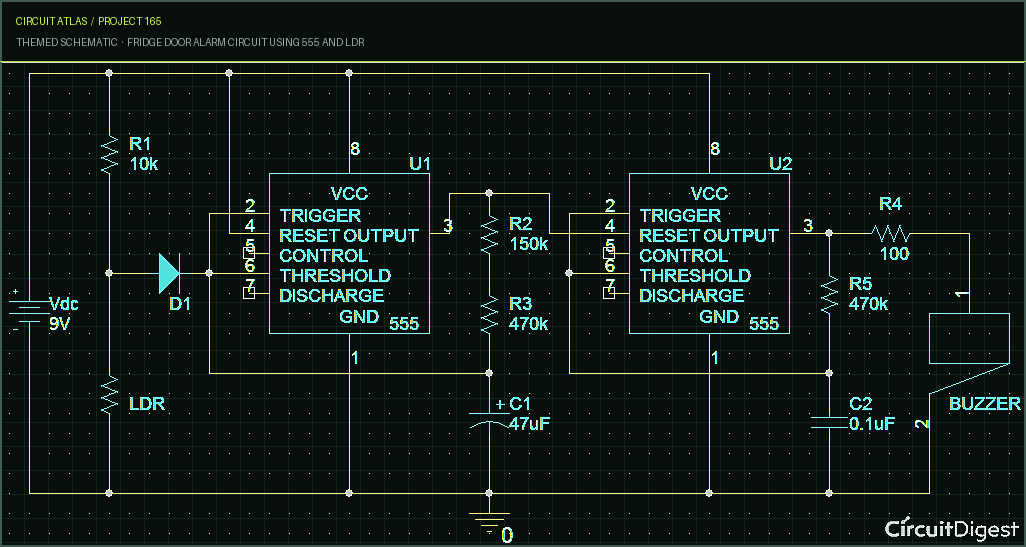

Diagram of the Refrigerator Door Alarm Circuit
Project build noteA single 9V battery serves as the source of power for the entire circuit. It is dark inside the refrigerator when the door is closed, and the resistance of the LDR is very close to 1M, according to the datasheet. The output voltage of the potential divider is observed across the capacitor; however, the capacitor continues to have a charged state (Voltage greater than 2/3Vcc), which results in a LOW output voltage. When we open the refrigerator, light shines on the LDR; this causes the resistance of the LDR to decrease, which in turn triggers the capacitor to discharge; the amount of time it takes for this particular RC combination is thirty seconds. After this (when the voltage is less than 2/3Vcc), the output begins to oscillate at a particular frequency, and the output level rises to a HIGH value. Once more, the capacitor is allowed to charge until it reaches a certain point, after which the process of discharging the capacitor continues. This process will continue until the LDR resistance becomes high, which will occur when there is insufficient light (door is closed). Because of this, the second 555 timer begins to oscillate, and the output alternates between HIGH and LOW. This causes the buzzer that is connected to the output to beep in a pattern, which is the combinational cause of the oscillations that are produced by the first timer and the oscillations produced by the second timer. In the event that the first timer output is in the HIGH state, the second timer master reset will take place. As a result, the voltage on the capacitor C2 rises (to a level higher than 2/3Vcc), and the output level drops. The capacitor begins to discharge in a short period of time, which causes the output to go HIGH (the voltage drops below 2/3 of Vcc). As
a result, the sound produced by the buzzer that is attached to the output is a pulsed beep.
You built Fridge Door Alarm Circuit using 555 and LDR.
