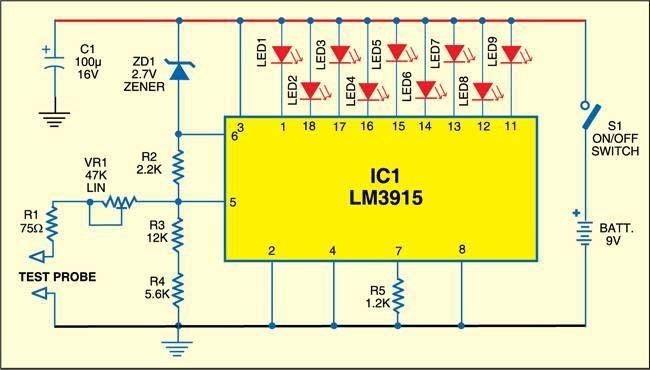

Project build noteYou can determine whether the soil is dry or wet by using this digital soil moisture tester, which is both simple and convenient to use. It measures the amount of moisture in the soil. Additionally, it can be utilized to determine if cotton, wool, or woven fibers are dry or damp. The common display driver integrated circuit (IC) LM3915 is responsible for lighting the tester's array of LEDs (IC1). After inserting both of the test probes into the soil, the display panel will indicate how much conductance, which is the reverse of resistance, there is between the two of them. The readings of soil resistance, which range from 0 to approximately 5 kilo- ohms, tell the tester whether the soil is dry or moist, and LED1 through LED9 light up to display this information in dot mode. When there is a significant increase in conductance, the first LED (LED1) will illuminate (resistance is almost nil). The resistivity of soil is typically somewhere in the range of 0 to 5 kilo- ohms most of the time. In order to calibrate, therefore, connect a 5-kilohm

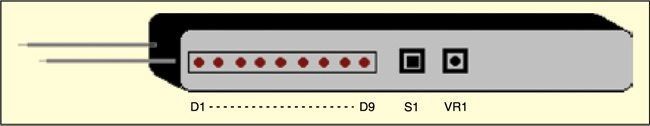

potmeter in series with the two probes. Adjust the trimpot VR1 so that the resistance is zero (minimum). It is expected that LED1 will shine. In the same manner, adjust the resistance such that it is 5 kiloburs (maximum). At this point, LED9 ought to light up. Building and testing Assemble the components of the circuit on a multi-use printed circuit board. After the tester has been constructed, it and the battery should be stored in a compact plastic cabinet similar to the one seen here. Proposed cabinet with probes For the purpose of fabricating the probes, a fresh set of injection needles may be employed. It is recommended that the needles be firmly affixed to a piece of laminated plastic sheeting and spaced approximately 2.5 cm apart. When you need to connect objects, make use of the short length of a flat cable that has two wire leads. After the circuit has been assembled, turn it on using switch S1, and then gradually adjust the zero-set trimpot (VR1) until LED1 illuminates when the probes are brought into contact with one another. The most reliable source of power for the tester is a compact alkaline battery operating at 9 volts.
