Over-Heating Indicator for Water Pipe
If you don't pay attention to a hot water pipe in your bathroom, it could burst if it gets too hot. This circuit checks the temperature of the water pipe to see if it is getting too hot.…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Over-Heating Indicator for Water Pipe is a electronics project. If you don't pay attention to a hot water pipe in your bathroom, it could burst if it gets too hot. This circuit checks the temperature of the water pipe to see if it is getting too hot.…
- Source pages
- 400-403
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Buzzer
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Buzzer; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
MAXIMUM
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for MAXIMUM; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Over-Heating Indicator for Water Pipe: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 3 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteIf you don't pay attention to a hot water pipe in your bathroom, it could burst if it gets too hot. This circuit checks the temperature of the water pipe

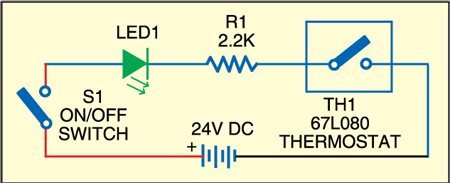

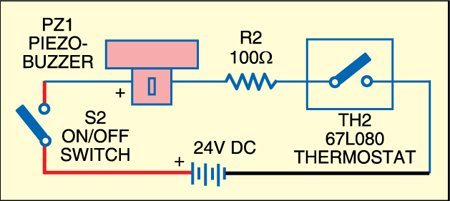

to see if it is getting too hot. If the pipe's temperature goes above a certain point, an LED flashes. A small sensor with a thermostat built in is used in the circuit. It is actually a thermal switch that can be reset automatically when its temperature goes above the set limit. It comes in two different types: "normally open" (N/O) and "normally closed" (N/C). This page talks about three different kinds of circuits. The LED1 on the first circuit shows that the pipe is too hot. When the temperature of the water pipe goes above the limit set by the thermostat, the N/O contact closes and current flows through LED1. When the temperature of the water pipe is too high, the LED1 lights up. Overheating indicator for the pipe through LED The piezo buzzer PZ1 in the circuit below lets you know if a pipe has gotten too hot. When the pipe temperature goes above the set limit, the N/O contact of the thermostat closes, making the piezo buzzer sound. When the limit is reached, the N/O version closes the switch, while the N/C version opens the switch. As soon as the temperature goes back to where it started, the thermostat resets itself. It can be put right on the part that needs to be watched.

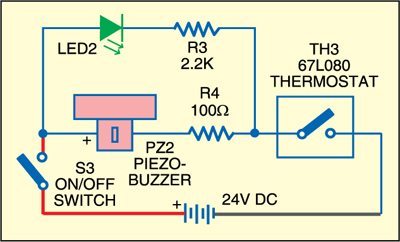

Circuit for aural indication of overheated pipe The piezo buzzer PZ2 and LED2 in the circuit below make a sound and light signal. When the pipe temperature goes over the set limit, the N/O contact of the thermostat closes, causing LED2 to light up and piezo buzzer PZ2 to sound. There are different temperature settings for the sensor. For each model number, the maximum temperature can be anywhere from 70°C to 110°C. For example, the type 67L080 will change state at about 80°C+5°C. You can choose the type that meets your needs. If you want to connect switches to the relay, use a three-core wire. Circuit for audio-visual indication The circuit only has a few parts. Also, it doesn't need its own power source and can be connected to the water heater's power source. Most of the time,
the circuit is not being used and no current is flowing through it.
