Project overview

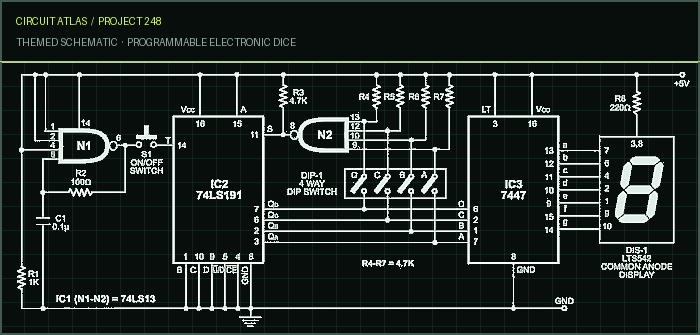

Project build noteThis is an example of a straightforward programmable electronic dice with a numeric display. These dice have a 4-way DIP switch that may be used to display any random number between "1" and "2," "1" and "3,"..... or "1" and "9." Programmable electronic dice circuit
IC1 is a dual 4-input Schmitt trigger NAND gate with the model number 74LS13. In order to establish a clock frequency of roughly 70 kHz, which is then sent to IC2, Gate N1 is utilized as an oscillator. This oscillator is constructed using resistor R2 and capacitor C1. The inputs of IC2 are loaded with data by Gate N2. The 74LS191 in IC2 is a presettable binary counter, and it has a facility for parallel loading. Whenever its pin 11 goes low, the data that is now present at its inputs D through A (which is '0001') appears at its outputs QD through QA. This occurs when all of the inner switches of the DIP switch are open and DIS1 displays the minimum count as '1' rather than '0'. Circuit operation The DIP switch's inner switches A, B, C, and D must be set in accordance with the table in order to get the appropriate dice range. For instance, if you want the electronic dice to count from 1 to 8, you would need to close switches A and D while leaving switches B and C open. The display quickly changes between the numbers '1' and '8' when the switch S1 is pressed. As soon as you let go of S1, the display will stop bouncing around, and it will stay on the most recent number.
When switch S1 is pressed, the count output can go from '0001' all the way up to the maximum count stated in the table under the heading 'Dice Range.' This occurs with the inner switches of the DIP switch in the locations specified in the table. As soon as you let go of switch S1, the most recent count that falls within the dice range will be displayed. The outputs of IC2 are displayed on a 7-segment display with a shared anode (LTS542) (DIS1). The BCD-to-7-segment decoder integrated circuit 7447 (IC3) is what drives the display. Resistance R8 controls the amount of current that flows through DIS1.
