Versatile LED Display
This flexible LED display circuit uses an EPROM (erasable programmable read-only memory) to show different patterns of light on LEDs. Since green and red LEDs have been used, it is now po…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Versatile LED Display is a electronics project. This flexible LED display circuit uses an EPROM (erasable programmable read-only memory) to show different patterns of light on LEDs. Since green and red LEDs have been used, it is now po…
- Source pages
- 473-475
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
CD4040
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4040; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2, LED4, LED5, LED8 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2, LED4, LED5, LED8 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
PART LEARNING VIEWVR1 - preset potentiometer identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for VR1 - preset potentiometer identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Versatile LED Display: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteThis flexible LED display circuit uses an EPROM (erasable programmable read-only memory) to show different patterns of light on LEDs. Since green and red LEDs have been used, it is now possible to display in three colors (green, red and amber). 5V DC is used to power the circuit. IC 555 (IC1) is set up as an astable multivibrator, and VR1 can be used to change the frequency at which it oscillates. The output of IC1 clocks the 12-stage binary counter IC CD4040 (IC2), which then sends address data to EPROM IC 2716. (IC3). When the logic at any data pin is high, the LED that goes with that pin lights up. The red LED on LED1 lights up when the data at address location 00H is read. The green and red LEDs on LED2 light up when the data byte 44H at address location 09H is read (refer the table). This flexible LED display circuit uses an EPROM (erasable programmable read-only memory) to show different patterns of light on LEDs. Since green and red LEDs have been used, it is now possible to display in three colors (green, red and amber). Versatile LED Display Circuit 5V DC is used to power the circuit. IC 555 (IC1) is set up as an astable multivibrator, and VR1 can be used to change the frequency at which it
oscillates. The output of IC1 clocks the 12-stage binary counter IC CD4040 (IC2), which then sends address data to EPROM IC 2716. (IC3). The code for the screen is in IC3 (see Table I). When the logic at any data pin is high, the LED that goes with that pin lights up. The red LED on LED1 lights up when the data at address location 00H is read. The green and red LEDs on LED2 light up when the data byte 44H at address location 09H is read (refer the table).
Construction & testing
Project build noteThere are a total of four bicolor LEDs in the circuit. But more LEDs can be added in pairs of four along the dashed lines (see the figure). Let's say you want to link four more bicolor LEDs together (LED5 through LED8, not shown in the figure). To do this, you'll need to connect them to LED1 through LED4 in parallel. By changing preset VR1, which changes the clock frequency, you can change how fast the display moves.

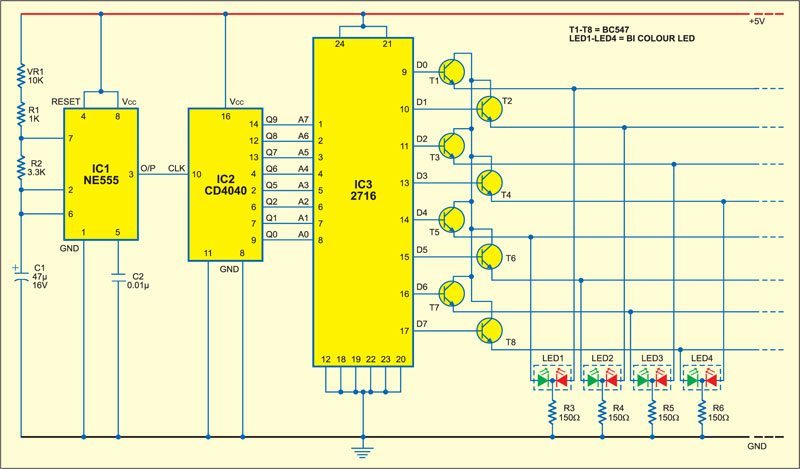

Figure: Versatile LED Display Circuit
Project build noteYou can also change the way the display looks by coding the EPROM. Before the EPROM is put into the circuit, the code needs to be burned into it with a programmer kit.
You built Versatile LED Display.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Multiutility flash light
Ready to reuse what you learned in another project from the same track?
Start this project →
