Sound Operated Intruder Alarm
When this sound-activated intruder alarm hears a sound, like when a door is opened or a key is put into a lock, it starts flashing a light and making a pulsing sound to warn you of an int…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Sound Operated Intruder Alarm is a electronics project. When this sound-activated intruder alarm hears a sound, like when a door is opened or a key is put into a lock, it starts flashing a light and making a pulsing sound to warn you of an int…
- Source pages
- 471-473
- Named parts
- 5
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Transformer
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Transformer; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
Speaker
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Speaker; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
CD4027
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4027; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
T1 - transistor stage identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1 - transistor stage identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
PART LEARNING VIEWVR1 - preset potentiometer identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for VR1 - preset potentiometer identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Sound Operated Intruder Alarm: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

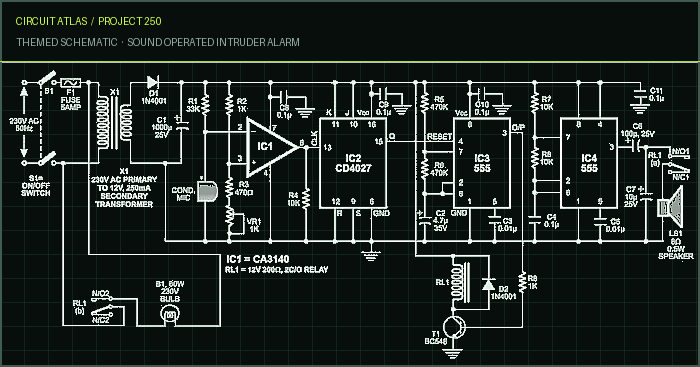

Project build noteWhen this sound-activated intruder alarm hears a sound, like when a door is opened or a key is put into a lock, it starts flashing a light and making a pulsing sound to warn you of an intruder. The next sound pulse automatically turns off both the light and the alarm. Stepping down 230V AC mains with transformer X1, reversing it with diode D1, and filtering it with capacitor C1 gives 12V DC. The voltage at the op-amp CA3140 (IC1non-inverting) input (pin 3) is used as the reference voltage, and it can be set with preset VR1. The voltage across the
condenser microphone is the same as the voltage at the inverting input (pin 2). Care should be taken to set up the condenser microphone so that it is sensitive to sound. A high reference value means that IC1's output at pin 6 can be changed by a quiet sound. Set the reference voltage so that the output doesn't change if the switch is accidentally turned on. When there is no sound, the voltage at pin 2 of IC1 is almost the same as the full DC voltage, so the output of IC1 stays low. Because the IC CD4027 is wired in toggle mode, pin 15 of its output is also low. This makes pin 4 of IC3's reset pin low so that the astable multivibrator built around timer 555 can be reset (IC3). So, transistor T1 is turned off and relay RL1 stays turned off. When RL1 is turned off, both of its N/O contacts, RL1(a) and RL1(b), remain open. RL1(a) keeps the light off, and RL(b) turns off the speaker by cutting the output of the astable multivibrator built around IC 555 (IC4). Circuit operation When there is noise, a current flow through the microphone, which lowers the voltage at pin 2 and makes the output of IC1 high. The pulse at pin 13 of IC2 turns it on, and when its output at pin 15 goes high, it turns on astable multivibrator IC3. The output of IC3 is high for three seconds and then low for 1.5 seconds. This happens again and again until pin 15 of IC2 stays high. When the output of IC3 is high, it turns on the relay through the driver transistor T1. When the output is low, it turns off the relay. When relay RL1 is turned on, relay contact RL1(a) sends AC power to bulb B1 so that it can light up. At the same time, relay contact RL1(b) lets the output of astable multivibrator IC4 go to the speaker, which makes an audio tone. About 480 Hz is the frequency of this sound tone. As long as the
output of flip-flop IC2 stays high, both the light bulb flashes and the tone plays. Now, if the circuit hears another sound, the flip-flop IC2's output goes low. This makes IC3's reset pin 4 go low, which stops IC3 from oscillating. When the output of IC3 is low, the relay is turned off, which turns off the bulb and the tone.
You built Sound Operated Intruder Alarm.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
