Affordable Car Protection Unit
There are specialized protection systems available to purchase, but they come at a high price. The following is a description of a car protection unit that is affordable, does not require…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Affordable Car Protection Unit is a electronics project. There are specialized protection systems available to purchase, but they come at a high price. The following is a description of a car protection unit that is affordable, does not require…
- Source pages
- 86-87
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Buzzer
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Buzzer; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
T1 - transistor stage identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1 - transistor stage identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Affordable Car Protection Unit: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteThere are specialized protection systems available to purchase, but they come at a high price. The following is a description of a car protection unit that is affordable, does not require any modifications to be made within the vehicle, and can secure your car audio and other valuables from being stolen. Put the circuit next to your bed, then take the two wires from the unit to the car (which should be parked outside your house), and attach one wire end to the cover and the other to the ground, while shorting the other wire end with something heavy like a brick. Therefore, the mechanism is hidden from view from the outside. In the event that the cover is removed or attempted to be removed, the alarm on the circuit will sound to notify you. The alarm can be silenced by using switch S1 to perform a reset on the device. The protection circuit for the automobile is made up of two-timed integrated circuits: one for the alarm circuit (see IC2 in Fig. 1) and another to indicate that the battery has taken over as the primary source of power (see IC3 in Fig. 2). The protector is powered by AC mains by default, and the backup battery is only activated in the event that the mains supply is interrupted. Because the current from the battery is not particularly high, the battery will endure for a very long time. Circuit operation

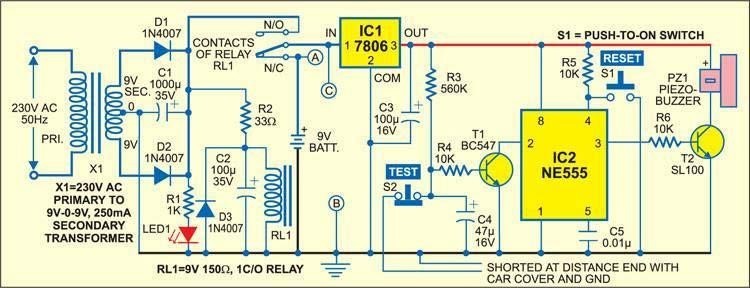

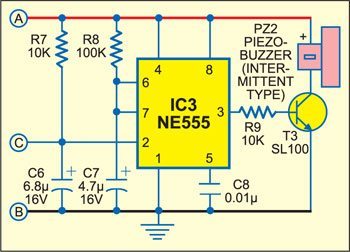

As long as the connection between the two wires is maintained, the transistor T1 will continue to be disabled. When the shorting is removed, transistor T1 becomes forward biased, which causes its collector voltage to drop, which in turn triggers integrated circuit IC2, which causes the piezo buzzer to begin emitting a sound. In the event that the power from the mains supply is lost, the battery-takeover indicator that is depicted in Figure 2 and wired to the points A, B, and C shown in Figure 1 will be immediately activated at pin 2 of IC3. Because of its high output, the battery- operation warning will sound for a brief period of time. For the purpose of activating the protection unit, IC1 gets power from the battery. After ensuring that the device is properly configured and connecting both wires together, activate the test switch labelled S2. Even if there is nothing wrong with the circuit, the alarm will still go off. Now, deactivate the alarm by removing your finger from the test switch S2 and briefly pressing the reset switch S1.
