Weight measurement using Arduino, the HX711 Module, and a load cell

load cell The Load Cell and Weight Sensor HX711 will be connected to the Arduino to measure weight. The weight of an item is displayed by an automated weight machine in many shops. Users…

Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cell
PROJECT#383
TRACKArduino
PARTS06
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Weight measurement using Arduino, the HX711 Module, and a load cell is a arduino project. load cell The Load Cell and Weight Sensor HX711 will be connected to the Arduino to measure weight. The weight of an item is displayed by an automated weight machine in many shops. Users…

Source pages
823-829
Named parts
6
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY6 PART LINES
PARTTYPEQTYREADY
MArduino UnoMODULE1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cellMODULE LEARNING VIEW

Arduino Uno

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for Arduino Uno; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
PLoad cell (40kg)PART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cellPART LEARNING VIEW

Load cell (40kg)

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Load cell (40kg); similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
PHX711 Load cell Amplifier ModulePART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cellPART LEARNING VIEW

HX711 Load cell Amplifier Module

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for HX711 Load cell Amplifier Module; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Mx2 LCDMODULE1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cellMODULE LEARNING VIEW

x2 LCD

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for x2 LCD; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
PUSB cablePART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cellPART LEARNING VIEW

USB cable

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for USB cable; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
PNut bolts, Frame and basePART1
What's this?Image, role, pros, cons, handling & specifications
Circuit Atlas themed schematic for Weight measurement using Arduino, the HX711 Module, and a load cellPART LEARNING VIEW

Nut bolts, Frame and base

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Nut bolts, Frame and base; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

load cell The Load Cell and Weight Sensor HX711 will be connected to the Arduino to measure weight. The weight of an item is displayed by an automated weight machine in many shops. Users place the item on the platform and the machine displays the weight. Therefore, there is a weighing machine that has been built with Arduino and Load cells, which is capable of weighing up to 40kg. Further increase of the limit is possible by using more capable load cells.

02

Required Components

Project build note

Arduino Uno

Load cell (40kg) HX711 Load cell Amplifier Module 16x2 LCD Connecting wires USB cable Breadboard Nut bolts, Frame and base

03

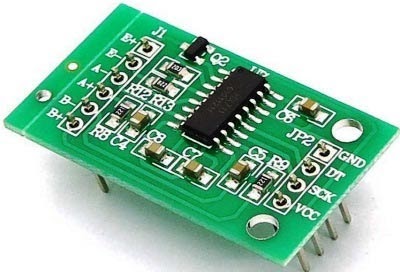

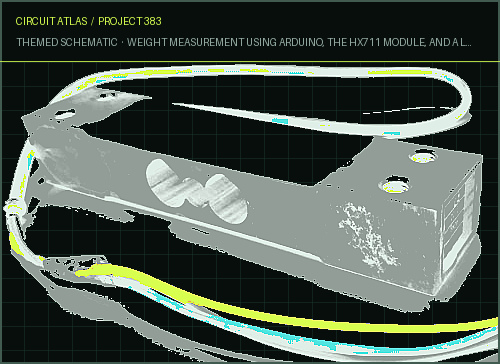

Load Cell and HX711 Weight Sensor Module

Project build note

Load cells are electronic transducers that create an electrical signal from force or pressure. Indirectly related to the force applied is the magnitude of the electrical output. During application of pressure, strain gauges in load cells deform. When the strain gauge is deformed, the effective resistance changes, so electrical signals are generated. Four strain gauges are typically used as part of a Wheatstone bridge to form a load cell. These load cells can weigh up to 40kg, and come in different ranges like 5kg, 10kg, 100kg and even more. Here, we are using a Load cell that can weigh up to 40kg. Because the load cell has an output voltage in the range of a few millivolts, these signals require further amplification, hence the HX711 Weighing

Sensor is required. An HX711 chip is used in the HX711 Weighing Sensor Module, which is an A/D converter with 24 high-precision channels. Two analog input channels can be programmed in the HX711 for gains up to 128 by programming them. So the HX711 module outputs the low electrical signal from the load cells which is then amplified and digitally converted before being fed to Arduino to calculate weight. Four wires are used to connect the load cell to the HX711 Amplifier. Red, black, white and green/blue wires make up these wires. Wire colors may vary slightly from one module to another. RED Wire is connected to E+ BLACK Wire is connected to E- WHITE Wire is connected to A- GREEN Wire is connected to A+

04

Fixing Load Cell with Platform and Base

Project build note

Weights may be applied directly to the load cell without the Platform step. Although the clamp can simply be attached to the plate without a base, a platform should be attached for putting large objects on it, which should be fixed to a base so that it stands still. Therefore, the frame or platform is necessary in order to place the weight measuring equipment. Furthermore, a load cell needs to be fixed to a base using bolts and nuts. The base is made out of a hard board, which has been covered with hard cardboard. Once the connections are made according to the schematic, you are ready to go.

05

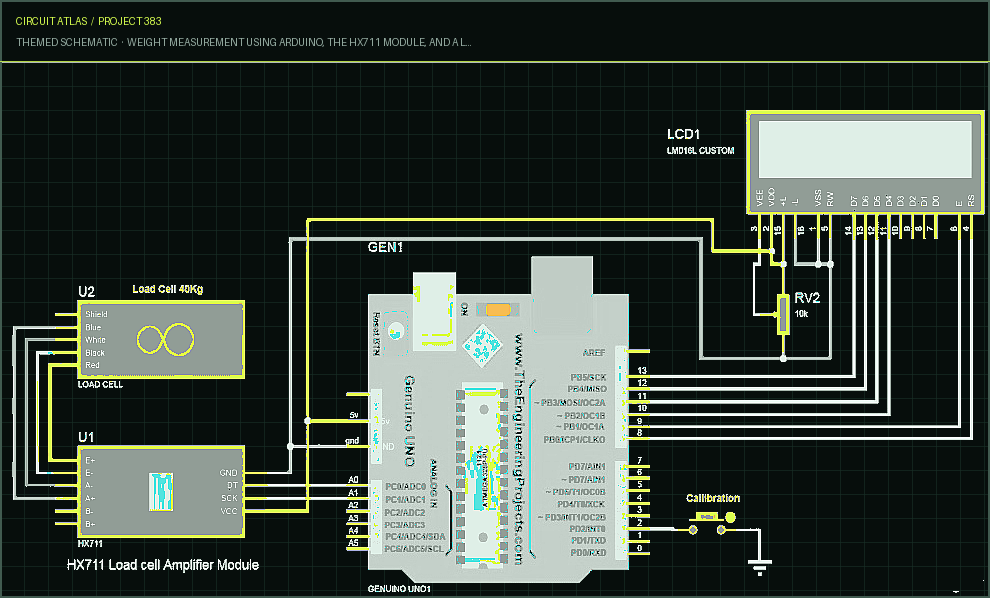

Circuit Explanation

Project build note

Schematic and connections are provided below for this project. Pin numbers 8, 9, 10, 11, 12 and 13 of Arduino are connected to 16x2 LCD pins RS, EN, d4, d5, d6, and d7 respectively. Arduino's A0 and A1 pins are connected directly to the DT and SCK pins of HX711 Module. Circuit diagrams of the HX711 module and load cell connections have also been explained earlier.

06

Working Explanation

Project build note

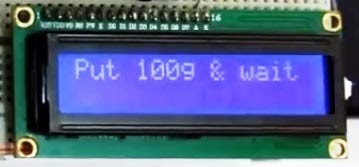

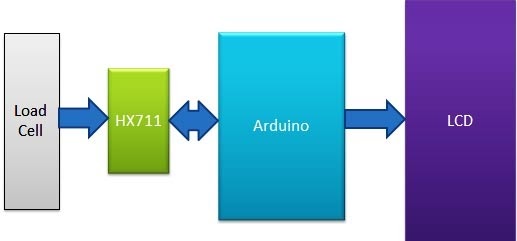

It is easy to execute this Arduino weight measurement project. In advance of discussing details, this system needs to be calibrated for accurate weight measurements. A calibration process starts automatically when the system is powered up. In case the user wishes to calibrate it manually, he or she can use the push button. The following code describes how we created a void calibrate() function for calibration purposes. When calibrating the load cell, wait for the LCD display to appear once 100 grams of load is placed on the cell as demonstrated in the picture below. You should put the 100g weight over the load cell when the LCD reads "put 100g" and then wait for it to appear on the LCD. Upon completion of the calibration procedure, the process will take a few seconds. Any weight can be put over the load cell after calibration (maximum 40kg) and the calculated value will appear over the LCD in grams.
