Automated Plant Irrigation System Using Arduino with Message Alerts
Alerts It is always difficult to leave our plants unattended if we are going out of town for a few days. Our plants require regular watering. We are making an Arduino-based Automated Plan…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Automated Plant Irrigation System Using Arduino with Message Alerts is a arduino project. Alerts It is always difficult to leave our plants unattended if we are going out of town for a few days. Our plants require regular watering. We are making an Arduino-based Automated Plan…
- Source pages
- 829-833
- Named parts
- 7
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Arduino Uno
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for Arduino Uno; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
LCD display
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LCD display; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
Power supply
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Power supply; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
Potentiometer
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Potentiometer; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
GSM module
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for GSM module; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWBC547
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for BC547; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
POWER LEARNING VIEWLM317
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for LM317; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Automated Plant Irrigation System Using Arduino with Message Alerts: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 3 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteAlerts It is always difficult to leave our plants unattended if we are going out of town for a few days. Our plants require regular watering. We are making an Arduino-based Automated Plant Irrigation System, which sends out messages to you as well as automatically provides water to plants. Water is provided to the plant through a water pump if the soil moisture level drops due to a low moisture level detected by the soil moisture sensor. Once the system detects sufficient soil moisture, it automatically turns off the water pump. An update on the status of the water pump and soil moisture is sent to the user whenever the water pump is turned on or off via the GSM module. Farms, gardens, homes, etc, would benefit all from this system. No human intervention is required because this system is completely automated. Required Components for Arduino Plant Watering System Project
Arduino Uno GSM Module Transistor BC547 (2) Connecting wires
16x2 LCD (optional) Power supply 12v 1A Relay 12v Water cooler pump Soil Moisture Sensor Resistors (1k, 10k) Variable Resistor (10k, 100k) Terminal connector Voltage Regulator IC LM317
GSM Module
Project build noteUsing the SIM800 GSM module, we have used it here. Customers as well as hobbyists can easily embed the SIM800's quad-band GSM/GPRS module. GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, data is provided by SIM900 GSM Module, while SIM800 GSM Module employs an industry-standard interface. Slim and compact, the SIM800 GSM Module follows a modern design aesthetic. Quad - band GSM/GPRS module in small size. GPRS Enabled TTL Output

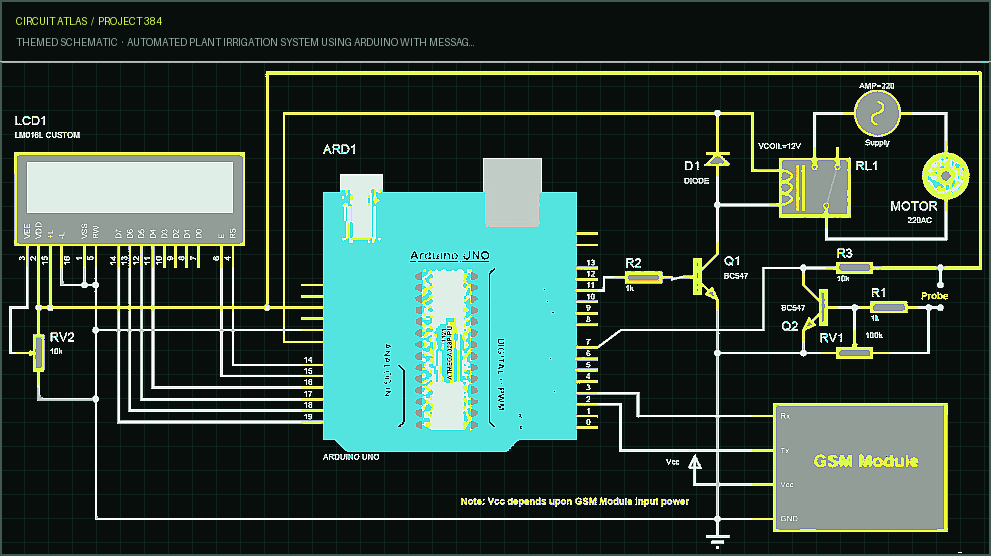

Circuit Explanation

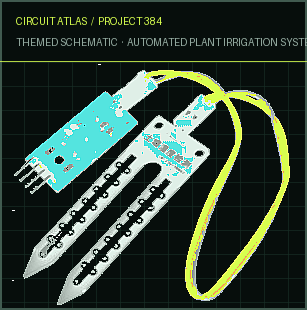

Project build noteThe homemade soil moisture sensor probe used in this system allows us to measure moisture levels in the soil. As shown in the following image, a copper clad board was cut and etched to make the probe. There is a direct connection between the probe and Vcc, and the other probe terminal is attached to BC547's base. Sensor sensitivity is adjusted using a potentiometer connected to the base of the transistor.
This Automatic Plant Watering System is controlled entirely by an Arduino. Directly connected to the digital pin D7 of Arduino is the soil sensor circuit's output. The sensor circuit uses a LED, which indicates whether moisture is present in the soil by its ON state and whether it is not present by its OFF state. An SMS can be sent to the user using the GSM module. As you can see, here we are using a GSM SIM800 card, which is a device that directly gives and takes TTL signals (to be used by any GSM module). The SIM800 GSM module is powered by the LM317 voltage regulator. It is recommended to read the data sheet of the LM317 before using it, since voltage rating is very sensitive to that. 3.8 to 4.2 volts is its operating voltage rating (please use 3.8 volts when operating it).
A SIM900 TTL Module should be used with 5V, and a SIM900 Module should be used with 12v in the DC Jack slot on the board. The 220VAC small water pump is controlled by a 12V Relay. An Arduino digital pin 11 is connected to the BC547 transistor, which drives the relay. Status and messages are also displayed on an optional LCD. Several LCD pins are directly connected to the Arduino, including RS, EN, and D4-D7, which are directly connected with the Arduino on pins 16, 17, 18 and 19. In this case, Arduino uses the LCD library built into the board to drive a 4-bit LCD display.
Working Explanation

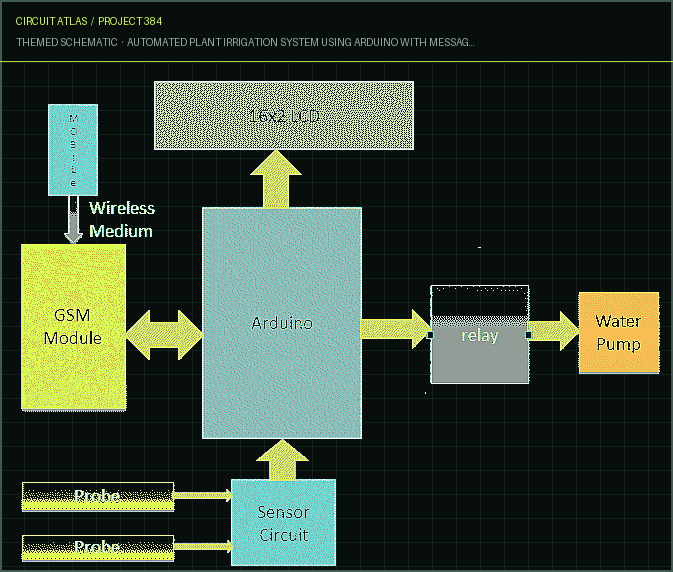

Project build noteA Plant Irrigation System like this is pretty straightforward in terms of how it works. The first thing to point out is that the system is completely
automated, and it does not require any manual labor. A GSM module sends alert messages to the cell phone of the user based on the Arduino's handling of the entire process. The Irrigation System with Arduino and a Soil Moisture Sensor is shown on the following block diagram: When soil contains moisture, conduction occurs between the two probes of the Soil Moisture sensor, resulting in transistor Q2 remaining in the triggered/on state, and Arduino Pin D7 remaining low. The Arduino sends the SMS message "Soil Moisture is Normal" when it detects the LOW signal at D7. The water pump is still in an off state because the motor switched off. Transistor Q2 will become off if no moisture is present in soil, and Pin D7 will become high. A message is then sent to the user stating that "Low Soil Moisture has been detected" and Arduino turns on the water motor. Motor turned ON”. The soil will automatically turn off the motor when the moisture content is sufficient.
You built Automated Plant Irrigation System Using Arduino with Message Alerts.
