Christmas Lights Using LEDs
When celebrating special occasions, it is common practice to decorate with various light effects. Electronic circuits are becoming increasingly diverse as a result of the creativity and i…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Christmas Lights Using LEDs is a electronics project. When celebrating special occasions, it is common practice to decorate with various light effects. Electronic circuits are becoming increasingly diverse as a result of the creativity and i…
- Source pages
- 89-90
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
T1, T2, T3, T4 - transistor stages identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1, T2, T3, T4 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED9, LED10, LED18 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED9, LED10, LED18 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Christmas Lights Using LEDs: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

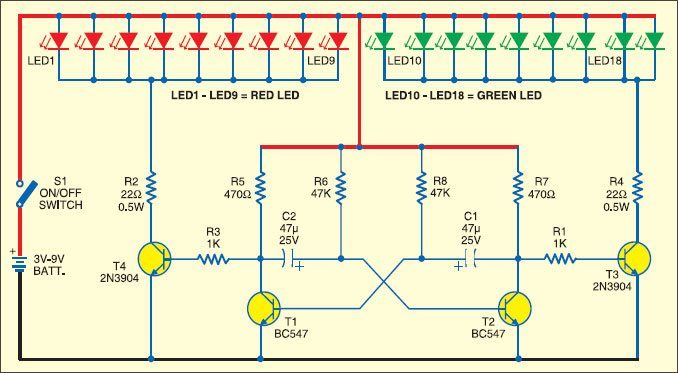

Project build noteWhen celebrating special occasions, it is common practice to decorate with various light effects. Electronic circuits are becoming increasingly diverse as a result of the creativity and innovation of product designers. As illustrated in Figure 1, here is a Christmas light circuit that is simple to put together and may be used for decorating. It is made up of a few resistors, a couple capacitors, and four transistors, and it has eighteen LEDs. Because T1 and T2 are wired up to function as an astable multivibrator, it is guaranteed that one of the transistors will be conducting at all times. Therefore, clock pulses are produced by the combination.
Christmas lights using LEDs The values of the time constants produced by the R6-C2 and R8-C1 pair combinations have been carefully chosen in order to provide a low-frequency clock that is discernible by the naked eye. There is a connection made between the collectors of transistors T1 and T2 and driver transistors T3 and T4. In order to illuminate two rows of LEDs that are connected in parallel with alternating clock pulses, these are utilized. Approximately 2 hertz is the frequency at which the LEDs LED1 through LED9 and LED10 through LED18 light up in a randomized order. Simply by altering the values of capacitors C2 and C1, you are able to make simple adjustments to this frequency. The amount of current that flows through the LEDs can be adjusted by adjusting the values of resistors R2 and R4. For the purpose of mimicking the effects of Christmas decorations, red LEDs (LED1 through LED9) and green LEDs (LED10 through LED18) are utilized. You can adjust the values of the resistors R2 and R4 to achieve the desired degree of brightness variation.
You built Christmas Lights Using LEDs.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
DIY: Make Your Own Nifty Night Lamp
Ready to reuse what you learned in another project from the same track?
Start this project →
