An Inexpensive IoT Enabler Using ESP8266

The Internet of Things, or IoT for short, focuses on the various ways in which devices can be connected to a network so that they can communicate with one another and send and receive dat…

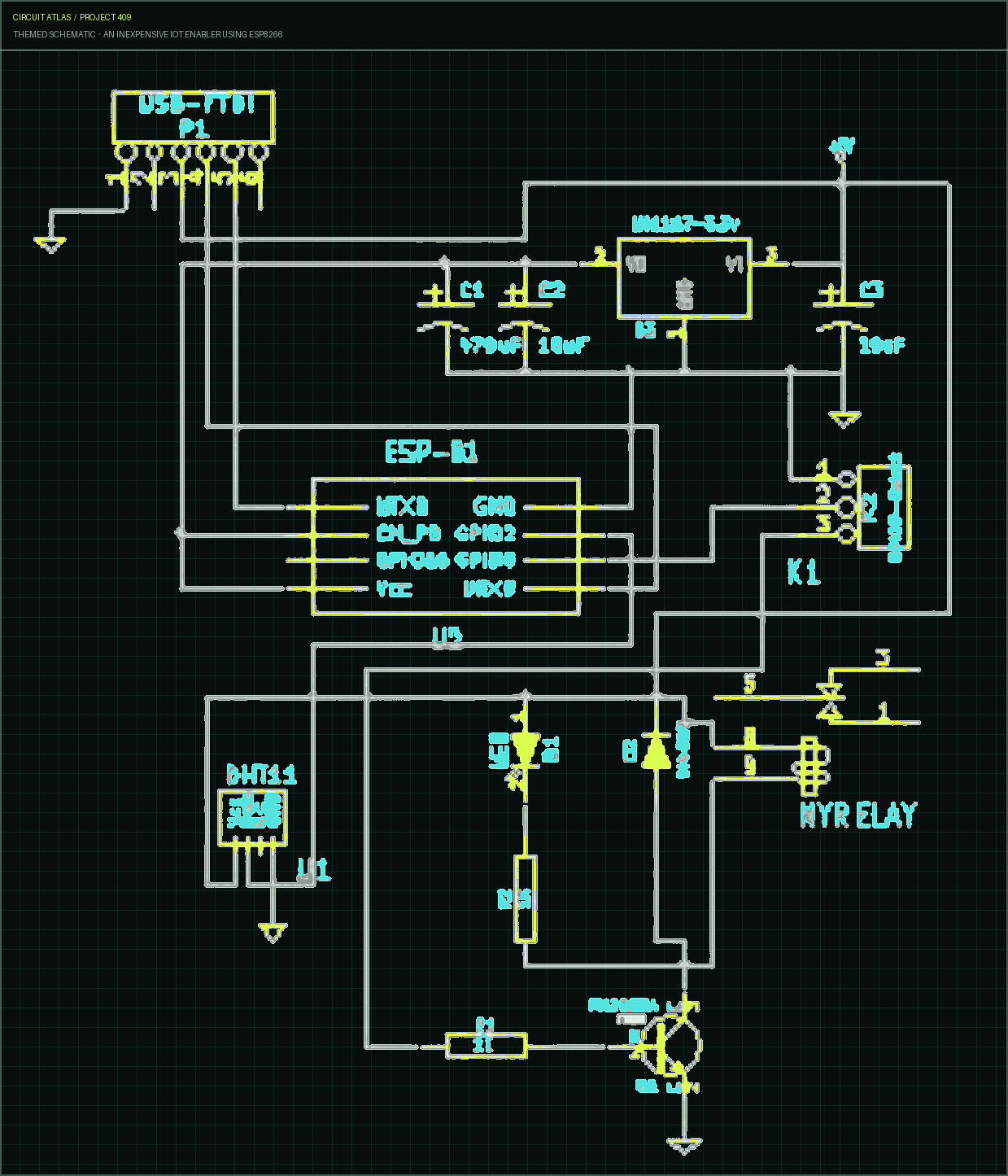

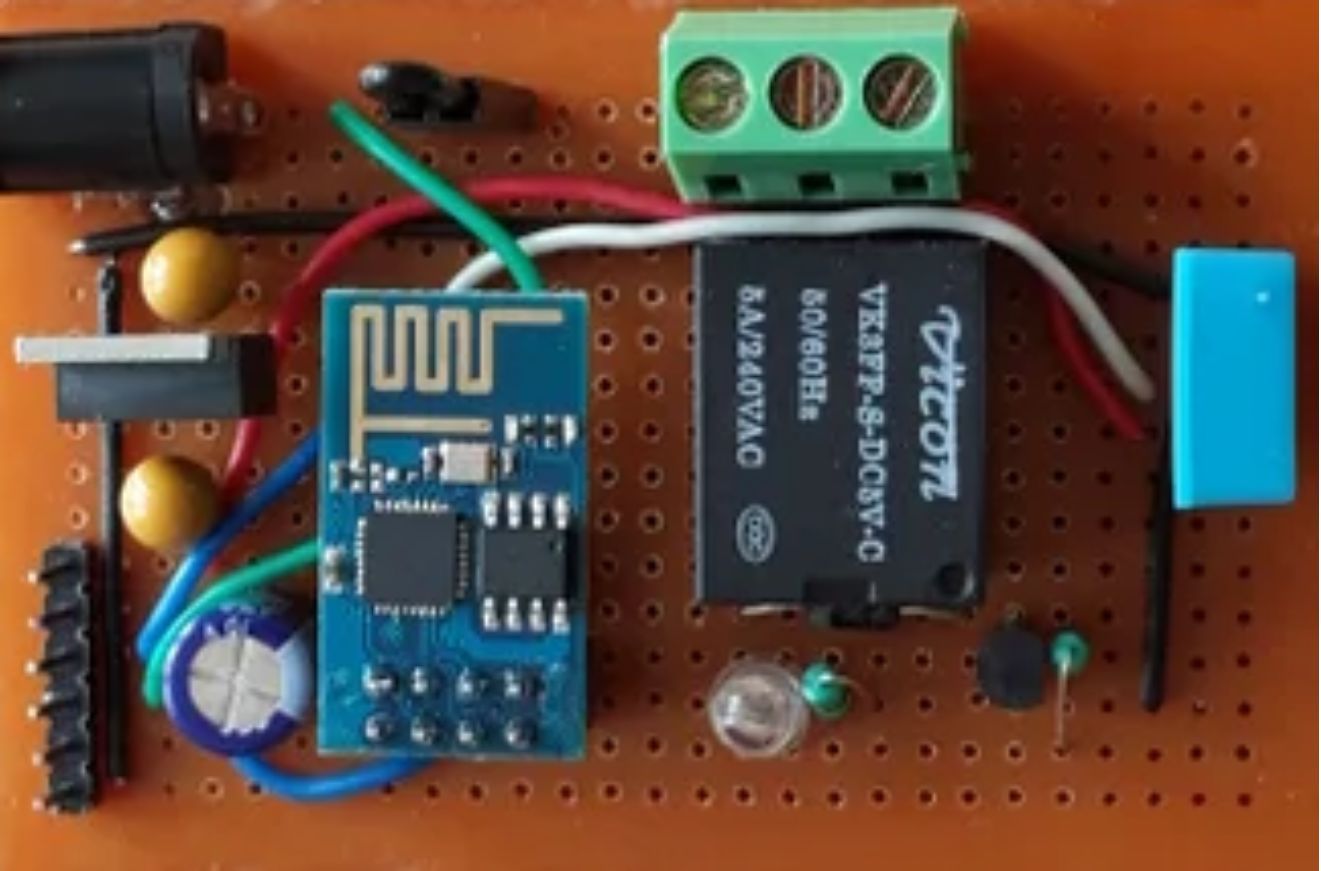

An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944
PROJECT#409
TRACKIoT
PARTS08
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

An Inexpensive IoT Enabler Using ESP8266 is a iot project. The Internet of Things, or IoT for short, focuses on the various ways in which devices can be connected to a network so that they can communicate with one another and send and receive dat…

Source pages
943-947
Named parts
8
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY8 PART LINES
PARTTYPEQTYREADY
MESP8266 ESP-01 moduleMODULE1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944MODULE LEARNING VIEW

ESP8266 ESP-01 module

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for ESP8266 ESP-01 module; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
MDHT11 or DHT22 sensorMODULE1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944MODULE LEARNING VIEW

DHT11 or DHT22 sensor

A sensor converts a physical condition into an electrical signal the circuit can measure.

What it does here

It provides project input as an analogue, digital, resistive, frequency, or calibrated signal.

Buy / compare this part

Advantages

  • Adds real-world awareness
  • Can usually be tested independently
  • Often supports calibration

Limitations

  • Readings can drift
  • Placement affects results
  • Some sensors need warm-up or calibration

Handling

  • Protect the sensing surface
  • Observe supply voltage and polarity
  • Keep signal leads away from noisy power wiring

Specifications to verify

  • Use the exact model, value, package, and rating listed for DHT11 or DHT22 sensor; similar-looking parts are not always interchangeable.
  • Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
Pv relayPART1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944PART LEARNING VIEW

v relay

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for v relay; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
PLM1117 3.3v LDO voltage regulatorPOWER1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944POWER LEARNING VIEW

LM1117 3.3v LDO voltage regulator

A power component supplies, converts, stores, or regulates energy for the project.

What it does here

It must provide the documented voltage, polarity, isolation, and sufficient current safely.

Buy / compare this part

Advantages

  • Stable power improves reliability
  • Current limiting protects first tests
  • Regulation reduces resets and noise

Limitations

  • Wrong polarity can cause immediate damage
  • Underrated parts overheat
  • Mains circuits require qualified supervision

Handling

  • Measure output before connection
  • Use a fuse or current limit
  • Insulate exposed conductors

Specifications to verify

  • Use the exact model, value, package, and rating listed for LM1117 3.3v LDO voltage regulator; similar-looking parts are not always interchangeable.
  • Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
SN2222A transistorSEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944SEMICONDUCTOR LEARNING VIEW

N2222A transistor

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for N2222A transistor; similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Px 470 uF capacitorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944PASSIVE LEARNING VIEW

x 470 uF capacitor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for x 470 uF capacitor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
Px 10 uF Tantalum capacitorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
An Inexpensive IoT Enabler Using ESP8266 - source illustration from page 944PASSIVE LEARNING VIEW

x 10 uF Tantalum capacitor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for x 10 uF Tantalum capacitor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
Px 1K resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

x 1K resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for x 1K resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

The Internet of Things, or IoT for short, focuses on the various ways in which devices can be connected to a network so that they can communicate with one another and send and receive data and commands. This is arguably the most important aspect of the IoT itself. There are already technologies like Bluetooth, WiFi, NFC, etc. that can help with last-mile connectivity, but most of them are hard to set up and often need extra hardware like a local control server or appliance. In this project, I show you how to build and set up a simple standalone board that, with the help of a wifi network, can send environmental data to the internet and receive commands to turn on/off a switch. This project, which costs less than 10 or 15 US dollars to build, does the following: Send readings from a DHT11 sensor about temperature and humidity to a MQTT broker and a Thingspeak channel. Listen for MQTT messages and use ESP8266 to turn on or off a relay.

Check a Thingspeak channel every so often, and if the field has changed, turn on or off a relay. In simple terms, this is a temperature/humidity sensor and relay that can connect to the internet. The relay can be used to turn on or off any AC appliance that is connected to it. The parts needed cost less than 15 US dollars, and you don't need any other hardware. All of the software used is open source, and to connect the board to the internet, only free online

services were used. It is assumed that there is a WiFi network that the board can connect to that works. Even though there are already a few projects that show how to set up an ESP8266 module to send data to the internet, I have not seen a solution that also lets you use the internet to control a device that is connected to the ESP8266 module. This project shows how simple it is to do that.

02

Component Required

Project build note

1. ESP8266 ESP-01 module 2. DHT11 or DHT22 sensor 3. 5v relay 4. LM1117 3.3v LDO voltage regulator 5. N2222A transistor 6. 1 x 470 uF capacitor 7. 2 x 10 uF Tantalum capacitor 8. 2 x 1K resistor

03

9. 1 LED

Project build note

10. male breakaway headers 11. PCB Board 12. FTDI USB to TTL adapter cable

You can order the ESP8266 module, the DHT11/22 sensor, and the USB to TTL cable from ebay.com. Buying all three should not cost more than $9. The rest of the parts can be bought for a few dollars at any store that sells electronics. The ESP8266 module should be able to connect to a working WiFi access point and know how to log in to it. The circuit is pretty simple. The board

can be powered either by the USB cable alone or by a 5v DC supply plugged into the power socket at the top. A LM1117-3.3 LDO is used to give the ESP8266 module the 3.3v it needs. On the GPIO2 pin of the ESP8266, there is a DHT11 sensor. Depending on where the jumper is, the GPIO0 pin can be linked to either the ground or the relay. The temperature and humidity readings, as well as the relay state, are sent from the board to: MQTT broker: Any MQTT broker can be used (http://mqtt.org/). In my case, I used www.cloudmqtt.com, which has a free online broker. You'd need to make both an account and an instance. And put the details of the instance in the user config.h file. Using an online broker is helpful because you can access it from any network. If a local broker is used, like one that runs on a Raspberry Pi, it may be hard to connect to it from outside the home network because ISPs usually block incoming ports. Thingspeak.com: On Thingspeak.com, you need to set up an account. Also, a channel with these three channels needs to be made and the details of that

04

channel need to be entered in user main.c

Project build note

field1 - relay state field2 - temperature field3 - humidity Even though, in its current state, the board needs to be connected to both cloudmqtt and Thingspeak for all functions to work, the code can be easily changed to use only one of these options.

Ready to continue?
PROJECT ACHIEVED

You built An Inexpensive IoT Enabler Using ESP8266.

You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.

Firebase: Control ESP8266 NodeMCU GPIOs from Anywhere project thumbnail featuring ESP8266, ESP32
NEXT IOT ADVENTURE

Firebase: Control ESP8266 NodeMCU GPIOs from Anywhere

Ready to reuse what you learned in another project from the same track?

Start this project
Browse all 500 projects
