In this project, you will get an idea of how to use Firebase to control the GPIOs of an ESP8266 from anywhere. We'll make nodes in the Firebase Realtime Database to store the current GPIO states. The ESP8266 updates its GPIOs whenever there is a change in the database nodes. You can change the states of the GPIOs by writing to the database or by making a web app. What's Firebase? Google's Firebase is a platform for making mobile apps that helps you build, improve, and grow your app. Firebase gives you free services like hosting, authentication, and a real-time database that let you build a full-featured web app to control and monitor the ESP32 and ESP8266 boards that would be much harder and more time-consuming to build and set up on your own. The Firebase Realtime Database enables the development of rich, collaborative applications by providing direct, secure database access from client-side code. Data is stored locally, and real-time events continue to fire even when the application is not connected to the internet, providing the end user with a responsive experience. The diagram gives a high-level look at the project overview

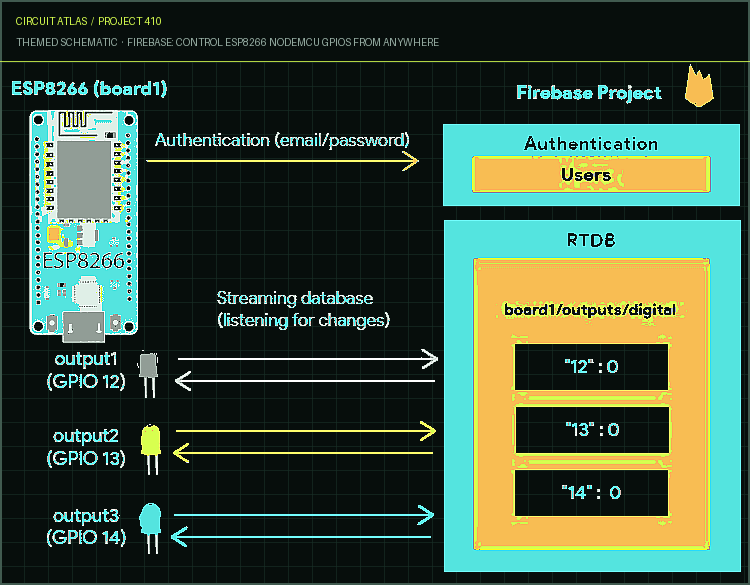

1. To access the database, the ESP8266 verifies itself as a user with an email address and a password (this user must be added to the Firebase authentication methods); 2. Database rules are used to protect the database. We'll add the following rule: only authenticated users can access the database. The database has several nodes that store the ESP8266 GPIO states. 3. We'll control three GPIOs as an example (12, 13, and 14). You can add or take away nodes to change how many GPIOs you can control. 4. The ESP8266 will watch the GPIOs database nodes for changes. When something changes, it will change the GPIO states to match. 5. You can change the GPIO states manually on the database using the Firebase console, or you can make a web page that anyone can access with buttons to control the GPIOs and show the current GPIO states.

Here are the main things you need to do to finish this project: Make a project in Firebase Set Authentication Methods Get the Project API Key Set up the database for real time Set up Database Security Rules Organizing your Database Nodes ESP8266: Monitoring for Any Changes to the Database (control GPIOs)
