Raspberry Pi Pico Web Server with ESP8266 & MicroPython
We know that the best and cheapest module on the market is ESP-01. In this tutorial, we'll do what the title says and connect a separate Wi-Fi module to the Raspberry Pi Pico. We will lea…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Raspberry Pi Pico Web Server with ESP8266 & MicroPython is a iot project. We know that the best and cheapest module on the market is ESP-01. In this tutorial, we'll do what the title says and connect a separate Wi-Fi module to the Raspberry Pi Pico. We will lea…
- Source pages
- 1119-1122
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
ESP8266
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for ESP8266; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
Raspberry Pi
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for Raspberry Pi; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
Wi-Fi module
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Wi-Fi module; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
ESP8266-01 - controller board / IC
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for ESP8266-01 - controller board / IC; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Raspberry Pi Pico Web Server with ESP8266 & MicroPython: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

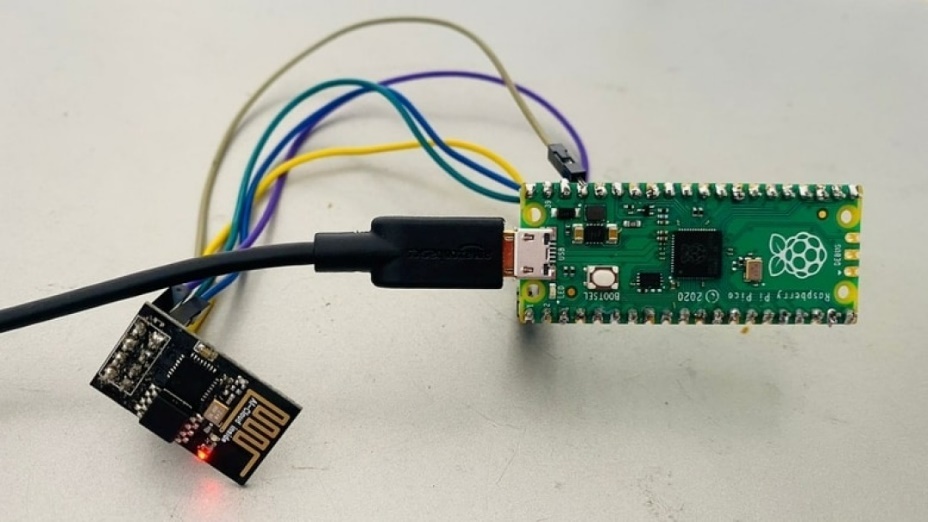

Project build noteWe know that the best and cheapest module on the market is ESP-01. In this tutorial, we'll do what the title says and connect a separate Wi-Fi module to the Raspberry Pi Pico. We will learn how to use Micropython and the ESP8266 library to connect and program the ESP01 module with the Raspberry Pi Pico. The ESP8266-01 module comes with default firmware that we can access through UART by sending the AT command sets. With the help of Micropython ESP8266, it's easy to connect ESP8266 to Raspberry Pi Pico and finish the HTTP get/post operation. The Pico-ESP8266 is a WiFi expansion module for the Raspberry Pi Pico. It can be controlled by the UART AT command and supports the TCP/UDP communication protocol. It's a simple way to turn on WiFi on Raspberry Pi Pico, which can be used for all kinds of IoT communication project Components Requires Raspberry pi Pico ESP8266-01 Module

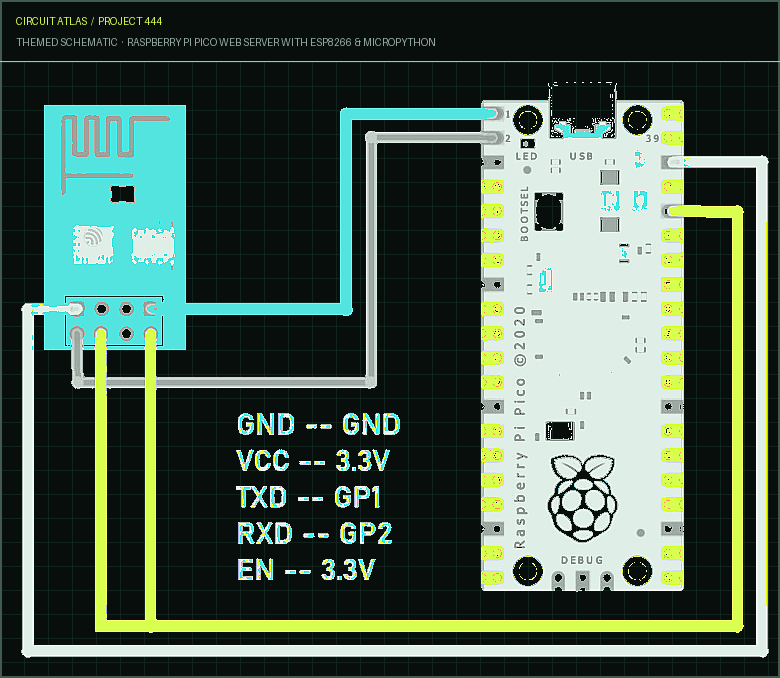

Bread Board Jumper wire 1k or 10k resistor (optional connect between 3.3v and ESP8266 EN pin) For the raspberry pi pico and esp8266-01 module, you can look at the diagram below. With the red wires, the VCC pin on the ESP-01 module is connected to the 3.3V pin on the Pico board, which is Pin 36. The "CH EN" Channel Enable pin on the ESP-01 Module gets its 3.3V from the "Brown" wire. In the diagram below, the Yellow Wire is used to connect the transmitter pin of the ESP-01 module to the receiver pin of the UART0 Channel, which is Pin 2 of the Pico board. The orange wire connects the Receiver pin of the ESP-01 module to the Transmitter pin of the UART0 channel, which is pin number 1 on the Pico board. All of the ground connections on the board are made with the black wires. Circuit Diagram & Connections
Now, let's look at how to connect the ESP8266 WiFi Module to the RP2040 Raspberry Pi Pico Board. Here is a simple diagram of how things connect. There are two UART built into the Raspberry Pi Pico. We will use UART-0 in this plan. In the same way, the ESP8266's baud rate is set to 115200 by default. To keep the Raspberry Pi Pico in sync with the ESP8266, we need to set up the baud rate to be the same. Connect the ESP8266's VCC and EN pins to the Pico's 3.3V pin and GND to GND. In the same way, connect the Tx and Rx pins of the ESP8266 to the Rx and Tx pins of the Pico UART-O.
