WiFi Controlled Robot using ESP8266 & Android App
This project will show you how to use a NodeMCU ESP8266 Board to build a robot that can be controlled over the Internet or WiFi. There are many different kinds of robots and robotic cars,…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
WiFi Controlled Robot using ESP8266 & Android App is a iot project. This project will show you how to use a NodeMCU ESP8266 Board to build a robot that can be controlled over the Internet or WiFi. There are many different kinds of robots and robotic cars,…
- Source pages
- 1138-1141
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
ESP8266
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for ESP8266; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
MODULE LEARNING VIEWNodeMCU
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for NodeMCU; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
NETWORK
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NETWORK; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
L298N - specified part
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for L298N - specified part; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
WiFi Controlled Robot using ESP8266 & Android App: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 3 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

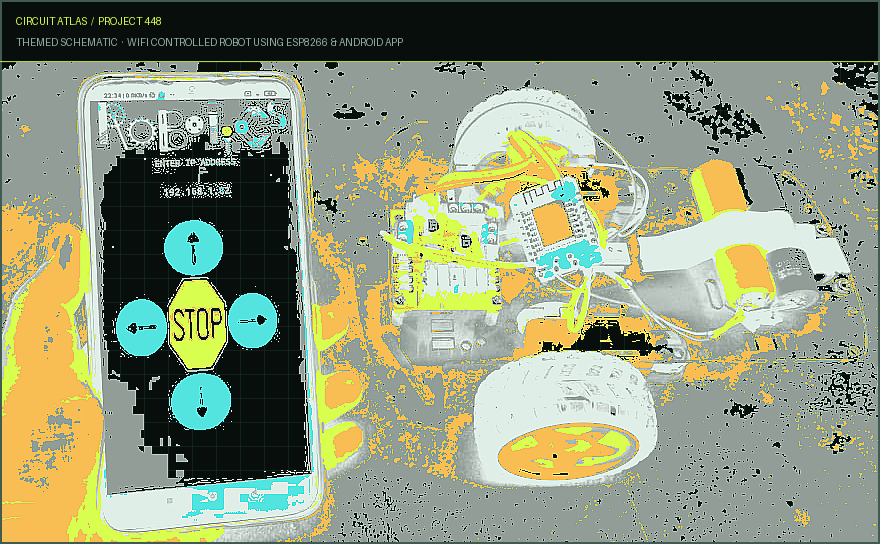

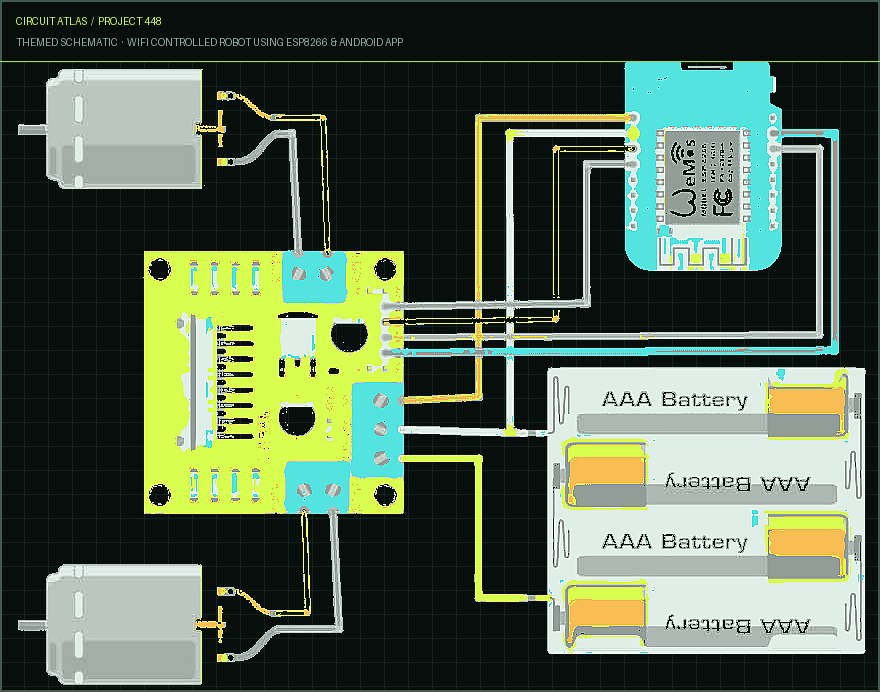

Project build noteThis project will show you how to use a NodeMCU ESP8266 Board to build a robot that can be controlled over the Internet or WiFi. There are many different kinds of robots and robotic cars, from simple ones like toys to more complex ones like robotic arms used in factories. The Wemos D1 Chip is used as the control unit for this WiFi-controlled robot. We used the L298n Motor Driver IC Module to control the pair of motors. We can use any battery to turn on the circuit because it needs more than 5V. A MIT APP Inventor software is used to make an Android app that can be used to control the robot. Circuit Diagram & Hardware Here is the schematic for this WiFi-Controlled Robot Project, which was made with the software Fritzing. We will use an L298 Motor Driver IC to run the two DC motors. For this task, you can use a 200-300 RPM DC motor. Wemos D1 Board is the main control unit. It connects and controls
the whole circuit and all of the equipment. We'll use a 6V DC battery or two Lithium-Ion batteries connected in series to power the circuit. Connect the battery to the power input on the L298 Motor Driver. Connect the L298's four inputs to the ESP8266's D3, D4, D7, and D8 pins. L298 5V Pin is where you give Wemos 5V. Connect the left and right motors to the pins that come out of L298. Put the base and chassis of the robot car together. I powered the circuit with two 3.7V Samsung 18650 batteries. Since the batteries are linked together in a series, the total voltage is about 8V. I have used the glass-fiber chassis that is clear. You can use metal, wood, or anything else that fits your needs. Screw all the parts together tightly and put them on the chassis. Use wheels that are strong and of good quality so that the robot can move even on rough ground.

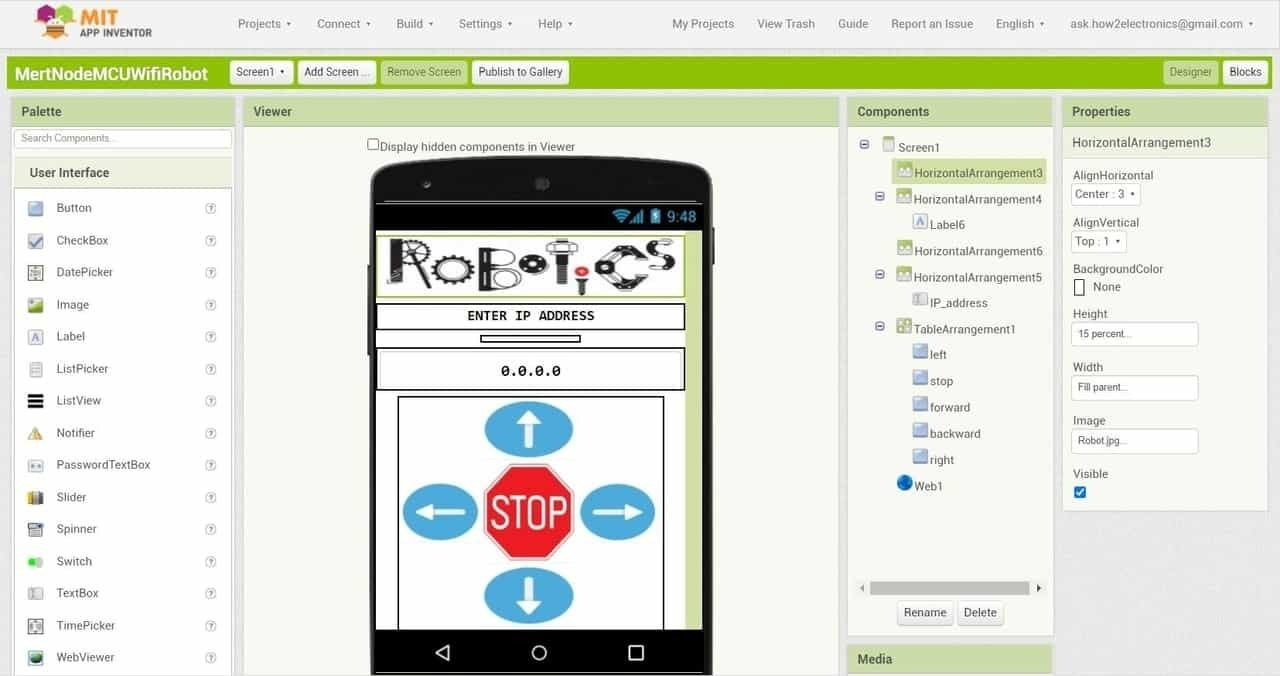

The Android App Design Now we need to make an Android app for ESP8266 WiFi Controlled Robot. Using MIT App Inventor is the easiest way to make an Android app. With the MIT APP Inventor, you can make apps for Android phones by using a web browser and a connected phone or an emulator. The App Inventor servers save your work and help you keep track of your projects. With App Inventor, you can create pretty much any kind of app you can think of, including games, informational apps that use user-generated data, personal convenience apps, apps that facilitate communication, apps that use the phone's sensors, and even apps that connect to online services like Twitter. I just made a User Interface for this Robotic Project. The app has 5 sets of switches that send the 0 and 1 commands to the web server. Testing the WiFi Controlled Robot Once the code is uploaded, click on the serial monitor. So, once the Serial Monitor is connected to the WiFi Network, it will show the IP Address.
Note this IP Address, as the Android App needs it. Open the Android app you have on your phone and type in the IP address you wrote down earlier. Now you can tell the Robot what to do. Press the Up-arrow key to move the Robot forward, and press the DOWN arrow key to move it backward. In the same way, press the Left and Right arrow keys to move the Robot left and right
You built WiFi Controlled Robot using ESP8266 & Android App.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
