Real Time GPS Tracker using ESP8266 & Blynk with Maps

This project is about a real-time GPS tracker that uses Google Maps and NodeMCU ESP8266. Before, we made a GSM+GPS Based Vehicle Location Tracker for keeping track of where a vehicle is.…

satellites to figure out where they are. The tracker uses a method called
PROJECT#447
TRACKIoT
PARTS04
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Real Time GPS Tracker using ESP8266 & Blynk with Maps is a iot project. This project is about a real-time GPS tracker that uses Google Maps and NodeMCU ESP8266. Before, we made a GSM+GPS Based Vehicle Location Tracker for keeping track of where a vehicle is.…

Source pages
1133-1137
Named parts
4
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY4 PART LINES
PARTTYPEQTYREADY
MNodeMCU ESP8266MODULE1
What's this?Image, role, pros, cons, handling & specifications
NodeMCU ESP8266 development boardMODULE LEARNING VIEW

NodeMCU ESP8266

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for NodeMCU ESP8266; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
PQuectel L86PART1
What's this?Image, role, pros, cons, handling & specifications
satellites to figure out where they are. The tracker uses a method calledPART LEARNING VIEW

Quectel L86

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Quectel L86; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
BJumper wireBUILD1
What's this?Image, role, pros, cons, handling & specifications
satellites to figure out where they are. The tracker uses a method calledBUILD LEARNING VIEW

Jumper wire

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for Jumper wire; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
MQuectel L86/L80 GPS ModuleMODULE1
What's this?Image, role, pros, cons, handling & specifications
satellites to figure out where they are. The tracker uses a method calledMODULE LEARNING VIEW

Quectel L86/L80 GPS Module

A sensor converts a physical condition into an electrical signal the circuit can measure.

What it does here

It provides project input as an analogue, digital, resistive, frequency, or calibrated signal.

Buy / compare this part

Advantages

  • Adds real-world awareness
  • Can usually be tested independently
  • Often supports calibration

Limitations

  • Readings can drift
  • Placement affects results
  • Some sensors need warm-up or calibration

Handling

  • Protect the sensing surface
  • Observe supply voltage and polarity
  • Keep signal leads away from noisy power wiring

Specifications to verify

  • Use the exact model, value, package, and rating listed for Quectel L86/L80 GPS Module; similar-looking parts are not always interchangeable.
  • Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

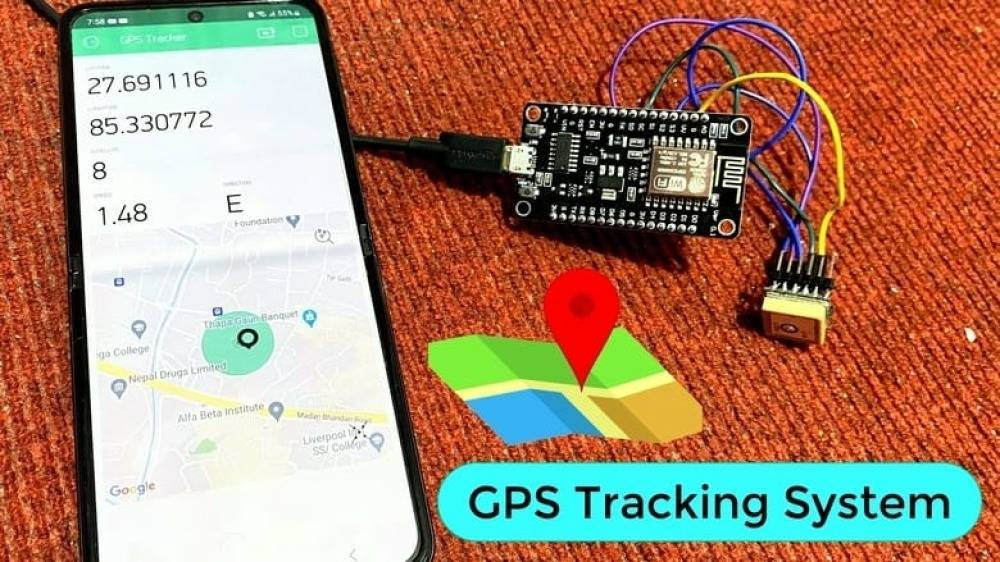

This project is about a real-time GPS tracker that uses Google Maps and NodeMCU ESP8266. Before, we made a GSM+GPS Based Vehicle Location Tracker for keeping track of where a vehicle is. We will track location with ESP8266 WiFi Module instead of GSM Module. A GPS tracker is a navigation device that is usually attached to a vehicle, asset, person, or animal. It uses the Global Positioning System (GPS) to figure out where it is and how it is moving. GPS tracking devices send out

special satellite signals that are read by a receiver. The tracking device stores locations or sends them to an Internet-connected device using the cellular network or WiFi all over the world. GPS trackers talk to a network of satellites to figure out where they are. The tracker uses a method called trilateration to figure out latitude, longitude, elevation, and time. This method uses the positions of three or more satellites from the Global Navigation Satellite System (GNSS) network and how far away they are from each other. We will connect the Quectel L86 GPS Module to the NodeMCU ESP8266 Board for this project. You can use Neo-6M GPS Module or any other similar GPS Module instead of Quectel L86 GPS Module. We will find the latitude, longitude, speed, heading, and location on Map by using the TinyGPS library. We'll send all of these parameters to the Blynk App and use the map and real-time data on the Blynk Dashboard to keep an eye on things.

02

Part Required

Project build note

NodeMCU ESP8266

Quectel L86 Jumper wire Breadboard Quectel L86/L80 GPS Module The L86 is a great choice for wearable fitness devices because it is small and doesn't need much power. Its Low Power feature lets it connect to GPS while using about half as much power as normal mode does when it is in static receiving mode. With its accuracy and high sensitivity, the L86 can be used for a wide range of Internet of Things (IoT) applications, such as portable devices, automotive, personal tracking, security, and industrial PDAs. The L86 has a patch antenna on top that is 16.0mm by 16.0mm by 6.45mm and has 66 channels for acquiring and 22 channels for tracking. It finds and follows satellites as quickly as possible, even when the signal is weak inside. The module works between 2.8V and 4.3V and uses about 20mA of power on average. When it is not being used, it uses about 1mA of power. Circuit for GPS Tracker using ESP8266 Now let's get to the project part and use ESP8266 and Blynk to make a real- time GPS tracker. The connection diagram is pretty easy to understand.

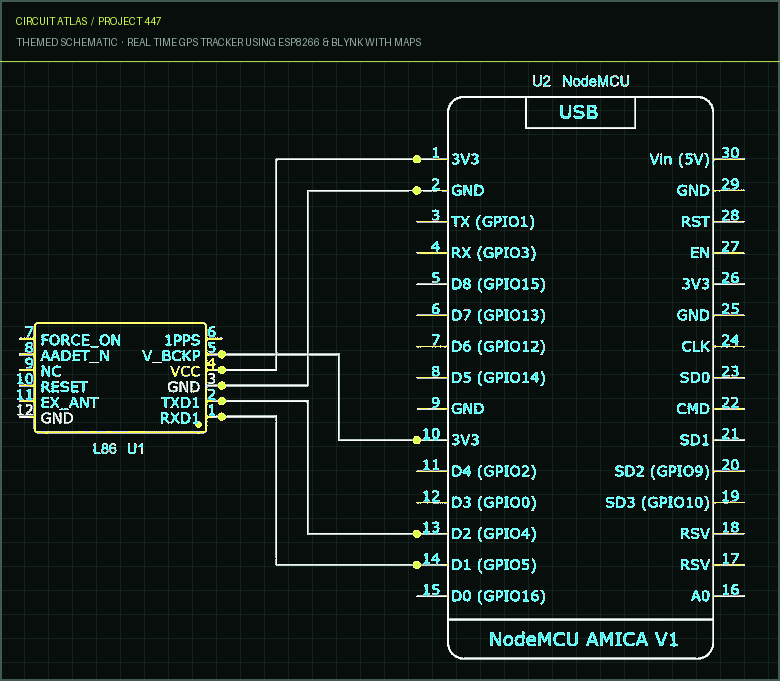

Connect the L86 GPS Module's VCC and GND pins to the 3.3V and GND pins on the NodeMCU ESP8266. Do not give more voltage than 3.3V. Connect the VCC backup (V BCKP) to the VCC power supply or an external battery. If this pin doesn't have power, it won't work Connect L86's RX and TX to the NodeMCU's D1 and D2. This is for Software Serial Serial Communication. You can connect the parts directly with a jumper wire or use a breadboard to put the circuit together. So, the hardware for the GPS Tracker that uses ESP8266 is now ready.
