Project build note463.ESP8266 and Android Home Automation with WiFi and Voice Control This project is all about using NodeMCU and Android to automate your home with WiFi and your voice. Here, we'll do the same thing, but instead of using Alexa, we'll make our own app on an Android phone that will let us control our home devices locally (with buttons or by voice).

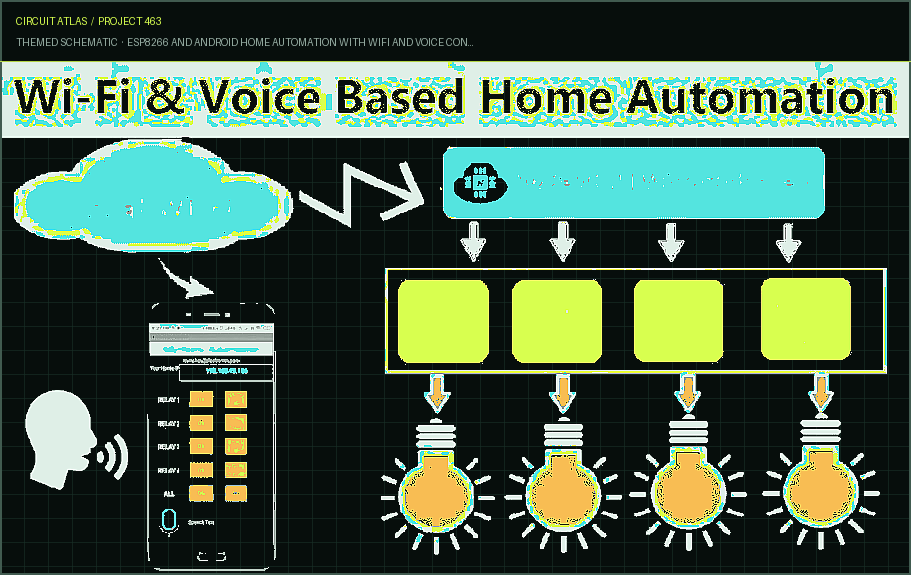

In this project, we will control 4 different LEDs by connecting a 4-channel relay to a NodeMCU ESP8266 12E Wifi Module. Four of these LEDs look like four different home appliances. We'll send a signal to NodeMCU using an Android app with 5+5 ON+OFF buttons to control relay output. There is a unique IP Address for each NodeMCU. We'll give this IP address to the Android app to control who can use it. In the same way, NodeMCU must be connected to local Wifi. GPIO Pins of NodeMCU are used to connect to a 4-channel relay. With the help of a 220-ohm resistor, the NodeMCU's output pin is linked to 4 different LEDs. The NodeMCU is hooked up to Local Wifi and can get signals from the Internet. The "Home Automation Control" app for Android is already on the Android Device. To control the inputs and outputs of NodeMCU, the IP address of NodeMCU is typed into the IP box of the Android App. After this is set up, you can use the Android App from anywhere in the world. Your Android phone works as a remote, NodeMCU works as a
receiver, and the signal is sent over the Internet We will use a 4 Channel relay module to control 4 LEDs that will act like 4 home devices.
Component Required
Project build noteNodeMCU ESP8266 Relay Module LED 5mm LED of Any Color Resistor 220 ohm Power Supply Connecting Wires Breadboard
Circuit Diagram

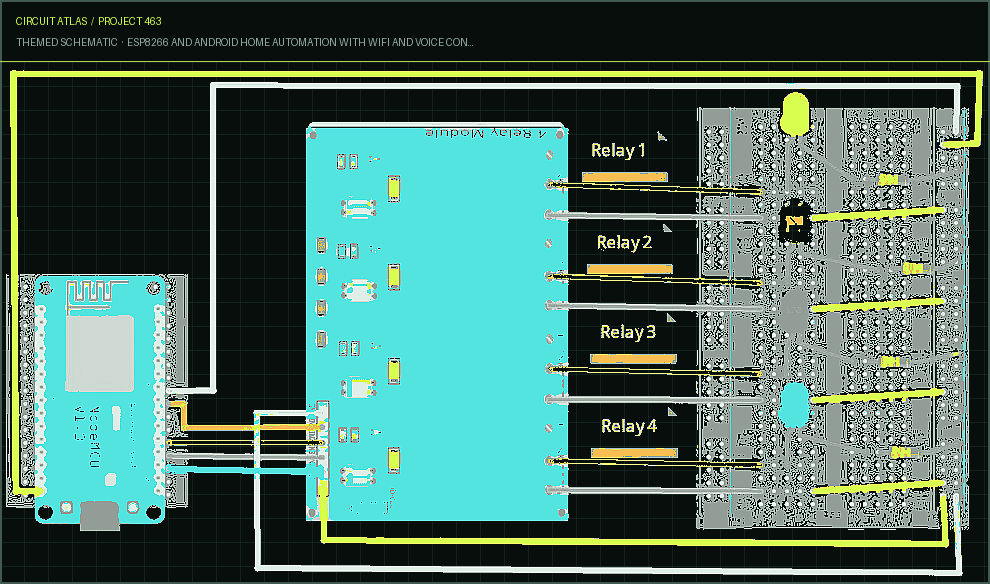

Project build noteConnect Relay Input Pin with NodeMCU as follows NodeMCU GPIO Pin 1 - Relay Input Pin 1 NodeMCU GPIO Pin 3 - Relay Input Pin 2 NodeMCU GPIO Pin 12 - Relay Input Pin 3 NodeMCU GPIO Pin 14 - Relay Input Pin 4
In the same way, connect the four outputs to four different LEDs using four resistors, as shown above.
The Android app for controlling WiFi and voice
Project build noteThe Android app will send a string that the code needs to figure out how to read in order to turn on each of the relays listed below
Relay1
Project build noteTurn-On: “r1on”; Turn-Off: “r1off”;
Relay2
Project build noteTurn-On: “r2on”; Turn-Off: “r2off”
Relay3
Project build noteTurn-On: “r3on”; Turn-Off: “r3off”
Relay4
Project build noteTurn-On: “r4on”; Turn-Off: “r4off” If "r1on" is sent as a command from the Android app, Relay1 must be turned on. We have also set up "group commands" to turn all devices on ("allon") or off ("all off") at the same time. In the same way, there is also an image for voice input that, when clicked, brings up a window for Google Assistant to accept voice commands.
Creating The Android App Using MIT App Inventor

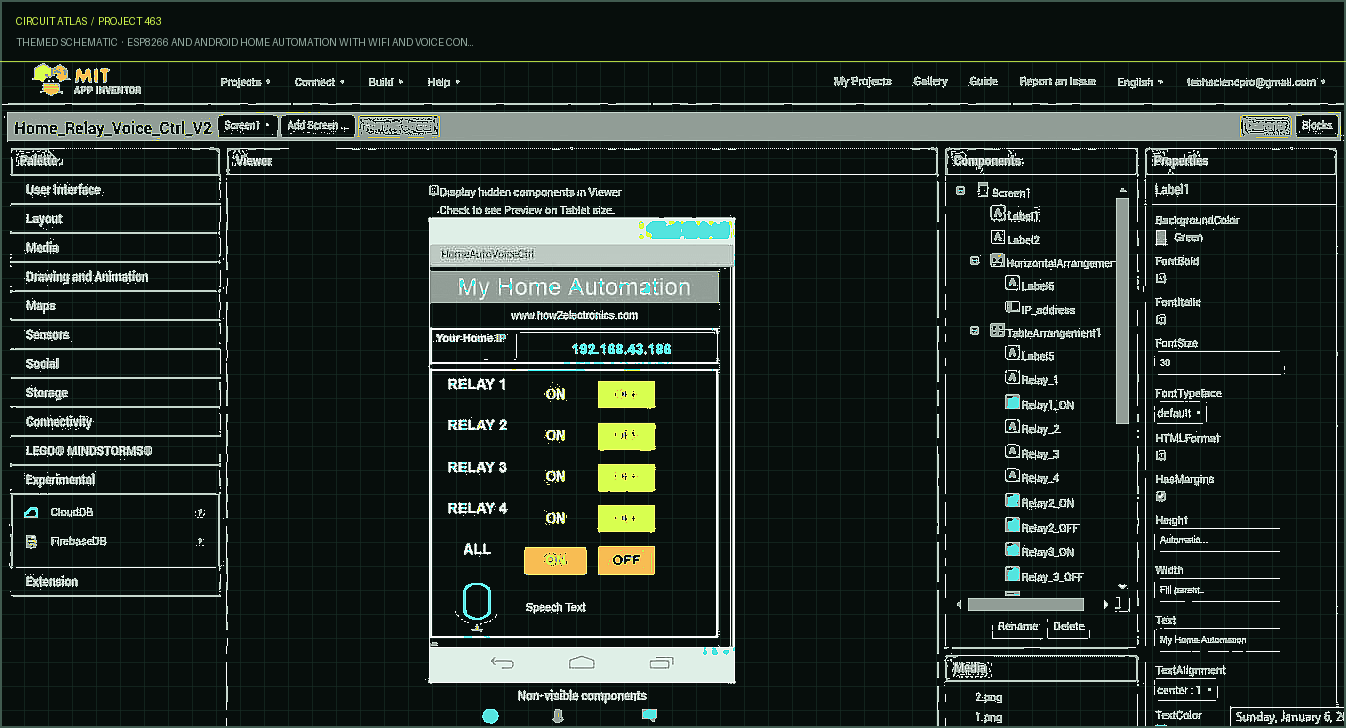

Project build noteYou can skip this step. Follow the link below to get the Android app right away. I also added a.aia link that you can use to download the file and change it to fit your needs. Go to http://ai2.appinventor.mit.edu/ and make a project to make an Android app.
