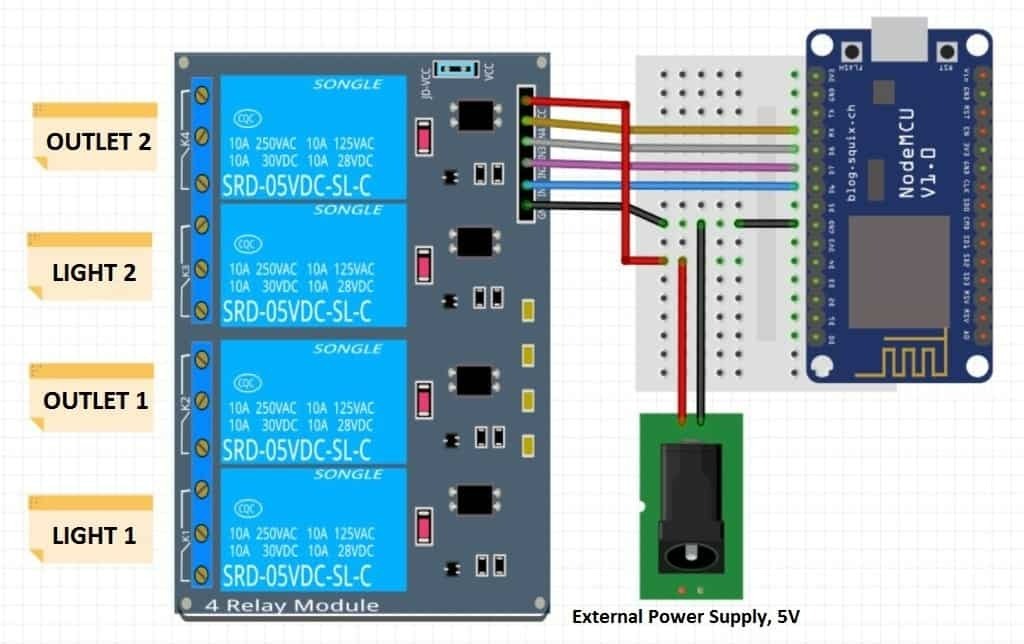

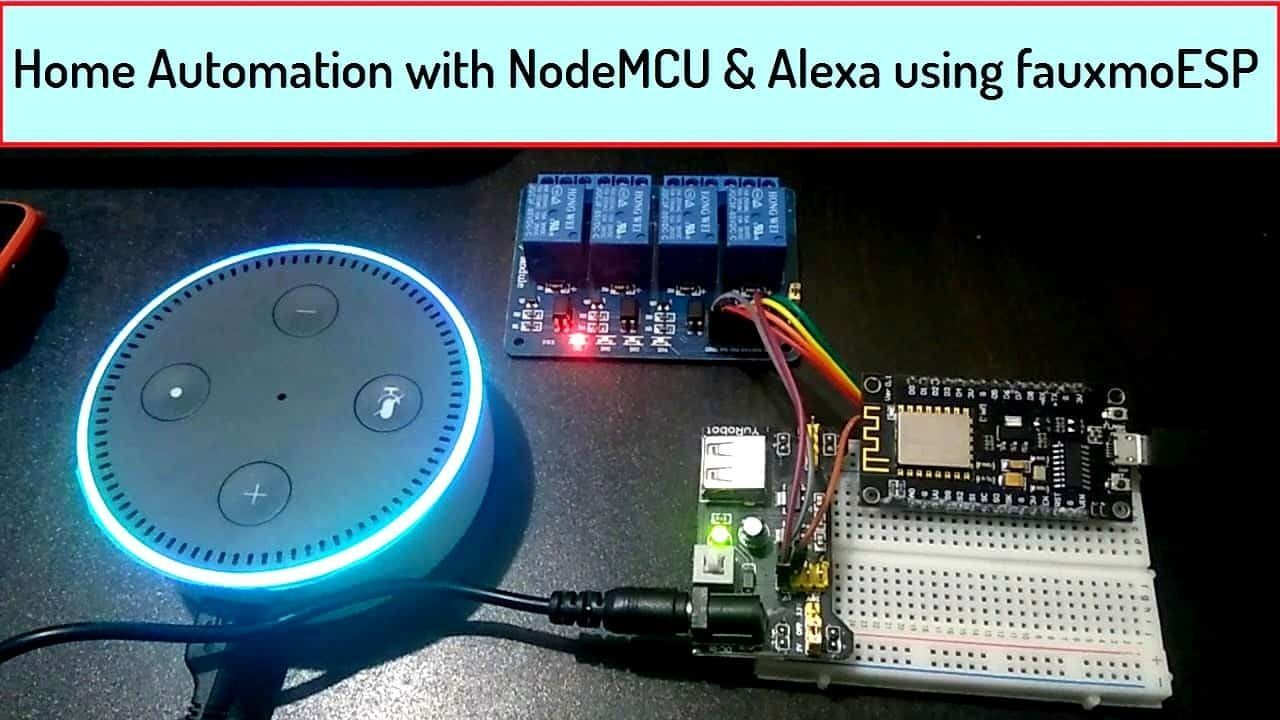

Voice Based Home Automation with NodeMCU & Alexa using fauxmoESP: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 4 visuals
Prepare, upload, and verify the program.
Follow the same software sequence every time: verify connections, prepare the toolchain, compile, and upload.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
- Install the current Arduino IDE or the software named in the guide.
- Install the correct board package and required libraries.
- Select the exact board, processor, and serial port.
- Compile once before connecting external loads.
How to upload code
- Connect the board with a data-capable USB cable.
- Open the documented sketch and confirm configuration values.
- Compile, fix the first reported error, and upload.
- Test with external loads disconnected first.
Common mistakes
Wrong port, missing library, incorrect board selection, boot pins held in the wrong state, or a busy serial port.
Setup for uploading Code & Libraries
Step 1: The first step is to configure Arduino's preferences for use with
NodeMCU.
Step 2: Select Preferences from the menu that appears when you navigate
to the Arduino IDE file. Then you should include the link that is shown
below in the "Additional Boards Manager URLs"
Installation of the NodeMCU board is the second step.
Navigate to Board Manager and install version 2.3.0 of the NodeMCU
Board. It's very important because, without it, Alexa won't be able to find
devices.
Step 3: Selection of the Board
Choose the NodeMCU board that corresponds to the right model.
Step 4: Adding Libraries
It is necessary for you to download three separate libraries and then
incorporate them into the Arduino IDE Library. These are the libraries:
1. The fauxmoESP Library (fake ESP)
2. ESPAsync TCP Library
3. Library for the ESPAsync Web ServerAssemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build note469.Voice Based Home Automation with NodeMCU & Alexa using fauxmoESP
The purpose of this post is to discuss voice-activated home automation using NodeMCU and Alexa with the help of fauxmoESP. The excellent open-source library and example that Xosé Perez developed served as the inspiration for this IOT Project tutorial (Tinkerman). fauxmoESP is a library for ESP8266-based devices that emulates a Belkin WeMo device. This allows you to control those devices using the WeMo protocol, in particular from Alexa-powered devices such as the Amazon Echo or the Dot. ESP is only compatible with devices that use the ESP8266 chip.
ALEXA & ECHO DOT
Project build noteAlexa is capable of voice interaction, the playback of music, the creation of to-do lists, the setting of alarms, the streaming of podcasts, the playback of audiobooks, and the provision of other real-time information such as the weather and traffic. Alexa can also serve as a hub for home automation, allowing it to control a variety of smart home devices. We are going to use this project called the "Echo-Dot," which enables users to activate the device by saying a wake word, like "Alexa" or "Computer," similar to how it is done in "Star Trek!" In the realm of home automation, Alexa is capable of interacting with a variety of different devices, including SmartThings, Belkin Wemo, Philips Hue, and others.

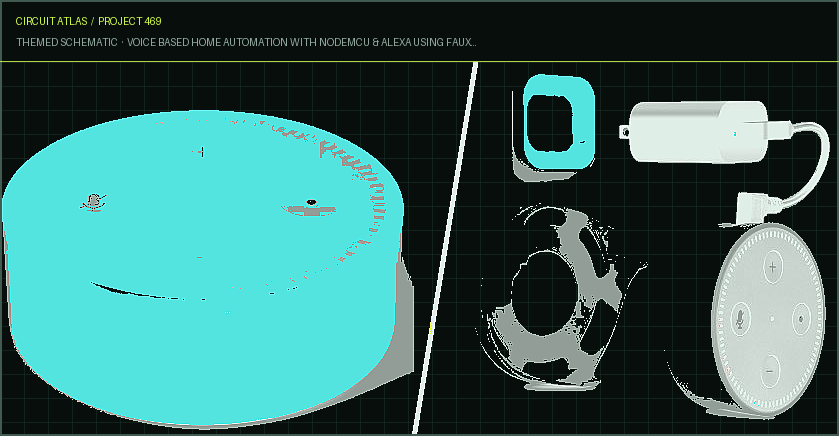

What is Echo Dot? The Echo Dot is a voice-activated speaker that enables users to control smart home devices, play music, make calls, get answers to questions, set alarms and timers, and much more through the use of Alexa.
Features
Project build note1. Stream songs from services such as Amazon Music, Spotify, Pandora, iHeartRadio, TuneIn, and SiriusXM. 2. Make calls or send messages to family and friends without having to physically pick up the phone, or drop in from the Alexa app on your smartphone to your Echo device. 3. Allows the user to control compatible connected devices such as lights, locks, thermostats, and more 4. If you want a louder sound, you can use the built-in speaker, or you can connect to external speakers via Bluetooth or an audio cable.
Components Required for this Project
Project build noteThe following are the list of components for designing Voice Based Home Automation with NodeMCU & Alexa Echo Dot. 1. NodeMCU ESP8266-12E 2. Echo Dot (2nd Generation) 3. 2 X Mini Breadboard 4. 4-Channel Relay Module 5. Male-Female Dupont Cables 6. External 5V power supply or Battery
Block Diagram

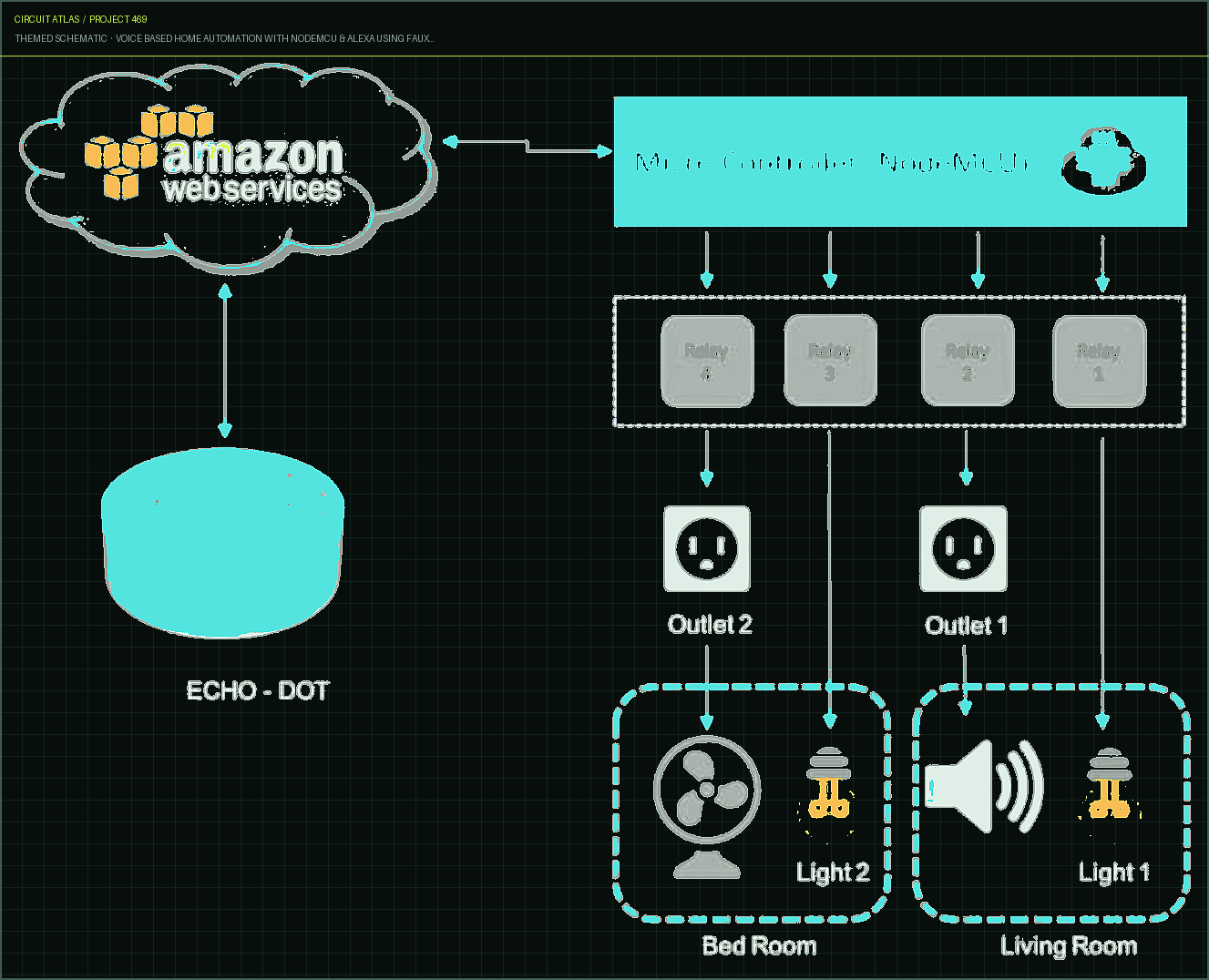

Project build noteThe following are depicted in the block diagram as being developed as part
of this project
Project build noteAlexa's brain is actually deployed on AWS, where she can use the same flexibility, large-scale infrastructure, and global network we built for our customers. If I am in my living room and I ask Alexa about the weather, I am setting off a complicated chain of events. Circuit Diagram: Voice Based Home Automation with NodeMCU & Alexa
In order to implement voice-activated home automation with NodeMCU and Alexa utilizing fauxmoESP, assemble the necessary hardware on your breadboard in the manner depicted in the figure.
You built Voice Based Home Automation with NodeMCU & Alexa using fauxmoESP.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
