Rechargeable Torch Based on White LED
There are a few drawbacks associated with rechargeable flashlights. You are going to need to charge the batteries and change the bulbs at regular intervals. For example, the typical incan…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Rechargeable Torch Based on White LED is a electronics project. There are a few drawbacks associated with rechargeable flashlights. You are going to need to charge the batteries and change the bulbs at regular intervals. For example, the typical incan…
- Source pages
- 100-102
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Transformer
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for Transformer; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
MAXIMUM
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for MAXIMUM; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2, LED4 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2, LED4 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Rechargeable Torch Based on White LED: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteThere are a few drawbacks associated with rechargeable flashlights. You are going to need to charge the batteries and change the bulbs at regular intervals. For example, the typical incandescent light-emitting diode (LED) torch uses approximately 2 watts of power. This white LED-based rechargeable torch has a service life that is 60

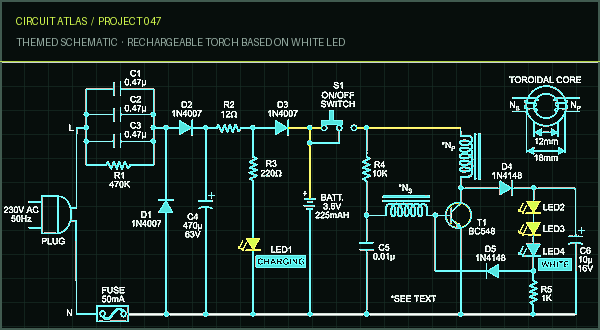

percent longer than the typical incandescent torch and only consumes 300 milliwatts of power throughout its operation. Circuit for a rechargeable flashlight with LEDs Fig. 1: Circuit diagram of the LED based rechargeable torch The schematic for the torch's rechargeable white LED-based circuit is shown in Figure 1. The current that can flow through the charger circuit is governed by the reactive impedance of capacitors C1 through C3, which are rated for 250V AC. After the battery has been charged, the capacitors have a channel to discharge, which is provided by the resistor that is placed across the capacitors. When the red LED1 lights up, it means that the charging circuit is now operational. The flashlight is powered by three NiMH rechargeable button cells, each of which has a voltage of 1.2V and a capacity of 225 mAH. The minimum amount of time required for a regular recharge is twelve hours. Following a complete recharge, the battery will have a time of approximately 2.5 hours in which it can be used continuously. Recharging the battery to its maximum capacity as soon as possible after use will ensure its continued dependability and longevity. The current during charging is approximately 25 mA.

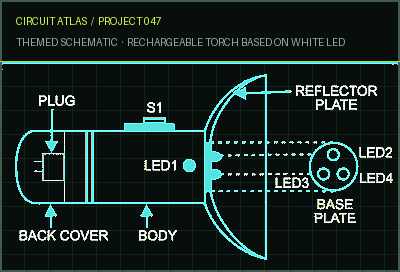

Fig. 2: Suggested enclosure for the torch To provide power to the white LEDs, you will need a circuit that boosts the voltage (LED2 through LED4). Increasing the voltage requires the utilization of an inverter circuit. The schematic provides information regarding the winding of the inverter transformer, which makes use of an insulated ferrite toroidal core. In the primary coil (NP) and secondary coil (NS), there are a total of 30 and 3, respectively, turns of wire with a gauge of 35 standard gauge. In the event that the inverter does not oscillate, you will need to switch the polarity of either the primary or the secondary winding, but not both. The output is maintained in a consistent and regulated state thanks to a reference voltage that comes from resistor R5, which also provides reflected biasing to the transistor. Fig.2 shows the case that is suggested for the torch.
