How Does a NEO-6M GPS Module Work and How to Interface it with ESP32
with ESP32 If you are an embedded engineer who works in the electronic industry, there may come a time when you are faced with a situation in which you need to determine the position of a…

Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
How Does a NEO-6M GPS Module Work and How to Interface it with ESP32 is a iot project. with ESP32 If you are an embedded engineer who works in the electronic industry, there may come a time when you are faced with a situation in which you need to determine the position of a…
- Source pages
- 1346-1354
- Named parts
- 6
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications

A Brief Introduction to the NEO-6M GPS Module
A sensor converts a physical condition into an electrical signal the circuit can measure.
What it does hereIt provides project input as an analogue, digital, resistive, frequency, or calibrated signal.
Buy / compare this part ↗Advantages
- Adds real-world awareness
- Can usually be tested independently
- Often supports calibration
Limitations
- Readings can drift
- Placement affects results
- Some sensors need warm-up or calibration
Handling
- Protect the sensing surface
- Observe supply voltage and polarity
- Keep signal leads away from noisy power wiring
Specifications to verify
- Use the exact model, value, package, and rating listed for A Brief Introduction to the NEO-6M GPS Module; similar-looking parts are not always interchangeable.
- Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
What's this?Image, role, pros, cons, handling & specifications

ESP32
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for ESP32; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications

GSM module
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for GSM module; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications

GPS module
A sensor converts a physical condition into an electrical signal the circuit can measure.
What it does hereIt provides project input as an analogue, digital, resistive, frequency, or calibrated signal.
Buy / compare this part ↗Advantages
- Adds real-world awareness
- Can usually be tested independently
- Often supports calibration
Limitations
- Readings can drift
- Placement affects results
- Some sensors need warm-up or calibration
Handling
- Protect the sensing surface
- Observe supply voltage and polarity
- Keep signal leads away from noisy power wiring
Specifications to verify
- Use the exact model, value, package, and rating listed for GPS module; similar-looking parts are not always interchangeable.
- Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
What's this?Image, role, pros, cons, handling & specifications

NETWORK
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NETWORK; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications

NEWER
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NEWER; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
How Does a NEO-6M GPS Module Work and How to Interface it with ESP32: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.

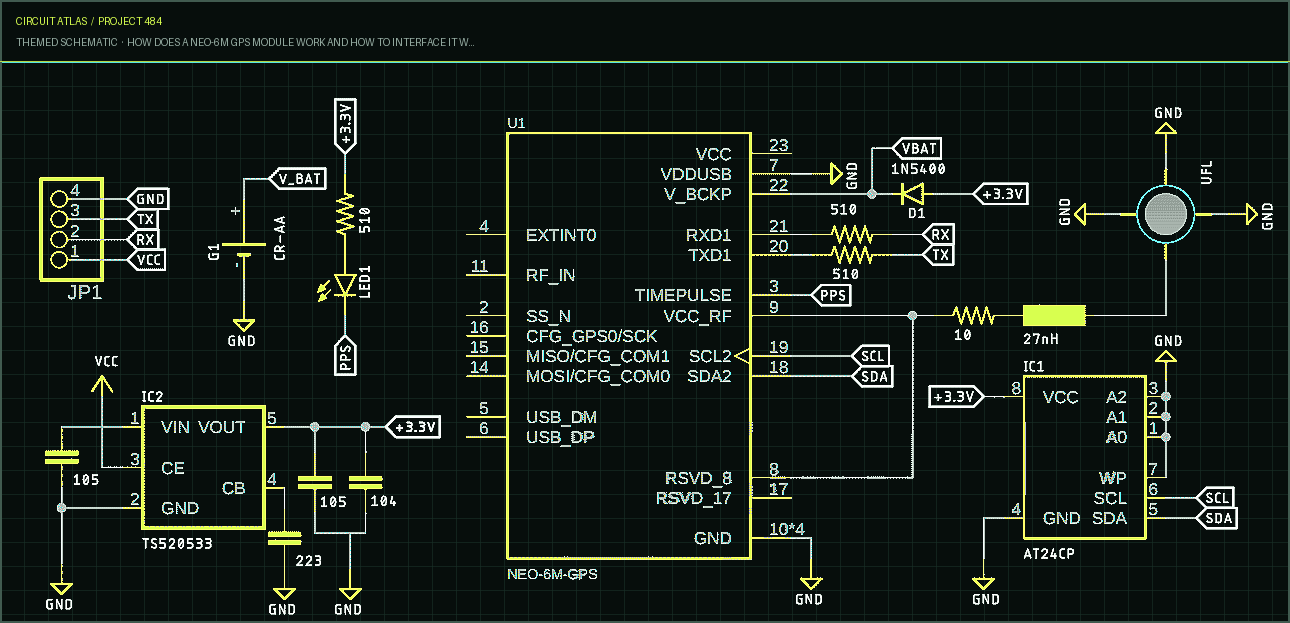

Open all source diagrams and build views 4 visuals




Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build notewith ESP32 If you are an embedded engineer who works in the electronic industry, there may come a time when you are faced with a situation in which you need to determine the position of a moving object or the altitude and velocity of a specific location. Alternatively, you may need to determine the altitude and velocity of an entire location. Given that a GPS module could prove to be rather useful in a scenario like this one, we made the decision to interface the NEO-6M GPS GSM module with the ESP32 in this post. In addition to that, we will discuss all of the benefits and drawbacks of using this device, so without further ado, let's go right into it. NEO-6M GPS Chip is capable of tracking up to 22 satellites simultaneously across 50 channels, and it achieves the industry's highest level of sensitivity, measuring in at -161 dB tracking, all while consuming only 45mA of supply current. This is a significant improvement over previous generations
of GPS chips. In addition to this, the u-blox 6 positioning engine has a Time-To-First-Fix (TTFF) that is lower than 1 second. No matter if you are connected to the internet or not, you can always use GPS on your mobile device. As long as you have a charged smartphone, you can find your way around unfamiliar or remote places. It is not necessary to have internet connectivity or cellular service for the GPS tracking feature on your phone to work properly. NEO-6M GPS Module Pinout GND, TxD, RxD, and VCC are the four pins that are included on the NEO-6M GPS module. Communication with the microcontroller is accomplished through the use of the TxD and RxD pins. GND is the GPS Module's ground pin, and it should be connected to the ESP32's ground pin.

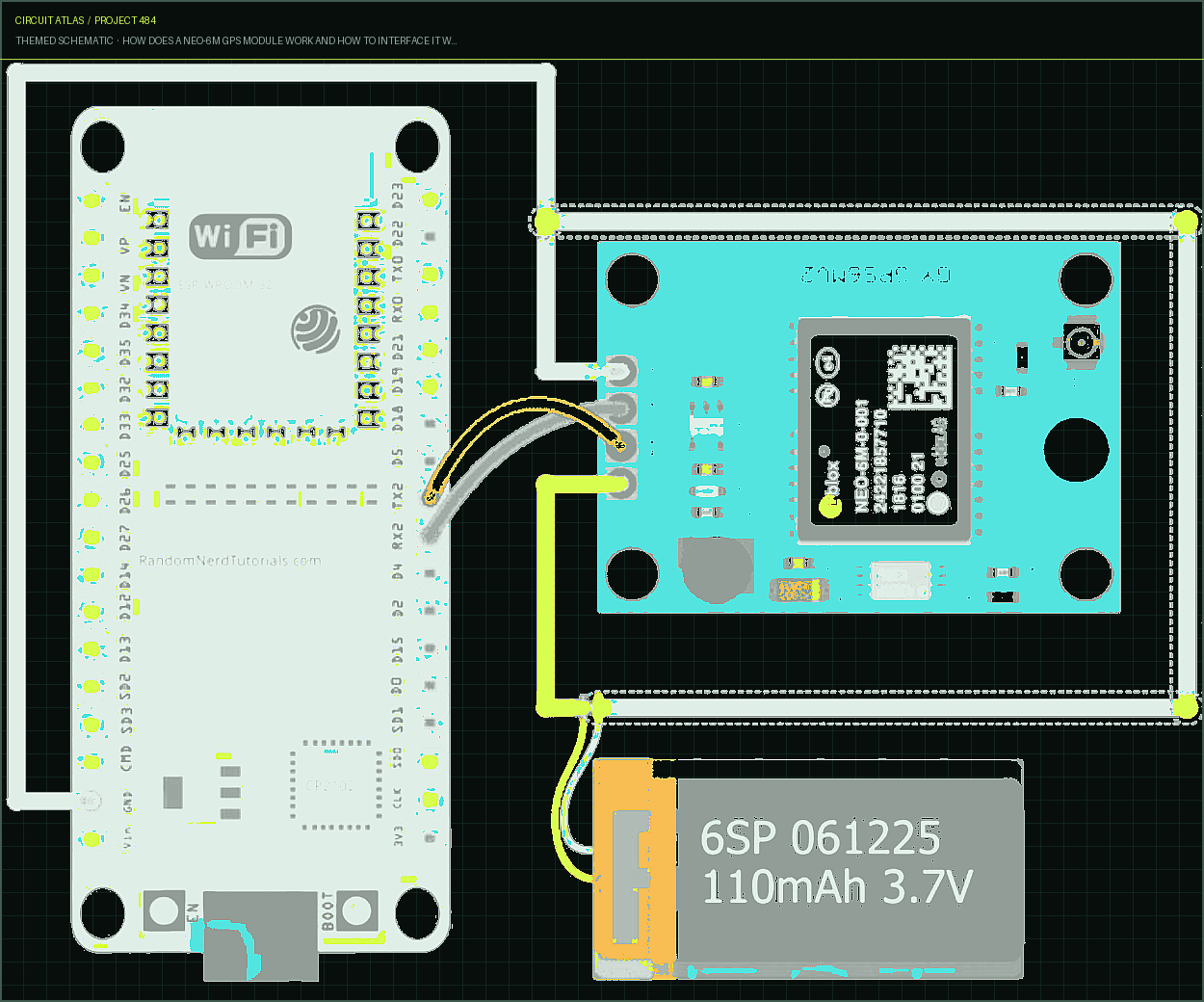

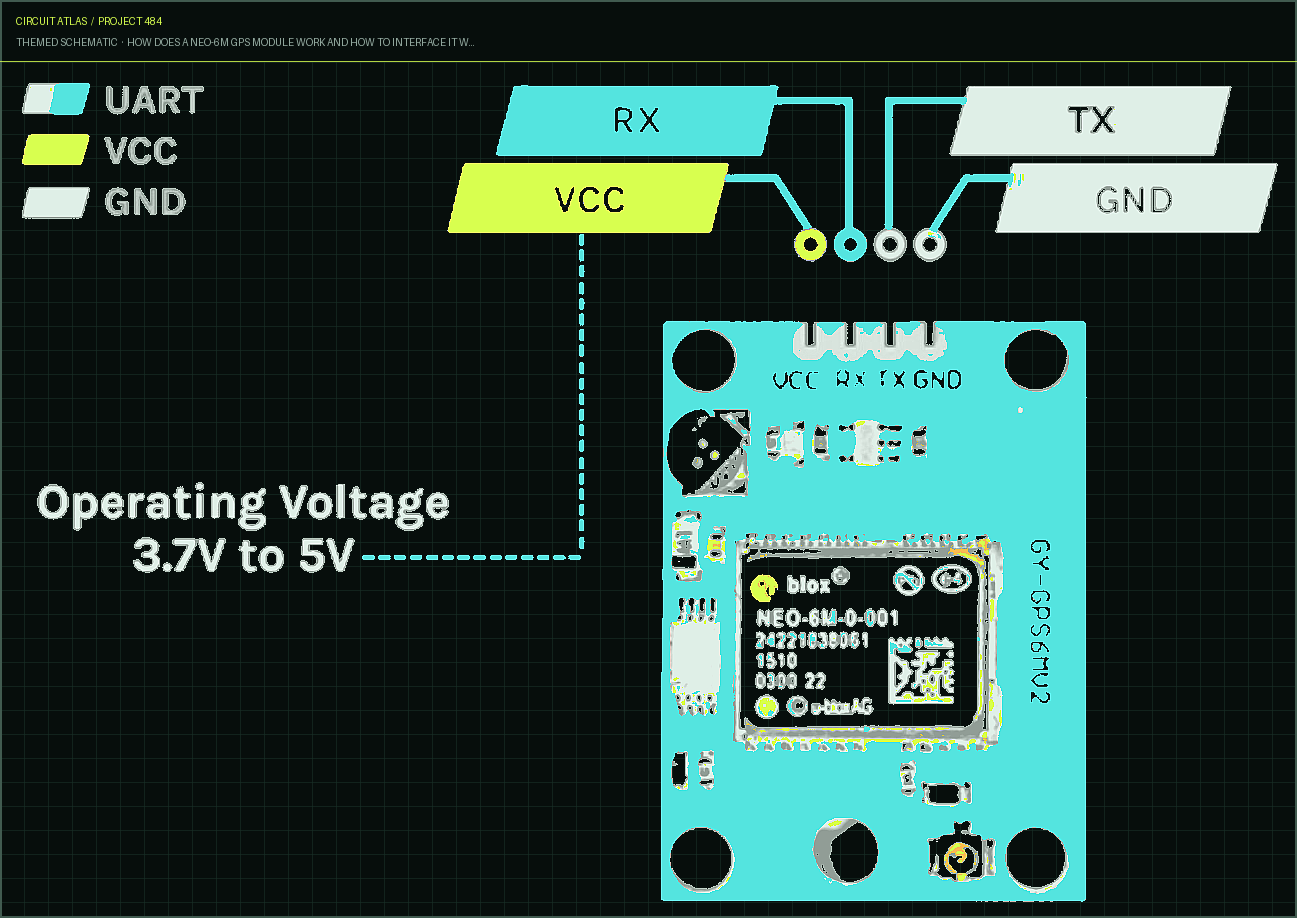

TXD is the GPS module's transmit pin, which must be connected to the ESP32's RX pin. RXD is the GPS module's receive pin, which must be connected to the ESP32's TX pin. VCC is the GPS module's power pin, and it must be connected to the ESP32's 3.3V pin. NEO-6M GPS Module – Parts The NEO-6M module is a GSM module that is already configured for use and may be used in a wide variety of contexts. The following is a list of the
components that make up the NEO-6M GPS module

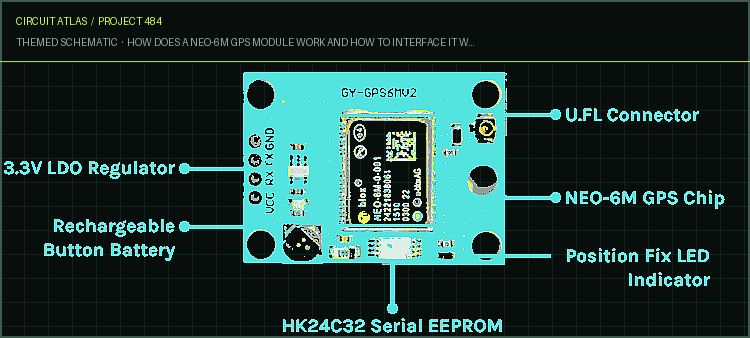

Project build noteThere are five primary components on the board that make up the NEO-6M GPS module. The NEO-6M GPS chip, which is located in the center of the PCB, is the first major component. Following that, we have a serial EEPROM module as well as a rechargeable battery. The clock data, the most recent position data (GNSS orbit data), and the module configuration can be retained with the use of an EEPROM and a battery, although this type of memory is not designed for long-term data storage. When the battery is removed, the GPS always starts from a cold start, which causes the initial GPS lock to take significantly more time. When electricity is supplied, the battery will begin charging itself automatically, and it can
