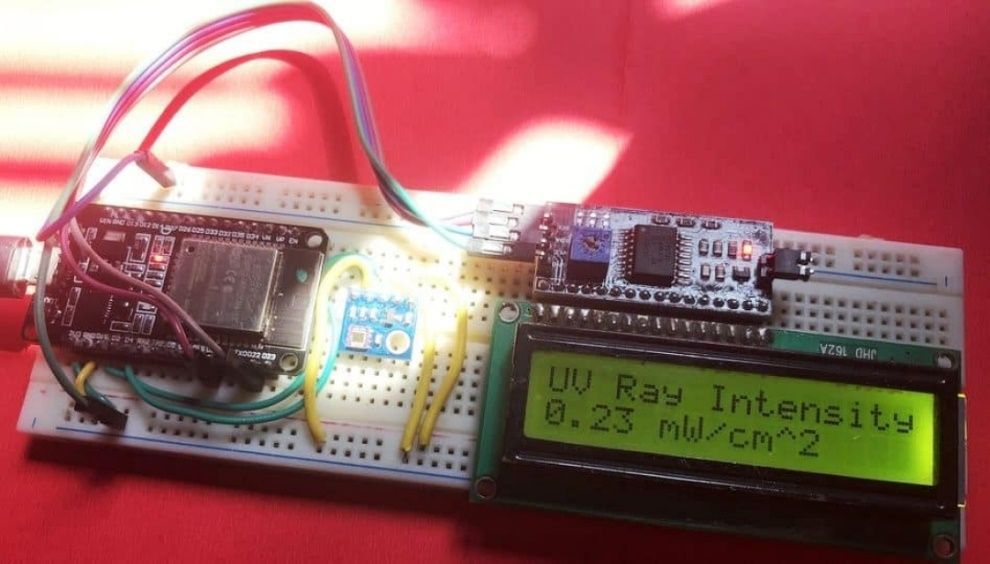

UV Index Meter with ESP32 & UV Sensor ML8511
In this project, we are measuring the intensity of ultra violet light in terms of milliwatts per square centimeter by interfacing an ML8511 UV Sensor with an ESP32. Within the electromagn…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
UV Index Meter with ESP32 & UV Sensor ML8511 is a iot project. In this project, we are measuring the intensity of ultra violet light in terms of milliwatts per square centimeter by interfacing an ML8511 UV Sensor with an ESP32. Within the electromagn…
- Source pages
- 1429-1433
- Named parts
- 6
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
- Computer with a data-capable USB cable
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
ESP32 Board ESP32 ESP-32S Development Board (ESP
A programmable controller that reads inputs, makes decisions, and drives the project's outputs.
What it does hereIt is the control centre and must use the documented board, pin map, supply, and logic level.
Buy / compare this part ↗Advantages
- Reprogrammable and reusable
- Large learning ecosystem
- Complex behaviour remains changeable
Limitations
- GPIO voltage and current are limited
- Some pins affect boot or communication
- Loads normally need a driver
Handling
- Disconnect power before rewiring
- Avoid static discharge
- Never power motors, relays, or pumps directly from GPIO
Specifications to verify
- Use the exact model, value, package, and rating listed for ESP32 Board ESP32 ESP-32S Development Board (ESP; similar-looking parts are not always interchangeable.
- Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
What's this?Image, role, pros, cons, handling & specifications
WROOM-32)
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for WROOM-32); similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
UV Sensor UV Sensor ML8511
A sensor converts a physical condition into an electrical signal the circuit can measure.
What it does hereIt provides project input as an analogue, digital, resistive, frequency, or calibrated signal.
Buy / compare this part ↗Advantages
- Adds real-world awareness
- Can usually be tested independently
- Often supports calibration
Limitations
- Readings can drift
- Placement affects results
- Some sensors need warm-up or calibration
Handling
- Protect the sensing surface
- Observe supply voltage and polarity
- Keep signal leads away from noisy power wiring
Specifications to verify
- Use the exact model, value, package, and rating listed for UV Sensor UV Sensor ML8511; similar-looking parts are not always interchangeable.
- Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
What's this?Image, role, pros, cons, handling & specifications
MODULE LEARNING VIEWLCD Display 16X2 I2C LCD Display
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for LCD Display 16X2 I2C LCD Display; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
Connecting Wires Jumper Wires
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Connecting Wires Jumper Wires; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
UV Sensor ML8511
A sensor converts a physical condition into an electrical signal the circuit can measure.
What it does hereIt provides project input as an analogue, digital, resistive, frequency, or calibrated signal.
Buy / compare this part ↗Advantages
- Adds real-world awareness
- Can usually be tested independently
- Often supports calibration
Limitations
- Readings can drift
- Placement affects results
- Some sensors need warm-up or calibration
Handling
- Protect the sensing surface
- Observe supply voltage and polarity
- Keep signal leads away from noisy power wiring
Specifications to verify
- Use the exact model, value, package, and rating listed for UV Sensor ML8511; similar-looking parts are not always interchangeable.
- Confirm supply range, output type, measurement range, accuracy, response time, and pin order.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
UV Index Meter with ESP32 & UV Sensor ML8511: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 4 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteIn this project, we are measuring the intensity of ultra violet light in terms of milliwatts per square centimeter by interfacing an ML8511 UV Sensor with an ESP32. Within the electromagnetic spectrum, the range of wavelengths known as ultraviolet light radiation, or UV Radiation, extends from 10 nm to 400 nm. Therefore, the GY/ML8511 sensor manufactured by lapis semiconductor is very helpful in order to get effective output in accordance with UV light. This wavelength is classified as part of the UVB- burning rays’ spectrum and most of the UVA-tanning rays spectrum. The ML8511 UV sensor is able to detect light with a detection range of 280 nm to 390 nm in a more efficient manner. The ML8511 sensor is exceptionally simple to operate. It gives forth an analog voltage that is linearly related to the UV intensity that has been measured (in mW/cm2) as its output. If your microcontroller is capable of converting analogue signals to voltage, then you will be able to determine the amount of UV present. It has a low supply current of only 300 uA, and
it has a low standby current of only 0.1 a. It has a small and thin surface- mount package that measures 4.0mm x 3.7mm x 0.73mm (0.16 inches x 0.15 inches x 0.03) and is made of ceramic with 12 pins QFN.
Part Required
Project build noteESP32 Board ESP32 ESP-32S Development Board (ESP- WROOM-32) UV Sensor UV Sensor ML8511 LCD Display 16X2 I2C LCD Display Connecting Wires Jumper Wires Breadboard
UV Sensor ML8511 The ML8511 UV sensor is an ultraviolet light sensor that is straightforward to operate. In order to perform its function, the MP8511 UV (ultraviolet) Sensor sends out an analog signal that is proportional to the amount of UV light that it detects. This breakthrough could be very useful in the creation of gadgets that alert the user of sunburn or detect the UV index in relation to the conditions of the environment. This sensor is particularly sensitive to light with a wavelength between 280 and 390 nm. This is considered to be the majority of the ultraviolet A (tanning rays) spectrum as well as a portion of the ultraviolet B (burning rays) spectrum. It gives forth an analog voltage that is linearly related to the UV intensity that has been measured (in mW/cm2) as its output. If your microcontroller is capable of converting analog signals to digital ones, then you will be able to determine the amount of UV present.

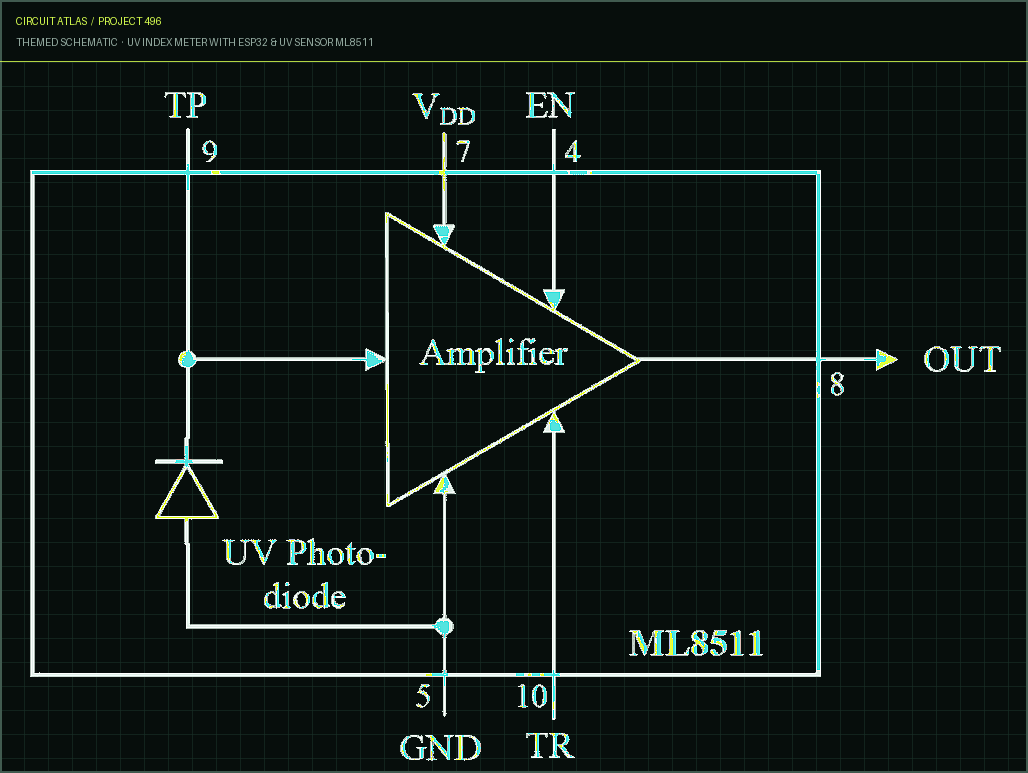

Block Diagram
Project build noteThe photodiode in the UV Sensor ML8511 is sensitive to both UV-A and UV-B light. Then, it contains an embedded operational amplifier that is located internally, and this amplifier will convert photocurrent to voltage output based on how intense the UV light is. At all times, an analog voltage will be delivered as the output. The voltage output makes it simple to communicate with ADC and microcontrollers that are external to the device.

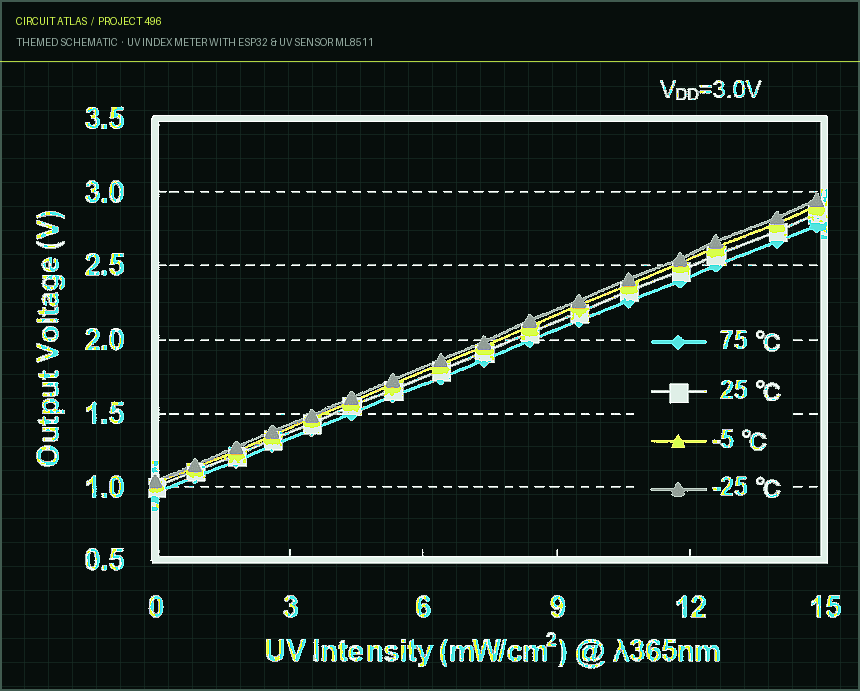

UV Characteristics
The characteristics are drawn between the output Voltage from the sensor and the UV intensity measured in mW/cm2 while the supply voltage is held constant at VDD. The operation of the sensor throughout the various temperature ranges is represented by the curves of a variety of hues. UV Index Meter with ESP32 & UV Sensor ML8511 The following is a circuit diagram that illustrates how to interface a UV sensor ML8511 with an ESP32 and an I2C LCD Display. LCD receives 5V, and its ground terminal (GND) is connected to the ground terminal on ESP32. The GPIO22 and GPIO21 pins on the ESP32

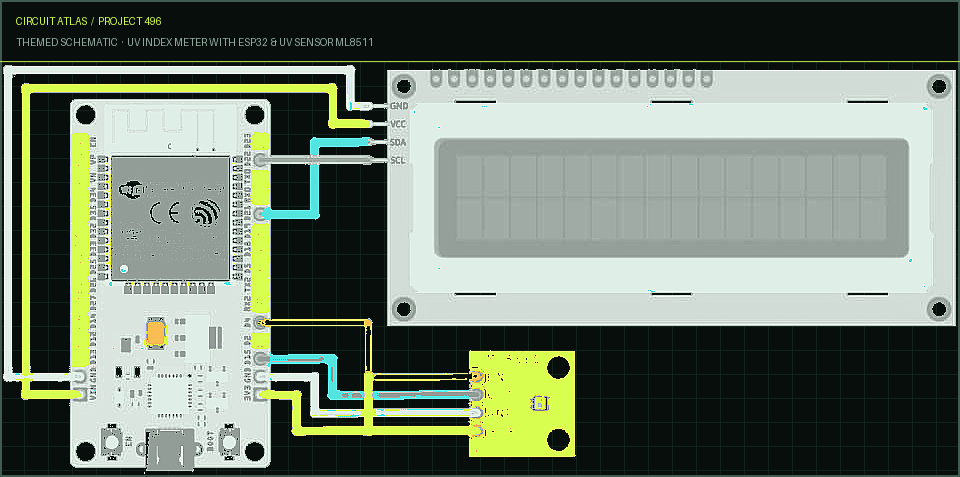

are connected to the SCL and SDA pins of the I2C LCD. Vin, 3V3, GND, OUT, and EN are the five pins that are featured on the UV Sensor. There are some modules that do not have the Vin pin, even though it is not required. The 3.3V pin of the ESP32 can be reached by connecting the EN pin and the 3V3 pin. The same 3V3 Pin that is attached to Analog pin GPIO4, which is utilized as a reference voltage, is also connected to another analog pin. The ESP32's out pin is connected to the GPIO, and the GND pin is connected to the GND pin. This connection for ML8511 is a little bit difficult to understand. The use of VCC is necessary for any conversion from analog to digital. We are operating under the assumption that this is 5.0V; however, depending on how the board is powered, this might be as high as 5.25V or as low as 4.75V. The analog-to-digital converter (ADC) on the ESP32 is fairly imprecise as a result of this unknown timeframe. In order to resolve this issue, we make use of the extremely precise onboard 3.3V reference, which is accurate to within 1%. Therefore, we can derive a true-to-life value, regardless of what VIN is (as long as it's over 3.4V), by doing an analog-to- digital conversion on the 3.3V pin (by attaching it to GPIO4) and then comparing this result against the reading from the sensor. After the code has been uploaded, you will be able to view the UV Index when the device is exposed to sunlight.
You built UV Index Meter with ESP32 & UV Sensor ML8511.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
