Project overview

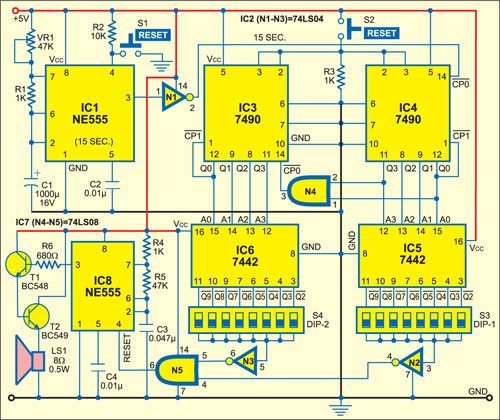

Project build noteAfter the predetermined time of 22 minutes, this geyser timer circuit will emit an alert signaling that the water has reached the desired temperature. The component in question is a timer IC 555 that has been hooked up as an astable multivibrator and has an adjustable time period of 15 seconds. The astable output, which has been inverted by an inverter, then drives the decade counters IC3 and IC4, both of which are IC 7490s and are connected in cascade. The output of the decade counter is connected, respectively, to the decoders IC5 and IC6 (both of which are IC 7442). The outputs of the decoders, which are the Q8 outputs of IC5 and IC6, are connected to inverters, and the outputs of the inverters are connected to an AND gate. In order to activate the alarm, the AND output is wired up to the reset pin of the astable multivibrator that was constructed using an additional timer IC 555. You are free to switch off the geyser at this time.
Geyser timer circuit As the indicator for the power supply, a green LED (LED1) has been implemented. Both the timer and the geyser should be turned on at the same time. When the alarm goes off, it indicates that the water in the geyser has reached the temperature at which it may be utilized and has been heated.
Construction & testing
Project build noteYou can assemble the timer circuit on a PCB that is designed for general purposes and then install it next to your bathroom. This will allow you to turn on both the timer circuit and the geyser at the same time. In the event that additional time for the geyser is required after the siren goes off, we can reset the circuit by momentarily pushing the reset switches S1 and S2 in order to extend it by an additional 22 minutes. If you want to change the preset time of the geyser, you can easily do so by combining the appropriate outputs of IC5 and IC6 using the DIP switches (S3 and S4). However,
you will need to keep in mind that the IC5 outputs (Q0 through Q9) are spaced 15 seconds apart, whereas the IC6 outputs are spaced 150 seconds (2.5 minutes) apart. Caution Please be aware that the geyser circuit and the timer circuit are completely separate from one another. While the timer operates on 5V DC, the geyser requires 220V AC to function properly.
