Zener Value Evaluator
You may determine the breakdown voltage value of any zener diode by using this straightforward Zener value evaluator circuit in conjunction with a different zener diode whose value is alr…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Zener Value Evaluator is a electronics project. You may determine the breakdown voltage value of any zener diode by using this straightforward Zener value evaluator circuit in conjunction with a different zener diode whose value is alr…
- Source pages
- 117-120
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWNE555
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for NE555; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
T1 - transistor stage identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1 - transistor stage identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Zener Value Evaluator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

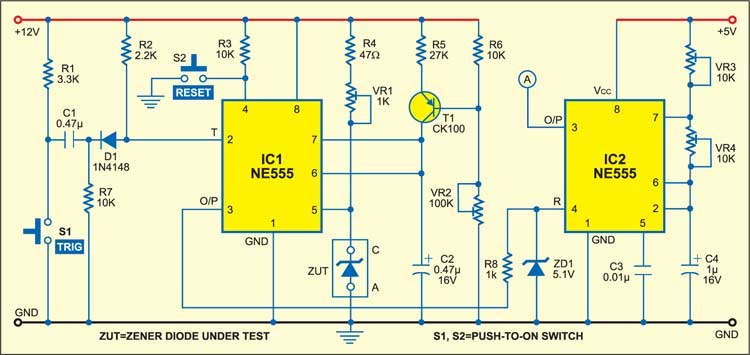

Project build noteYou may determine the breakdown voltage value of any zener diode by using this straightforward Zener value evaluator circuit in conjunction with a different zener diode whose value is already known. The zener evaluator and the display unit are the two components that make up the rest of the circuit. While only 5V is required to power the display part, the zener evaluator section requires regulated voltages of 12V and 5V to function properly. Establish connections between the corresponding terminals of the display section and the +5V, point A, and ground outputs of the zener evaluator section. A linear ramp generator that is based on a NE555 timer and an astable multivibrator that is based on a different NE555 make up the components of the zener evaluator circuit. The resistor that was previously present in the monostable has been swapped out for a source of constant current that is formed by the transistor T1. The linear charging of capacitor C2 is accomplished by the source of constant current provided by transistor T1.
Display Unit The following equation can be used to determine the time period T of the linear ramp that is created by IC1 at its pin 6 across capacitor C2: When you plug in the values that are displayed in Figure 1, you get: T equals 0.1500 seconds (approx.) This value corresponds to the Ton of the monostable when the zener is not connected to the control voltage on pin 5. Now connect the zener to the terminal for the control voltage, and activate the monostable (IC1) by briefly depressing switch S1. The astable multivibrator receives the output pulse width from IC1, which it then uses (IC2). The astable multivibrator

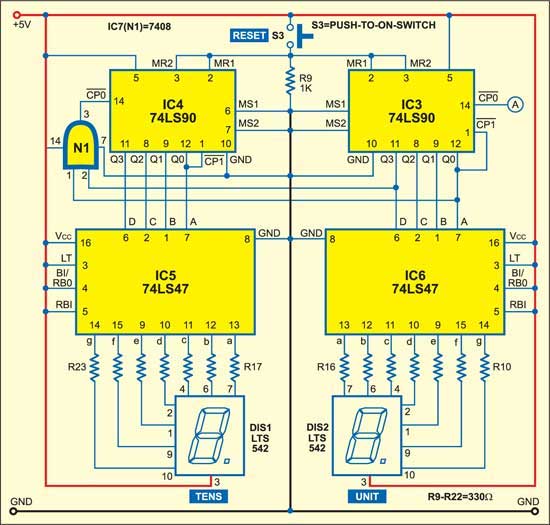

has an oscillation time period of around 7 milliseconds (ms), and it continues to do so for as long as the ramp output of IC1 remains high. Figure 2 depicts the display unit that consists of decade counter ICs 74LS90, decoder/driver ICs 74LS47, and 7-segment common-anode displays LTS542. Both IC3 and IC4 are decade counters, and they both count the frequency that is applied to the clock pin 14 of IC3, which comes from pin 3 of IC2. IC 74LS90 is a 4-bit ripple decade counter. When the output of IC3 is '10' (1001), it supplies a clock for additional counting at pin 14 of IC4 (through AND gate N1). Simply holding down the reset switch, S3, for a few moments will reset both IC3 and IC4. Common-anode displays DIS1 and DIS2 are connected to 7-segment decoders/drivers IC6 and IC5, respectively. These components, in turn, are connected to common-anode displays for the purpose of displaying the frequency of astable multivibrator IC2, which is used to evaluate the unknown value of the zener diode. The outputs of decade counters IC3 and IC4 are connected to 7-segment
