Doorbell-Cum-Visitor Indicator
This doorbell cum visitor indicator circuit also has the capability of identifying guests who come to your house when you are not there to greet them. When you are at home, it can functio…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Doorbell-Cum-Visitor Indicator is a electronics project. This doorbell cum visitor indicator circuit also has the capability of identifying guests who come to your house when you are not there to greet them. When you are at home, it can functio…
- Source pages
- 120-121
- Named parts
- 3
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWBC548
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for BC548; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
T1, T2 - transistor stages identified in the circuit
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for T1, T2 - transistor stages identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2, LED16 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2, LED16 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Doorbell-Cum-Visitor Indicator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

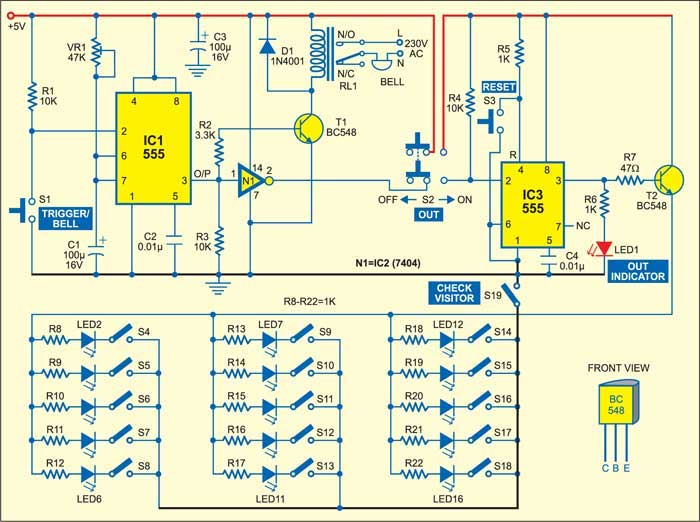

Project build noteThis doorbell cum visitor indicator circuit also has the capability of identifying guests who come to your house when you are not there to greet them. When you are at home, it can function as a standard doorbell for your convenience. The circuit (see Fig. 1) includes the following components: a monostable constructed around the timer IC 555 (IC1), a relay driver transistor BC548 (T1), an inverter section constructed around the IC 7404 (IC2), a latching section constructed around the IC 555 (IC3), and an LED display driver transistor BC548 (T2). The relay is controlled by the monostable output, which is sent into transistor amplifier T1. As shown in Figure 1, the normally-opened (N/O) contact of the relay establishes a connection between an electric bell and the mains supply. Inverter N1, which in turn enables the latching circuit designed around IC3 in conjunction with DPDT slide switch S2, receives the output of the monostable, which also passes to inverter N1. Through LED driver transistor T2, the output of IC3 at its pin 3 is supplied to LED1 (the visitor-out indicator), as well as LED2 all the way through LED16.
Visitor indication circuit Before you leave the house, make sure that the switch labelled "Out" is in the "on" position and that reset switch S3 has been pressed once. When a guest at your house hits the doorbell switch, S1, it will set off the monostable (IC1) and also energies the relay, which will cause the bell to ring. As soon as the monostable output passes through inverter N1, the latching circuit will be enabled, and LED1 will continue to shine constantly to let others know that you have left the house.
You built Doorbell-Cum-Visitor Indicator.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Liquid level alarm
Ready to reuse what you learned in another project from the same track?
Start this project →
