Periodically on /off Mosquito repellents circuit

Some mosquito repellents on the market use a poisonous liquid to make poisonous vapors that make mosquitoes leave the room. Due to the constant release of poisonous fumes into the room, t…

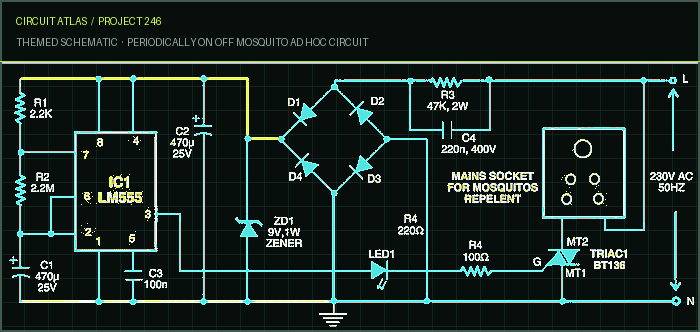

Circuit Atlas themed schematic for Periodically on /off Mosquito repellents circuit
PROJECT#006
TRACKElectronics
PARTS19
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Periodically on /off Mosquito repellents circuit is a electronics project. Some mosquito repellents on the market use a poisonous liquid to make poisonous vapors that make mosquitoes leave the room. Due to the constant release of poisonous fumes into the room, t…

Source pages
50-51
Named parts
19
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • This project may involve hazardous voltage. Work only with qualified supervision and proper isolation.
Ready to continue?
