Cable Tester

Have you ever wondered if a certain cable was giving your device power from the wall? Here is a way to test the continuity of a cable without touching it directly. The circuit can detect…

Completed CA3130 non-contact cable tester detecting an insulated cable with its red LED illuminated
PROJECT#007
TRACKElectronics
PARTS17
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Cable Tester is a electronics project. Have you ever wondered if a certain cable was giving your device power from the wall? Here is a way to test the continuity of a cable without touching it directly. The circuit can detect…

Source pages
51-52
Named parts
17
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Circuit-verified parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

✓ COMPLETE CIRCUIT BOMAll 17 component references, values, and stage-specific names from the reviewed schematic are included below.
CIRCUIT-VERIFIED PROJECT INVENTORY17 PART LINES
PARTTYPEQTYREADY
PBAT1 - 9V PP3 alkaline batteryPOWER1
What's this?Image, role, pros, cons, handling & specifications
9V PP3 batteryPOWER LEARNING VIEW

BAT1 - 9V PP3 alkaline battery

A power component supplies, converts, stores, or regulates energy for the project.

What it does here

It must provide the documented voltage, polarity, isolation, and sufficient current safely.

Buy / compare this part

Advantages

  • Stable power improves reliability
  • Current limiting protects first tests
  • Regulation reduces resets and noise

Limitations

  • Wrong polarity can cause immediate damage
  • Underrated parts overheat
  • Mains circuits require qualified supervision

Handling

  • Measure output before connection
  • Use a fuse or current limit
  • Insulate exposed conductors

Specifications to verify

  • Use the exact model, value, package, and rating listed for BAT1 - 9V PP3 alkaline battery; similar-looking parts are not always interchangeable.
  • Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
BANT1 - single-terminal non-contact pickup antennaBUILD1
What's this?Image, role, pros, cons, handling & specifications

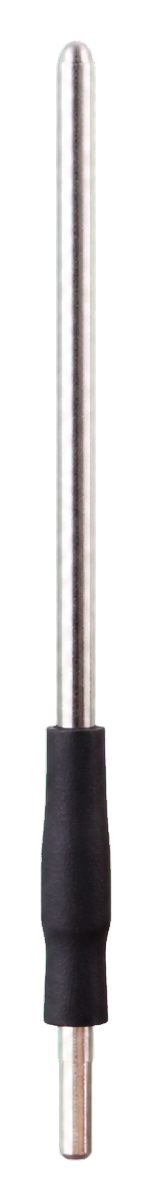

Non-contact pickup antennaBUILD LEARNING VIEW

ANT1 - single-terminal non-contact pickup antenna

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for ANT1 - single-terminal non-contact pickup antenna; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
SIC1 - CA3130E MOSFET-input operational amplifier (DIP-8)SEMICONDUCTOR1
What's this?Image, role, pros, cons, handling & specifications
CA3130 MOSFET-input operational amplifierSEMICONDUCTOR LEARNING VIEW

IC1 - CA3130E MOSFET-input operational amplifier (DIP-8)

A semiconductor stage performs switching, amplification, regulation, rectification, or logic.

What it does here

It controls current or signal flow at a defined point in the circuit.

Buy / compare this part

Advantages

  • Fast and efficient
  • Compact
  • Can control larger loads from smaller signals

Limitations

  • Pin order varies
  • Sensitive to overvoltage and reverse polarity
  • May need cooling or bias components

Handling

  • Verify the datasheet pinout
  • Avoid static and soldering heat
  • Check notch, stripe, or flat-face orientation

Specifications to verify

  • Use the exact model, value, package, and rating listed for IC1 - CA3130E MOSFET-input operational amplifier (DIP-8); similar-looking parts are not always interchangeable.
  • Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
PLED1 - red 5mm cable-detected indicator LEDPART1
What's this?Image, role, pros, cons, handling & specifications
Red 5mm LEDPART LEARNING VIEW

LED1 - red 5mm cable-detected indicator LED

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for LED1 - red 5mm cable-detected indicator LED; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
PR1 - 10MΩ input-bias resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

R1 - 10MΩ input-bias resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R1 - 10MΩ input-bias resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR2 - 10MΩ input-bias resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

R2 - 10MΩ input-bias resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R2 - 10MΩ input-bias resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR3 - 10MΩ input-bias resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

R3 - 10MΩ input-bias resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R3 - 10MΩ input-bias resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR4 - 3.9MΩ input-bias resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

R4 - 3.9MΩ input-bias resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R4 - 3.9MΩ input-bias resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR5 - 10MΩ non-inverting-input resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

R5 - 10MΩ non-inverting-input resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R5 - 10MΩ non-inverting-input resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR6 - 10kΩ feedback-to-ground resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
10kΩ axial through-hole resistorPASSIVE LEARNING VIEW

R6 - 10kΩ feedback-to-ground resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R6 - 10kΩ feedback-to-ground resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR7 - 22kΩ output-feedback resistorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPASSIVE LEARNING VIEW

R7 - 22kΩ output-feedback resistor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for R7 - 22kΩ output-feedback resistor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PR8 - 1kΩ LED current-limiting resistorPART1
What's this?Image, role, pros, cons, handling & specifications
Axial through-hole resistorPART LEARNING VIEW

R8 - 1kΩ LED current-limiting resistor

An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.

What it does here

It presents the circuit result or acts on the physical world.

Buy / compare this part

Advantages

  • Makes system state visible
  • Can be tested separately
  • Supports clear troubleshooting

Limitations

  • Loads may exceed controller current
  • Polarity or driver direction can matter
  • Inductive loads create voltage spikes

Handling

  • Use the documented driver stage
  • Check polarity and load current
  • Add flyback protection for inductive loads

Specifications to verify

  • Use the exact model, value, package, and rating listed for R8 - 1kΩ LED current-limiting resistor; similar-looking parts are not always interchangeable.
  • Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
PC1 - 10µF 25V polarized electrolytic roll-off capacitorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications
Completed CA3130 non-contact cable tester detecting an insulated cable with its red LED illuminatedPASSIVE LEARNING VIEW

C1 - 10µF 25V polarized electrolytic roll-off capacitor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for C1 - 10µF 25V polarized electrolytic roll-off capacitor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PC2 - 0.22µF (224) non-polarized phase-compensation capacitorPASSIVE1
What's this?Image, role, pros, cons, handling & specifications

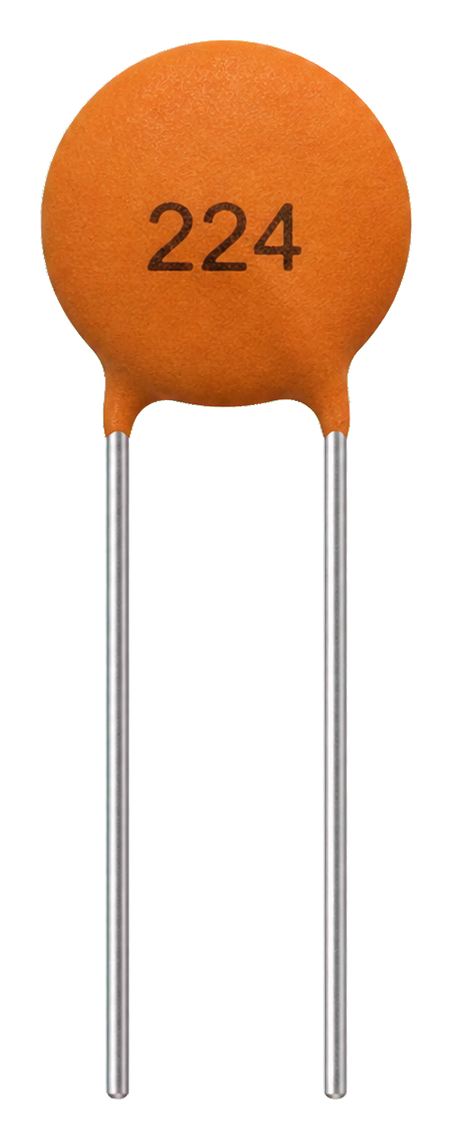

0.22uF ceramic capacitorPASSIVE LEARNING VIEW

C2 - 0.22µF (224) non-polarized phase-compensation capacitor

A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.

What it does here

Its exact value and tolerance determine how the surrounding stage behaves.

Buy / compare this part

Advantages

  • Simple and dependable
  • Low cost
  • Easy to measure before installation

Limitations

  • A wrong value can stop or damage the circuit
  • Ratings must not be exceeded
  • Polarized parts require correct orientation

Handling

  • Measure unclear values
  • Observe capacitor polarity
  • Avoid overheating leads while soldering

Specifications to verify

  • Use the exact model, value, package, and rating listed for C2 - 0.22µF (224) non-polarized phase-compensation capacitor; similar-looking parts are not always interchangeable.
  • Confirm value, tolerance, power or voltage rating, polarity, and package size.
PTP0 - circuit-ground test pointPART1
What's this?Image, role, pros, cons, handling & specifications
Completed CA3130 non-contact cable tester detecting an insulated cable with its red LED illuminatedPART LEARNING VIEW

TP0 - circuit-ground test point

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for TP0 - circuit-ground test point; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
PTP1 - +9V supply test pointPART1
What's this?Image, role, pros, cons, handling & specifications
Completed CA3130 non-contact cable tester detecting an insulated cable with its red LED illuminatedPART LEARNING VIEW

TP1 - +9V supply test point

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for TP1 - +9V supply test point; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
PTP2 - amplified-output test pointPART1
What's this?Image, role, pros, cons, handling & specifications
Completed CA3130 non-contact cable tester detecting an insulated cable with its red LED illuminatedPART LEARNING VIEW

TP2 - amplified-output test point

A named project component whose exact role is defined by the source circuit and build guide.

What it does here

It performs a documented electrical, control, interface, or construction function in this project.

Buy / compare this part

Advantages

  • Selected for this project
  • Can be checked independently
  • Supports modular troubleshooting

Limitations

  • Substitutes may differ
  • Generic names can hide variants
  • Pinouts and ratings vary

Handling

  • Compare the received part with the source
  • Keep it labelled
  • Do not force connectors or adjusters

Specifications to verify

  • Use the exact model, value, package, and rating listed for TP2 - amplified-output test point; similar-looking parts are not always interchangeable.
  • Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

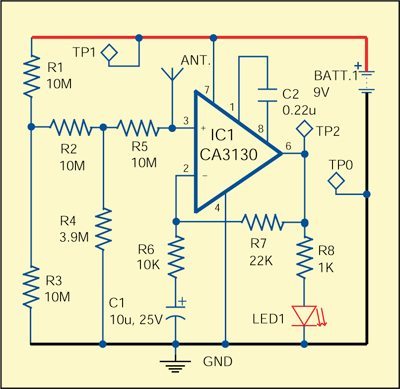

Have you ever wondered if a certain cable was giving your device power from the wall? Here is a way to test the continuity of a cable without touching it directly. The circuit can detect AC signal frequencies, and if the cable is conducting, an LED will light up. The circuit is very sensitive and can pick up signals from the cable's surface, so there's no need to touch the cable directly. Other cables, like modem, audio/video, and dish antenna cables, can be tested with the circuit. Shows how the cable tester works. The op-amp CA3130 is the center of the circuit (IC1). The operational amplifier IC1 has MOSFET inputs and a CMOS output. It has PMOS transistors on the inputs, which give it a very high input impedance and very good speed performance. Even weak signals are easily picked up by the input. The feedback resistors R6 and R7 set the closed-loop voltage gain for IC1, which is wired as a non-inverting amplifier. By adding capacitor C1, a gradual roll-off is made possible. The resistors R1 through R5 are used to set the level of the non-inverting input of IC1. For phase compensation, a capacitor C2 is added between pin 1 (offset null) and pin 8 (strobe). How the circuit works is easy to understand. Bring the circuit's antenna close to the wire you want to test. If the cable is doing its job well, the LED will light up.

Ready to continue?
PROJECT ACHIEVED

You built Cable Tester.

You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.

Automatic 3-Phase Induction Motor Starter project thumbnail featuring Transformer, NE555, NEGATIVE
NEXT ELECTRONICS ADVENTURE

Automatic 3-Phase Induction Motor Starter

Ready to reuse what you learned in another project from the same track?

Start this project
Browse all 500 projects
