Blown Fuse Indicator
A fuse is a type of electrical safety device that can safeguard an electrical circuit from being overloaded with current when it is in operation. Its primary component is a metal wire or…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Blown Fuse Indicator is a electronics project. A fuse is a type of electrical safety device that can safeguard an electrical circuit from being overloaded with current when it is in operation. Its primary component is a metal wire or…
- Source pages
- 135-137
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Fuse under test
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Fuse under test; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
Indicator lamp / LED shown in the schematic
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Indicator lamp / LED shown in the schematic; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
What's this?Image, role, pros, cons, handling & specifications
PASSIVE LEARNING VIEWCurrent-limiting resistor shown in the schematic
A passive component sets current, voltage, timing, filtering, or signal behaviour without adding gain.
What it does hereIts exact value and tolerance determine how the surrounding stage behaves.
Buy / compare this part ↗Advantages
- Simple and dependable
- Low cost
- Easy to measure before installation
Limitations
- A wrong value can stop or damage the circuit
- Ratings must not be exceeded
- Polarized parts require correct orientation
Handling
- Measure unclear values
- Observe capacitor polarity
- Avoid overheating leads while soldering
Specifications to verify
- Use the exact model, value, package, and rating listed for Current-limiting resistor shown in the schematic; similar-looking parts are not always interchangeable.
- Confirm value, tolerance, power or voltage rating, polarity, and package size.
What's this?Image, role, pros, cons, handling & specifications
Insulated test leads
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for Insulated test leads; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Blown Fuse Indicator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 2 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteA fuse is a type of electrical safety device that can safeguard an electrical circuit from being overloaded with current when it is in operation. Its primary component is a

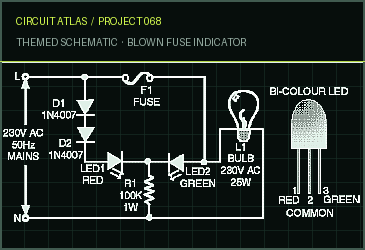

metal wire or strip that, when subjected to an excessive amount of electricity, would melt, causing the flow of current to be temporarily disrupted. It is a device that is meant to be sacrificed; once it has been blown, it creates an open circuit and, depending on the type, either needs to be replaced or rewired. When a piece of machinery indicates that it has no power, the problem may simply be that its fuse has blown. This is a circuit for an indicator that a fuse has blown, which uses LEDs to display the status of the fuse. This simple circuit has a lot of applications and is dependable. Because it contains so few individual parts, it is also very reasonably priced. The operation of the blown fuse indication Fig.1 Blow- fuse indicator When everything is operating normally (when the fuse is not blown), the voltage drop in the first arm is 2V + (2 x 0.7V) = 3.4V, whereas the voltage loss in the second arm is only 2V. Therefore, current is flowing via the second arm, which is the green LED; this causes the green LED to shine, while the red LED continues to be turned off. The supply to the green LED is cut off when the fuse blows, and because there is only room for one LED in the circuit, the red LED lights up instead. In the event that there is a loss of power, both LEDs will remain in the "off" position. In the event that the fuse blows, this circuit can quickly and inexpensively be adjusted to emit a siren (see Fig. 2). In order to activate the siren, an optocoupler is utilized.

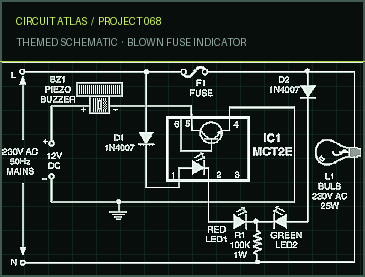

The red LED illuminates when the fuse is blown. Simultaneously, it toggles the siren to the "ON" position. Fig.2 Blow fuse indicator with alarm It is possible to utilize two LEDs of a single color, such as red and green, in place of a bicolor LED. In the same vein, there can be only one diode used in place of D1 and D2 in the circuit. Due to the possibility that the two LEDs would create different voltage drops, it is necessary to employ two diodes in order to increase the voltage drop.
