Ding Dong Touch Bell
A doorbell is a signaling device that is often installed next to a door that leads into the entry of a building. When an occupant of the building touches a button on the exterior of the s…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Ding Dong Touch Bell is a electronics project. A doorbell is a signaling device that is often installed next to a door that leads into the entry of a building. When an occupant of the building touches a button on the exterior of the s…
- Source pages
- 137-138
- Named parts
- 1
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
Speaker
An output component turns an electrical control signal into light, sound, motion, switching, or displayed information.
What it does hereIt presents the circuit result or acts on the physical world.
Buy / compare this part ↗Advantages
- Makes system state visible
- Can be tested separately
- Supports clear troubleshooting
Limitations
- Loads may exceed controller current
- Polarity or driver direction can matter
- Inductive loads create voltage spikes
Handling
- Use the documented driver stage
- Check polarity and load current
- Add flyback protection for inductive loads
Specifications to verify
- Use the exact model, value, package, and rating listed for Speaker; similar-looking parts are not always interchangeable.
- Confirm voltage, current, polarity, interface, driver requirements, and duty cycle.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Ding Dong Touch Bell: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

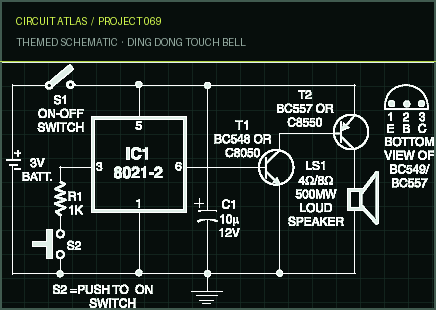

Project build noteA doorbell is a signaling device that is often installed next to a door that leads into the entry of a building. When an occupant of the building touches a button on the exterior of the structure, a bell will ring inside the building to notify them of the presence of a visitor. Based on the IC 8021-2 manufactured by Formox Semiconductors, the doorbell circuit that we demonstrate here is both straightforward and economical. It is a DIP integrated circuit with eight pins, but the circuit only makes use of four of those pins. In the event that it's necessary, you can quickly and easily set it up in your home. Doorbell circuit
When the value of pin 3 is driven low, the integrated circuit (IC) includes a built-in circuitry that makes a ding-dong sound. The IC acts similar to a ROM in that it stores the sound as bits. However, the IC's sound output cannot be used to directly drive a speaker because doing so would place too much strain on the device. In order to bring the sound up to a level that is sufficiently audible, an amplifier consisting of a complimentary pair and two transistors is utilized. At the output, you can either use a piezo tweeter or a speaker with 8 ohms and 500 milliwatts of power. Only a few microamperes of nominal current are drawn from the supply by the integrated circuit while it is in the standby mode. Because of this, the switch S1 can remain in the closed position. When switch S2 is activated, a ding dong sound is made twice at regular intervals. If you try to hit switch S2 a second time while the first ding dong sound is still being created, it has absolutely no effect, and the two ding-dong bell noises will be made regardless of whether or not you press the switch.
