Digitally Adjustable Dancing Lights
There are likely many different kinds of movable dance lights that you have come across (flickering LEDs). The majority of them alter the switching pace through the use of presets, which…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Digitally Adjustable Dancing Lights is a electronics project. There are likely many different kinds of movable dance lights that you have come across (flickering LEDs). The majority of them alter the switching pace through the use of presets, which…
- Source pages
- 140-141
- Named parts
- 2
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
SEMICONDUCTOR LEARNING VIEWCD4017
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4017; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Digitally Adjustable Dancing Lights: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

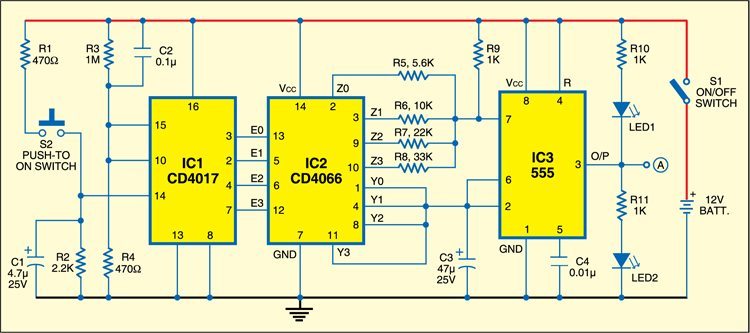

Project build noteThere are likely many different kinds of movable dance lights that you have come across (flickering LEDs). The majority of them alter the switching pace through the use of presets, which are variable resistors. Due to the fact that it is a mechanical component, the preset is prone to wear and tear over time and also contributes noise to the circuit when it does so. The adjustable dancing lights circuit provided here uses timer IC 555 to select various values of resistors in order to control the frequency of an astable multivibrator. These resistors are used to control the frequency of the multivibrator. Adjustable Dancing Lights Circuit The circuit is constructed around a decade counter IC 4017, a timer 555, and a quad bilateral switch IC 4066, which is used to determine the necessary resistance. The output of the decade counter is used to select which resistor is connected to the output of IC 4066. The chosen resistor modifies the time period of the 555 timer circuit, the timings of who’s "on" and "off" states are determined by the following: In the current configuration, R9 is equal to one kilo-ohm, C3 is equal to forty-seven microfarads, and Rx fluctuates depending on the output of IC1 (CD4017). The output of IC1 can be altered by repeatedly pressing switch S2.
The output of the decade counter advances whenever you briefly press switch S2. This causes IC 4066 to select a higher value for resistor Rx, which in turn modifies the switching time of the astable multivibrator. When LED1 and LED2 light up, it means that the multivibrator has been switched "off" and "on," respectively.
Construction & testing
Project build noteConstruct the circuit using a PCB designed for general use and enclose it in an appropriate housing. LEDs and switches on the front panel need to be repaired. In the event that a greater amount of light is required, the supplementary circuit can be connected as described above.
