Low-cost Stopwatch
This is a straightforward circuit for a stopwatch that is inexpensive and has a maximum count of 99 seconds. This circuit makes use of additional discrete components in addition to the LT…
Know the mission before touching a wire.
Understand what you are making, prepare the right tools, and make the workbench safe.
Project details
Low-cost Stopwatch is a electronics project. This is a straightforward circuit for a stopwatch that is inexpensive and has a maximum count of 99 seconds. This circuit makes use of additional discrete components in addition to the LT…
- Source pages
- 138-140
- Named parts
- 4
- Build goal
- Working, tested prototype
Tools you need
- Digital multimeter
- Wire stripper and side cutters
- Soldering iron with a fine tip
- Current-limited bench supply
Use eye protection, good lighting, and a clean insulated surface throughout the build.
Safety precautions
- Disconnect every power source before changing a connection.
- Check component polarity, pinout, and supply voltage twice.
- Use a current limit for the first power-up.
- Keep liquids, loose metal, and uninsulated wires away from the bench.
Gather, identify, and understand every part.
Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.
What's this?Image, role, pros, cons, handling & specifications
MAXIMUM
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for MAXIMUM; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
CD4060
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4060; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
CD4013
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4013; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
CD4033
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for CD4033; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Low-cost Stopwatch: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview

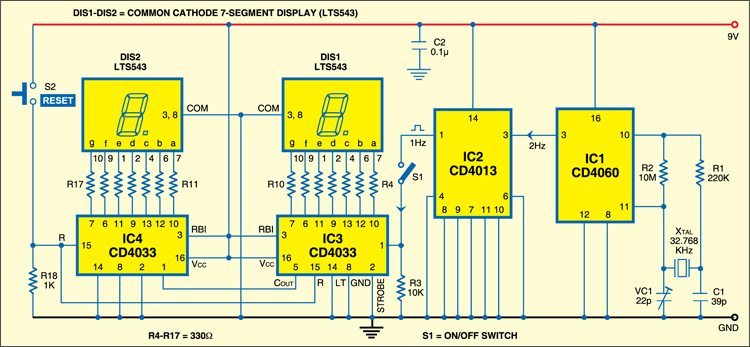

Project build noteThis is a straightforward circuit for a stopwatch that is inexpensive and has a maximum count of 99 seconds. This circuit makes use of additional discrete components in addition to the LTS543, CD4060, and CD4013. Pulses at a frequency of 1 Hz are produced using a crystal-controlled oscillator. A tiny crystal operating at a frequency of 32.768 kHz is utilized for this purpose.
A low-cost stopwatch circuit The integrated circuit CD4060 (IC1) has both a divider stage with 14 bits and an oscillator portion. The output of IC1, which is 2Hz, is supplied to the flip-flop IC CD4013 via its pin 3. (IC2). The frequency is reduced from 2 Hz to 1 Hz via IC2. Through switch S1, the output of IC2 is connected to IC CD4033 (IC3). This connection is made at pin 1. In order to carry out further counting, carry-out pin 5 of IC3 is linked to pin 1 of a different CD4033 (IC4). The time is displayed on the common-cathode displays DIS1 and DIS2 by IC3 and IC4, respectively (maximum 99 seconds). The watch is started and stopped using the switch labeled S1. You are able to return the counter to zero by hitting the reset switch, which is located at S2. First, ensure that the circuit is connected to a source of 9V power, and then reset the display by pressing and holding the S2 switch for a brief period of time. The number 00 is displayed on the screen. To initiate the counting process, move the switch S1 to the "on" position. At the point in time when an event is over, the switch S1 should be moved to the "off" position. The time that is displayed on the display is the time that will be used for the event.
Construction & Testing
Project build noteConstruct the circuit using a PCB designed for general use and enclose it in an appropriate housing. Install two common-cathode 7-segment displays, DIS1 and DIS2, as well as two sets of switches, S1 and S2, on the front panel of the cabinet. Because
this system uses CMOS integrated circuits, the supply voltage can be anything between 5V and 15V. The suggested supply voltage is 9 V.
You built Low-cost Stopwatch.
You followed the full workflow from understanding the mission to testing the finished project. That is a real engineering achievement - well done.
Digitally Adjustable Dancing Lights
Ready to reuse what you learned in another project from the same track?
Start this project →
