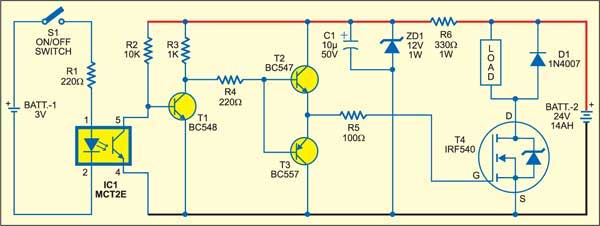

Project build noteFig. 1: Solid-state relay circuit In its most fundamental form, a relay is a switch that, when activated by an electrically separated, low-power control signal, turns on power to a load. Up to this point, the most reliable components for carrying out this duty have been electromechanical relays. The development of a solid-state relay can be attributed to the progress that has been made in the field of semiconductor technology.

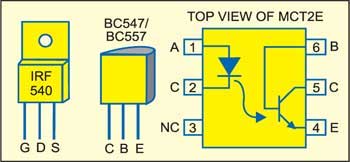

Fig. 2: Pin configurations of MOSFET IRF540, transistors BC547/BC557 and MCT2E Solid-state relays have many benefits, including almost infinite switching, bounce-free operation, immunity to electromagnetic interference (EMI), higher operating speeds, low-voltage control, small package size, and multifunction integration. Solid-state relays also have the advantage of being able to integrate multiple functions. In this project, we will explain a DC-operated solid-state relay that makes use of components that are easily accessible (see Fig. 1). It can run off of a TTL compatible PWM input or a battery with a voltage of 3V DC. In Figure 2, you can see the several pin configurations for the MOSFET IRF540, the transistor BC547/BC557, and the opto- coupler. For a current of up to 10 amps to be driven through the load, the load voltage can be supplied by a tubular battery or a car battery with a voltage ranging anywhere from 24V to 96V. A battery operating at 24 volts DC has been utilized here. The value of the series resistor R6, which is currently set at 330 ohms, will alter based on the voltage of the battery in order to produce a current of 30-35mA. Calculating the value of resistor R6 can be done as follows: R6 equals 1000 times (Bat.2 V - 12V) divided by 35, and its power dissipation equals 35 divided by 1000. 2 x R = 0.001225R Note: It is recommended that R6's wattage be at least twice as high as its power dissipation. When the S1 button is pressed, the logic 1 state of the opto-coupler input is set, which causes the MOSFET to trigger and turn on the load. The input of the opto-coupler is low (logic 0) while S1 is open, which prevents the MOSFET from being triggered. As a direct consequence of this, the load has not been activated.
