Car Porch Guard

Using this electronic car porch guard system, you can prevent theft from occurring to your expensive vehicle. As soon as the system detects any potential attempt at theft, it promptly act…

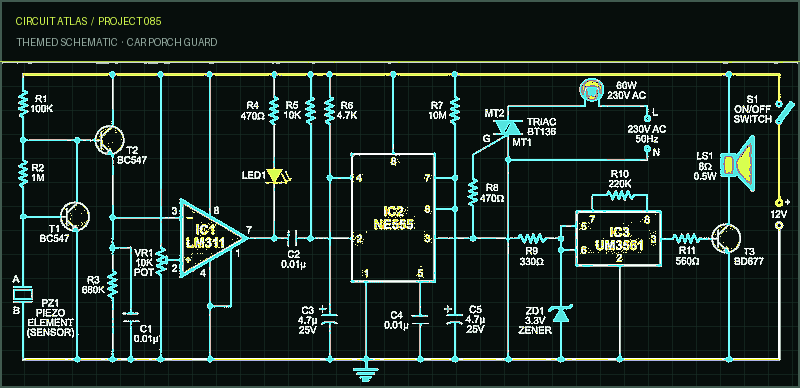

Circuit Atlas themed schematic for Car Porch Guard
PROJECT#085
TRACKElectronics
PARTS08
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Car Porch Guard is a electronics project. Using this electronic car porch guard system, you can prevent theft from occurring to your expensive vehicle. As soon as the system detects any potential attempt at theft, it promptly act…

Source pages
163-166
Named parts
8
Build goal
Working, tested prototype
