Interfacing 5MP SPI Camera with NodeMCU ESP8266

This tutorial is about the Arducam Mega Camera, which will be connected to the NodeMCU ESP8266 WiFi Module. Arducam just came out with a legendary camera solution that makes it easy to co…

Interfacing 5MP SPI Camera with NodeMCU ESP8266 - source illustration from page 1129
PROJECT#446
TRACKIoT
PARTS03
STAGES06
STEP 1 / 6 · Overview

Know the mission before touching a wire.

Understand what you are making, prepare the right tools, and make the workbench safe.

01

Project details

Interfacing 5MP SPI Camera with NodeMCU ESP8266 is a iot project. This tutorial is about the Arducam Mega Camera, which will be connected to the NodeMCU ESP8266 WiFi Module. Arducam just came out with a legendary camera solution that makes it easy to co…

Source pages
1128-1133
Named parts
3
Build goal
Working, tested prototype
02

Tools you need

  • Digital multimeter
  • Wire stripper and side cutters
  • Soldering iron with a fine tip
  • Current-limited bench supply
  • Computer with a data-capable USB cable

Use eye protection, good lighting, and a clean insulated surface throughout the build.

03

Safety precautions

  • Disconnect every power source before changing a connection.
  • Check component polarity, pinout, and supply voltage twice.
  • Use a current limit for the first power-up.
  • Keep liquids, loose metal, and uninsulated wires away from the bench.
Ready to continue?
STEP 2 / 6 · Parts library

Gather, identify, and understand every part.

Use the standardized inventory, then open What's this? to learn each part's role, advantages, limitations, handling, and specifications.

NAMED PROJECT INVENTORY3 PART LINES
PARTTYPEQTYREADY
MESP8266MODULE1
What's this?Image, role, pros, cons, handling & specifications
Interfacing 5MP SPI Camera with NodeMCU ESP8266 - source illustration from page 1129MODULE LEARNING VIEW

ESP8266

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for ESP8266; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
MESP32MODULE1
What's this?Image, role, pros, cons, handling & specifications
Interfacing 5MP SPI Camera with NodeMCU ESP8266 - source illustration from page 1129MODULE LEARNING VIEW

ESP32

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for ESP32; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
MNodeMCUMODULE1
What's this?Image, role, pros, cons, handling & specifications
NodeMCU ESP8266 development boardMODULE LEARNING VIEW

NodeMCU

A programmable controller that reads inputs, makes decisions, and drives the project's outputs.

What it does here

It is the control centre and must use the documented board, pin map, supply, and logic level.

Buy / compare this part

Advantages

  • Reprogrammable and reusable
  • Large learning ecosystem
  • Complex behaviour remains changeable

Limitations

  • GPIO voltage and current are limited
  • Some pins affect boot or communication
  • Loads normally need a driver

Handling

  • Disconnect power before rewiring
  • Avoid static discharge
  • Never power motors, relays, or pumps directly from GPIO

Specifications to verify

  • Use the exact model, value, package, and rating listed for NodeMCU; similar-looking parts are not always interchangeable.
  • Confirm operating voltage, logic level, pinout, memory, USB interface, and maximum GPIO current.
Ready to continue?
STEP 4 / 6 · Source code

Confirm the hardware-only control path.

This project does not include firmware in the source. The circuit itself provides the required behaviour.

01

How to connect

  1. Match every controller label to the circuit view and source pin map.
  2. Join grounds before signal wires when separate low-voltage supplies are used.
  3. Keep motors, relays, pumps, and other loads on a suitable driver and external supply.

Common mistakes

Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.

Troubleshoot

Disconnect loads, continuity-test one path at a time, then test with a current limit.

02

Software preparation

No IDE, board package, library, or firmware upload is required for this project.

If you add a programmable controller as an extension, document its pin map separately.

03

How to upload code

The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.

Ready to continue?
STEP 5 / 6 · Build

Assemble, deploy, test, and troubleshoot.

Use the complete source notes in build order, then pass the final checks before calling the project finished.

ASSEMBLY

Build in functional stages

  • Power and regulation
  • Controller or processing stage
  • Inputs and sensors
  • Outputs and loads
  • Enclosure and strain relief
TEST

Power up safely

  • Inspect unpowered continuity first
  • Apply the lowest safe current limit
  • Measure supply rails before signals
  • Add one load at a time
  • Record expected and actual results
TROUBLESHOOT

Work from simple to complex

  • Confirm power, ground, polarity, and orientation
  • Compare each pin with the source
  • Test inputs separately from outputs
  • Replace only one variable at a time
  • Power off before every correction
PROJECT-SPECIFIC BUILD NOTES

Follow the documented instructions.

These notes come from this project's source and remain in their original order.

01

Project overview

Project build note

This tutorial is about the Arducam Mega Camera, which will be connected to the NodeMCU ESP8266 WiFi Module. Arducam just came out with a legendary camera solution that makes it easy to connect one or more cameras to any microcontroller. It is especially made for IoT devices that run on batteries, embedded machine vision, and applications that use artificial intelligence. Any microcontroller with a single standard SPI interface can work with the Arducam Mega Camera. Register settings and frame buffers do not take up any memory. The best thing about it is that it can work with both 3.3V and 5V systems. In this project, we'll connect a 5-megapixel Arducam Mega Camera to a NodeMCU ESP8266 Board and do things like take pictures with different pixel sizes. We will also stream some videos using the ESP8266 Board by itself. Arducam has put out the Arducam Mega SDK for the Arducam Mega camera, which makes it easy to program. So, let's talk in detail about this camera and how it works. Arducam Mega Camera

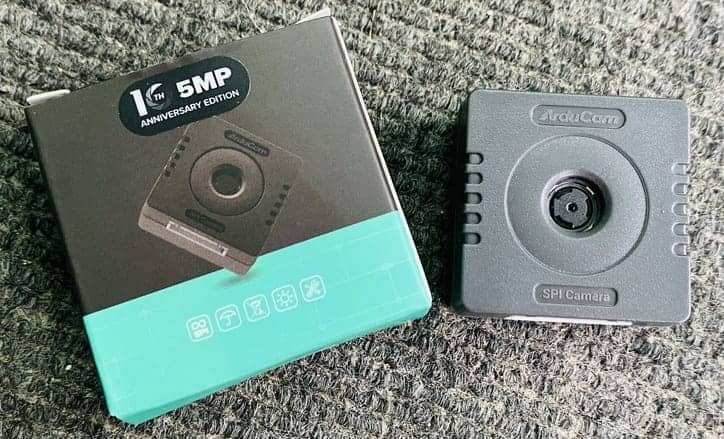

The Arducam Mega Camera is a famous camera solution that makes it easy to hook up one or more cameras to any microcontroller. It is mostly made for IoT devices that run on batteries, embedded machine vision, and applications that use artificial intelligence. Any microcontroller with a single standard SPI interface can work with Arducam Mega. If you leave out VCC and GND, you only need 4 pins (called GPIOs). Register settings and frame buffers do not take up any memory. It works well with both 3.3V and 5V systems. The camera can be used directly with Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, and other MCU systems. The camera was made to be used in ways that save energy. When your MCU is sleeping, you can turn off the camera completely without having to worry about loading long register settings. It does this instantly (in less than 100 ms) and on its own. There are two types of Arducam Mega cameras. One has 3MP and a fixed focus, while the other has 5MP (autofocus). It comes with a case that makes it easy to mount wherever you want. Interfacing 5MP Arducam Mega Camera with NodeMCU ESP8266

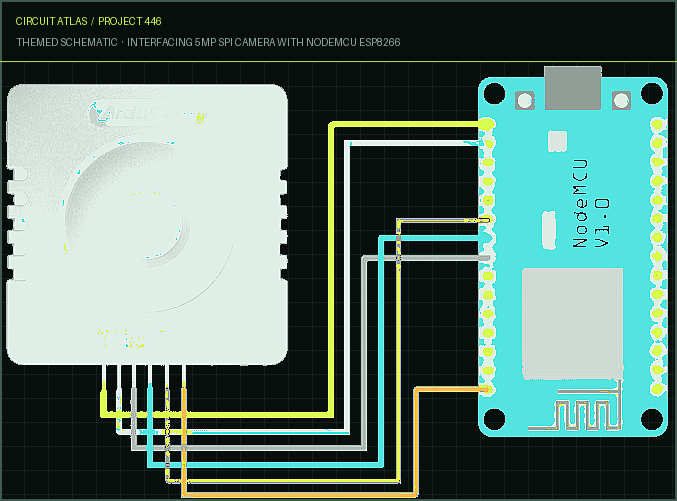

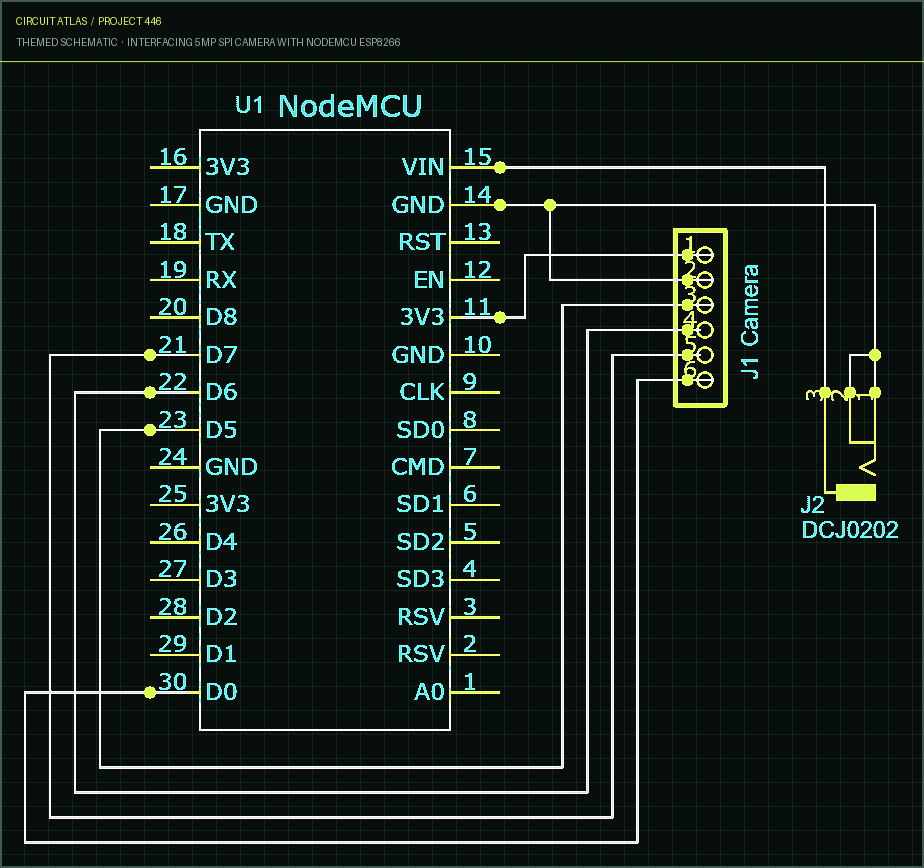

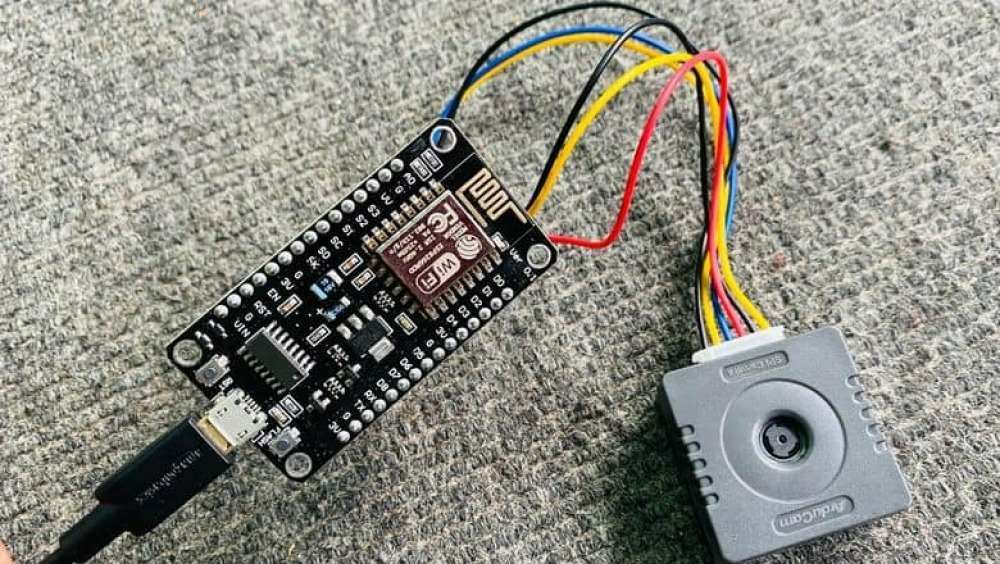

Now, let's look at how to connect an Arducam Mega SPI camera with 5 megapixels to a NodeMCU ESP8266. The picture below shows how simple the connection diagram is. Testing the Camera

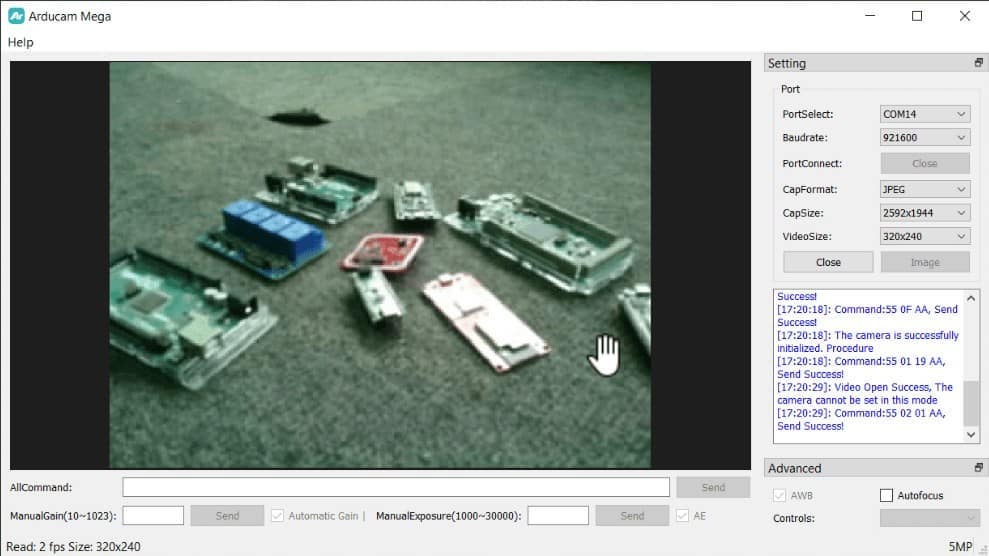

To make sure the Camera works, we need some software that lets us see how the GUI looks. So, go to the link below to get the Arducam software. https://github.com/ArduCAM/Arducam Mega/releases/download/v1.0.0/ArducamMegaSetup Windows x64.exe Install the software on your computer after you have downloaded it. After installation, click open and choose the NodeMCU ESP8266 port number. The baud rate is 921600. Now, the Camera is linked to the software for visualizing. So, to see everything on the GUI Screen, you can move the camera in different ways. You can take a picture by clicking the picture button. To close the window, you can click the close button. You can also choose the size and format of the image. Click the Video button to start streaming video. The default resolution is 320x240. Click the " Close" button to stop streaming videos. By default, the auto exposure is turned on. If you want to use manual exposure, you need to turn off the automatic exposure function.

By default, the auto gain is turned on. When you use manual gain, you need to turn off the automatic gain function. The software has controls for brightness, contrast, EV, saturation, special effects, white balance, and focus. On the 5MP Arducam Mega Camera, you can control the autofocus. You can turn this feature on or off. Turn on or off the continuous focus function. By default, the continuous focus function is turned off.
