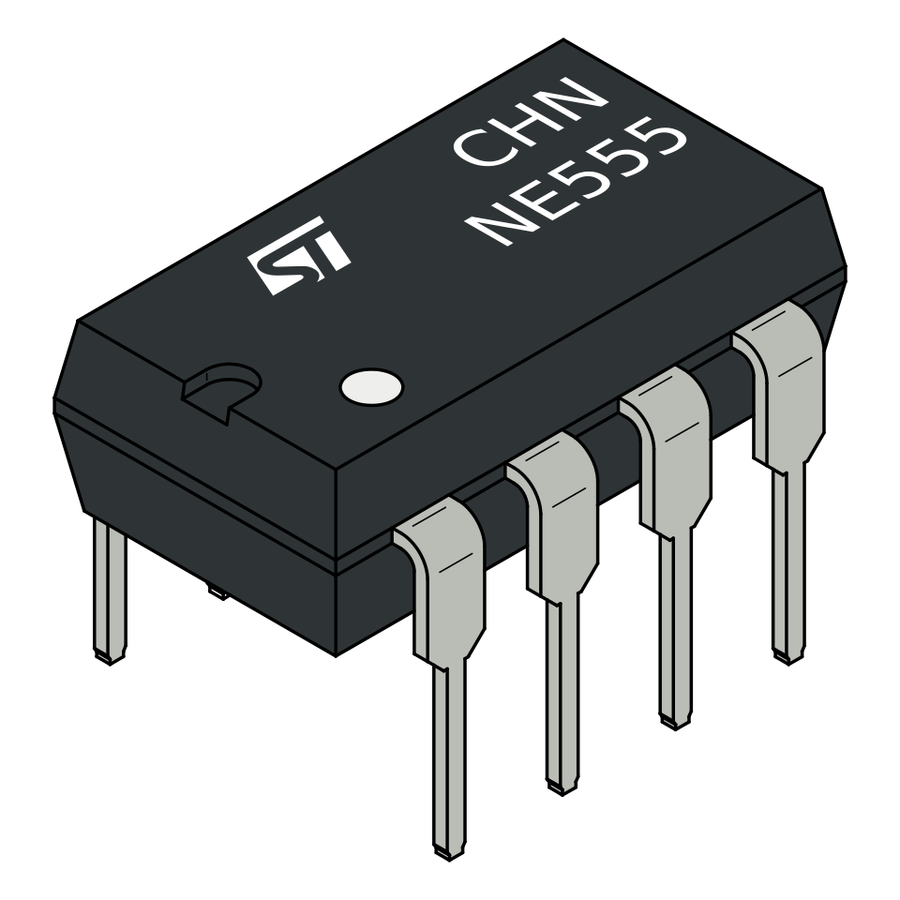

SEMICONDUCTOR LEARNING VIEWNE555
A semiconductor stage performs switching, amplification, regulation, rectification, or logic.
What it does hereIt controls current or signal flow at a defined point in the circuit.
Buy / compare this part ↗Advantages
- Fast and efficient
- Compact
- Can control larger loads from smaller signals
Limitations
- Pin order varies
- Sensitive to overvoltage and reverse polarity
- May need cooling or bias components
Handling
- Verify the datasheet pinout
- Avoid static and soldering heat
- Check notch, stripe, or flat-face orientation
Specifications to verify
- Use the exact model, value, package, and rating listed for NE555; similar-looking parts are not always interchangeable.
- Confirm pinout, maximum voltage/current, dissipation, gain or forward voltage, and package.
What's this?Image, role, pros, cons, handling & specifications
NEGATIVE
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for NEGATIVE; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
What's this?Image, role, pros, cons, handling & specifications
7812 - integrated circuit
A power component supplies, converts, stores, or regulates energy for the project.
What it does hereIt must provide the documented voltage, polarity, isolation, and sufficient current safely.
Buy / compare this part ↗Advantages
- Stable power improves reliability
- Current limiting protects first tests
- Regulation reduces resets and noise
Limitations
- Wrong polarity can cause immediate damage
- Underrated parts overheat
- Mains circuits require qualified supervision
Handling
- Measure output before connection
- Use a fuse or current limit
- Insulate exposed conductors
Specifications to verify
- Use the exact model, value, package, and rating listed for 7812 - integrated circuit; similar-looking parts are not always interchangeable.
- Confirm input/output voltage, current, polarity, connector, isolation, and thermal rating.
What's this?Image, role, pros, cons, handling & specifications
LED1, LED2 - indicator LEDs identified in the circuit
A named project component whose exact role is defined by the source circuit and build guide.
What it does hereIt performs a documented electrical, control, interface, or construction function in this project.
Buy / compare this part ↗Advantages
- Selected for this project
- Can be checked independently
- Supports modular troubleshooting
Limitations
- Substitutes may differ
- Generic names can hide variants
- Pinouts and ratings vary
Handling
- Compare the received part with the source
- Keep it labelled
- Do not force connectors or adjusters
Specifications to verify
- Use the exact model, value, package, and rating listed for LED1, LED2 - indicator LEDs identified in the circuit; similar-looking parts are not always interchangeable.
- Confirm dimensions, ratings, connection method, polarity, and environmental limits.
Connect one verified path at a time.
Explore the named components and standardized signal flow, then use Source Check to verify exact physical pins, values, and topology before applying power.
Trace this circuit.
Brake Failure Indicator: interactive parts, standardized terminals, responsive anchored wires, student explanations, and the original circuit reference in one shared system.
Trace before wiring
Follow power, ground, inputs, processing, and outputs in that order. Never guess a pin from package shape alone.
Connect with power off
Make short, labelled connections and share a common ground only where the schematic requires it.
Inspect every joint
Check continuity, polarity, adjacent shorts, and loose connections before the first power-up.
Open all source diagrams and build views 1 visuals
Confirm the hardware-only control path.
This project does not include firmware in the source. The circuit itself provides the required behaviour.
How to connect
- Match every controller label to the circuit view and source pin map.
- Join grounds before signal wires when separate low-voltage supplies are used.
- Keep motors, relays, pumps, and other loads on a suitable driver and external supply.
Common mistakes
Reversed VCC/GND, board-label versus GPIO-number confusion, missing common ground, and charge-only USB cables.
Troubleshoot
Disconnect loads, continuity-test one path at a time, then test with a current limit.
Software preparation
No IDE, board package, library, or firmware upload is required for this project.
If you add a programmable controller as an extension, document its pin map separately.
How to upload code
The original design is implemented entirely in hardware, so proceed after verifying the circuit and supply.
Assemble, deploy, test, and troubleshoot.
Use the complete source notes in build order, then pass the final checks before calling the project finished.
Build in functional stages
- Power and regulation
- Controller or processing stage
- Inputs and sensors
- Outputs and loads
- Enclosure and strain relief
Power up safely
- Inspect unpowered continuity first
- Apply the lowest safe current limit
- Measure supply rails before signals
- Add one load at a time
- Record expected and actual results
Work from simple to complex
- Confirm power, ground, polarity, and orientation
- Compare each pin with the source
- Test inputs separately from outputs
- Replace only one variable at a time
- Power off before every correction
Follow the documented instructions.
These notes come from this project's source and remain in their original order.
Project overview
Project build noteDo you wish to receive an early warning in the event that your brakes begin to fail while you are driving? Presented here is a circuit for a brake failure indicator that, in addition to providing an audible and visible signal, continuously monitors the state of the brake. If the brakes are working properly, applying the brakes will cause the green LED to flash and the piezobuzzer to make a beeping sound for approximately one second. If the brake does not work, the red LED will light up, and the buzzer will stop sounding. Only in automobiles with negative grounding can the circuit function properly. It also provides an indicator of a problem with the brake switch. Vehicles that use hydraulic braking systems include a brake switch that is positioned on the brake cylinder. This switch is used to activate the rear brake lights. Because it is operated by fluid, the brake switch will not work if the pressure in the fluid drops because of a leak. If there is not a significant pressure drop in the brake pedal, the fluid leak will not be easily recognized even if it is occurring. By monitoring the brake switch, this circuit determines whether or not there is a possibility of the brakes failing, and it alerts you to the current state of the brakes each time the brakes are used. Brake failure indicator circuit

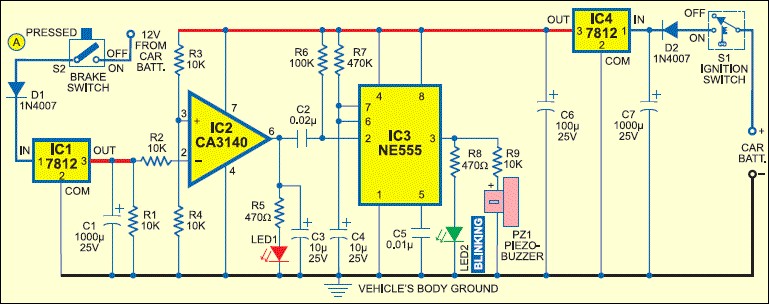

A voltage comparator is provided by an op-amp integrated circuit with the part number CA3140 (IC2), and an alarm is generated by a timer with the part number NE555 (IC3) in a monostable mode. The voltage level that is present across the brake switch is measured by the voltage comparator IC2. Its non-inverting input, pin 3, is connected to a potential divider consisting of resistors R3 and R4 that each have a resistance value of 10 kilo-ohms. Through diode D1, IC 7812 (IC1), and resistor R2, the inverting input (pin 2) of IC2 is connected to the brake switch. When the brake is applied, a larger voltage is transmitted to it. When the brake is not being applied, the normal behavior is for the output of IC2 to remain high, causing LED1 to emit a red light. Through the use of the coupling capacitor C2, the output of IC2 is connected to the trigger pin 2 of the monostable. In order to maintain the input stability of IC2, resistor R1 is utilized. A ripple-free, regulated supply is provided to the inverting input of IC2 by IC1 and C1, respectively. In order to generate a pulse with a duration of one second, IC3 has been wired as a monostable. In order to turn on the buzzer and LED2, the timing components R7 and C4 bring the output high for a period of one second. Because of R6, the trigger pin of IC3 is normally high, which means that both the buzzer and LED2 are in their "off" states. When the brake pedal is depressed, pin 2 of IC2 receives a higher voltage from the brake switch. As a result, the output of IC2 drops to a lower value, which turns off the red LED. In order to trigger the monostable, the low output of IC2 sends a brief negative pulse to it through the capacitor C2. This causes the buzzer and LED2 to light
up, indicating that the braking system is functioning properly. When there is a drop in pressure in the brake system owing to leakage, LED1 continues to show that it is "on," but the buzzer does not sound when the brakes are applied. Construction and quality assurance The circuit can be put together on any perforated board or general-purpose printed circuit board. Connect point A to the terminal of the brake switch that is responsible for the operation of the brake lights. The power source for the circuit can come from the vehicle's battery. To prevent the battery from being accidentally triggered while it is being charged by the dynamo, the circuit needs a power supply that has been carefully regulated. The circuit receives regulated 12V from IC4, C6, and C7 respectively. The ignition switch should be used as the source of power for the circuit, and the body of the vehicle should be used as the grounding point for the circuit. If desired, an LED that emits light in both red and green can be used in place of LED1 and LED2.
